Microcom 315M Thermal Kiosk Printer

High-speed kiosk printer designed for receipt style continuous roll media.Cost-effective receipt printing for the self-service world.

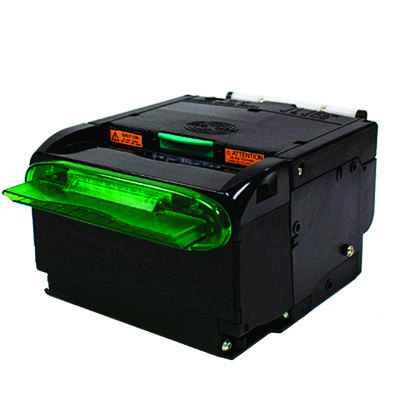

Microcom Model 315M

The model 315M is the newest offering in Microcom's line of thermal kiosk printers. This product caters to the mostcommon receipt printing applications for paper widths between 48 mm and 82.5 mm. Compact size,ease-of-use, and reliability make the 315M an easy choice for unattended kiosks.

Out of the box, the 315M offers everything you need to be successful in a receipt printing application. It is equippedwith multiple sensors to provide feedback for different paper and error conditions. A standard presenter/retractorfeature extends printer life by limiting end-user interaction with the printer until the receipt is fully printed and cut. Anoptional paper holder with low stock sensor is also available to minimize additional design efforts.

Application Overview:

• Self-Service Kiosk
• Receipt
• Gaming
• Food Service
• Healthcare
• Transportation
• Parking
• Retail

Adding to Microcom’s full line of kiosk printers is the compact model 315M. Easy to maintainand easy to integrate, the 315M provides a full-featured and reliable receipt printer at an entry level price.

Key Features include:

• Long life print head
• USB connectivity
• Industrial strength cutter
• Presenter/retractor
• Automatic paper loading
• 6” O.D. roll capacity
• 6” per second print speed

Performance Summary

• 203 dpi resolution
• Up to 6” (150 mm) per second
• Auto loading capability
• Microsoft Windows® 7, 8, 8.1, 10, Linux
• 6” (150 mm) O.D. roll capacity
• Multiple sensor options
• USB
• Looping presenter
• Retraction feature
• Industrial strength cutter
• Movable supply holder
• Self-centering and locking media guides
• Multiple mounting locations for flexible kiosk installation

Bar Codes

• Code 39
• Code 93
• Codabar
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• Code 128
• ITF
• PDF-417
• QR
• And more

Fonts

• Standard ASCII, compressed ACSII and optional Asian character sets
• All fonts expandable up to 6 times
• 0, 90, 180, and 270 degree font and bar code printing

Printing

• Direct thermal, on-demand printing
• Prints on continuous paper, marked paper
• Paper thickness: .002” -.004” (.06 mm-.1 mm)
• Paper width: 1.9” – 3.24” (48 mm-82.5 mm)

Memory

• 2MB SDRAM
• 4MB Flash

Physical Dimensions

• Height: 3.0” (76.7mm)
• Width: 4.6” (116mm)
• Depth: 5.78” (146.8mm)
• Weight: 3.3 lbs. (1.5kgs.)

Environmental Conditions

• Storage temperature: -25° F to 140° F (-25° C to 60° C); 15-98% RH
• Operation temperature: 32° F to 113° F (0° C to 45° C); 20-90% RH
• Power supply: Input 110-240VAC, 1.5A, 50/60Hz Output DC 24V, 2.5A

Compliance

• CE
• CB
• UL
• FCC

Warranty

One year limited warranty
