Full specifications (PDF)
Connectivity Technology:
Wireless

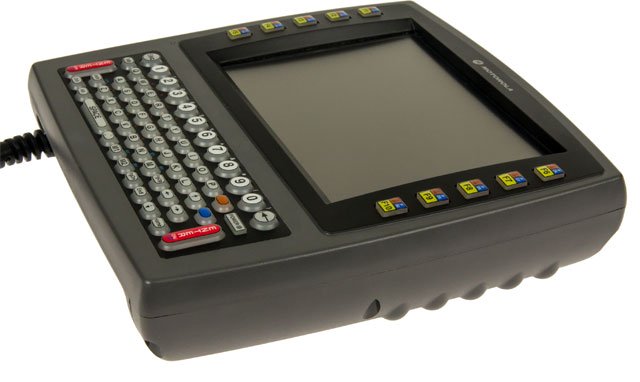

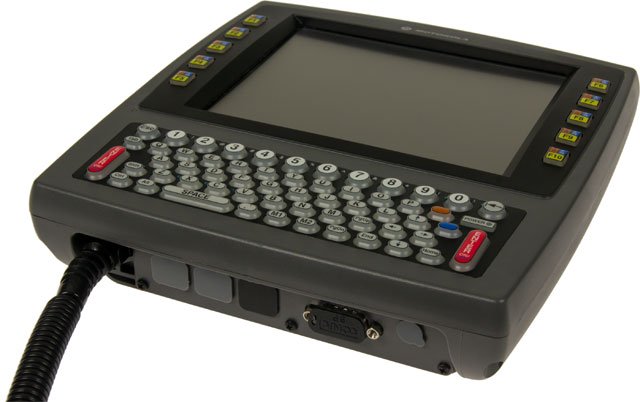

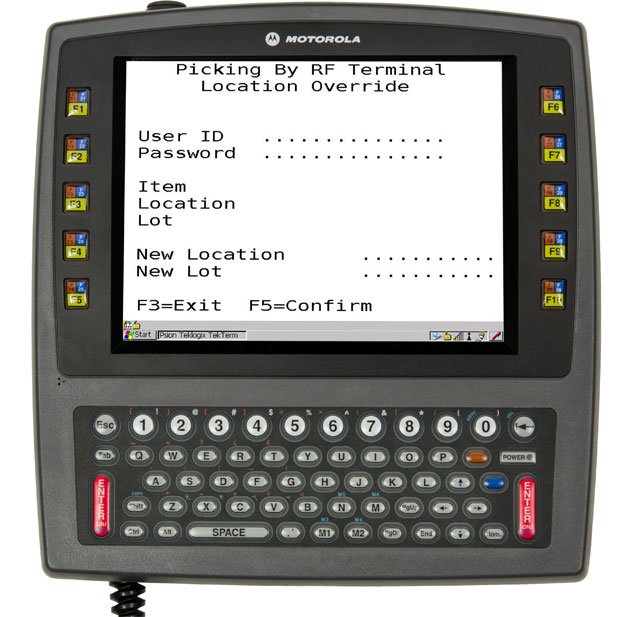

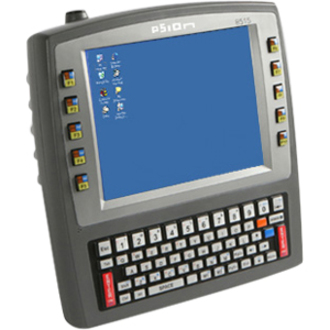

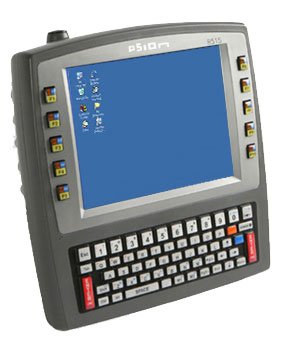

Motorola PSION 8515 Data Terminal Model Overview
Warehouses and ports. Manufacturing plants and airports. Think tight deadlines and even tighter spaces – especially on the forklifts and trucks themselves. Fixing a bulky computer to these just isn't an option. Unless it's the compact 8515. This rugged, lightweight vehicle mount computer gives you all the intelligence and connectivity you need in a very small package.
Motorola 8515110010110000 Data Terminal Overview
Compact Power
Warehouses and ports. Manufacturing plants and airports. Think tight deadlines and even tighter spaces -- especially on the forklifts and trucks themselves. Fixing a bulky computer to these just isn't an option.
Unless it's the compact 8515. This rugged, lightweight vehicle mount computer gives you all the intelligence and connectivity you need in a very small package...
Warehouses and ports. Manufacturing plants and airports. Think tight deadlines and even tighter spaces -- especially on the forklifts and trucks themselves. Fixing a bulky computer to these just isn't an option.
Unless it's the compact 8515. This rugged, lightweight vehicle mount computer gives you all the intelligence and connectivity you need in a very small package...
Technical Information
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale
Processor Speed:
312 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
4 GB
Display & Graphics
Screen Size:
6.4"
Graphics Modes:
VGA
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
640 x 480
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Interfaces/Ports
Serial:
Yes
USB:
Yes
Keyboard/Keypad
Keyboard Type:
QWERTY
Keyboard Form Factor:
Integrated
Software
Operating System:
Windows CE 5.0
Physical Characteristics
Height:
8.2"
Width:
8"
Depth:
1.8"
Weight (Approximate):
2.89 lb
Miscellaneous
Certifications & Standards:
- IP65
- IEC 60721-3-5 - Class 5M2
- NEMA 250, Method 5.9.1
- MIL-STD-810F, Method 505.4
- SAE J1255
- FCC Part 15 Subpart B, Class B, Emissions
- ICES-003 Class B
- EN 55022:1998, Class B Emissions
- EN 55024:1998 Immunity
- EN 60950-1
- UL 60950-1
- CSA 22.2 No. 60950-1
- ISO7637-1/2 Vehicle Transients
- EN 300 328
- FCC Part 15 Subpart C
- RSS 210
- EN 301 489-17
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Questions? Get Help from
a Mobile Expert!
a Mobile Expert!
The Motorola 8515110010110000 Data Terminal is also known as
8515110010110000
