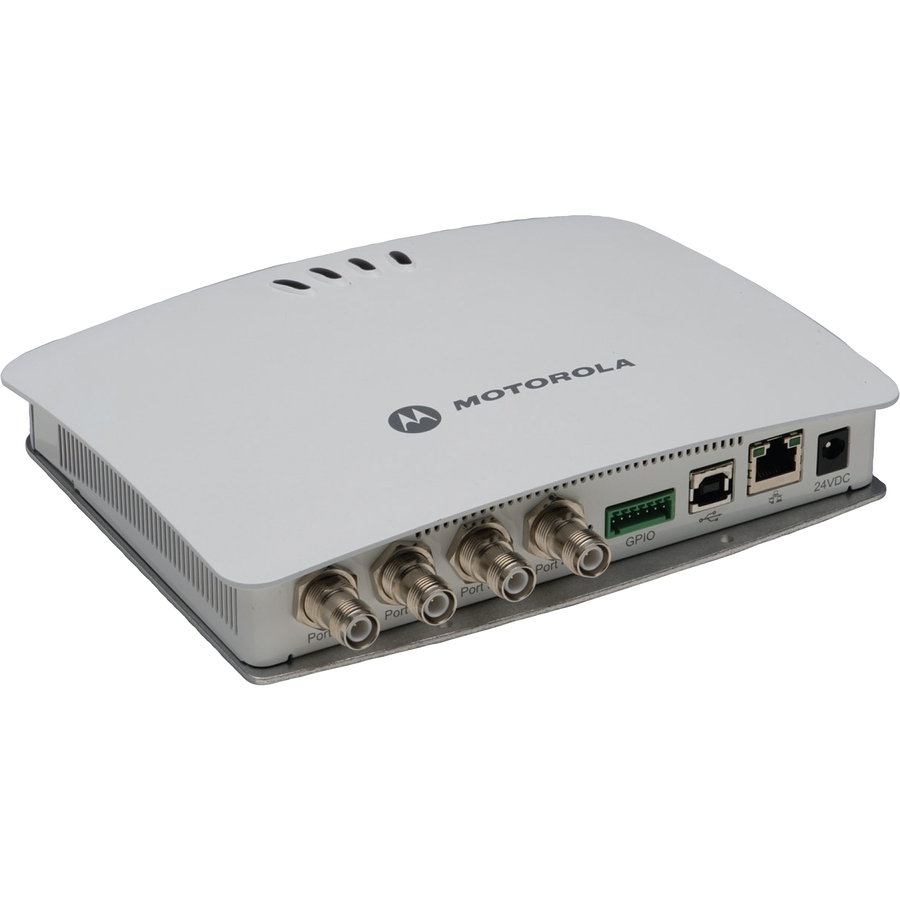

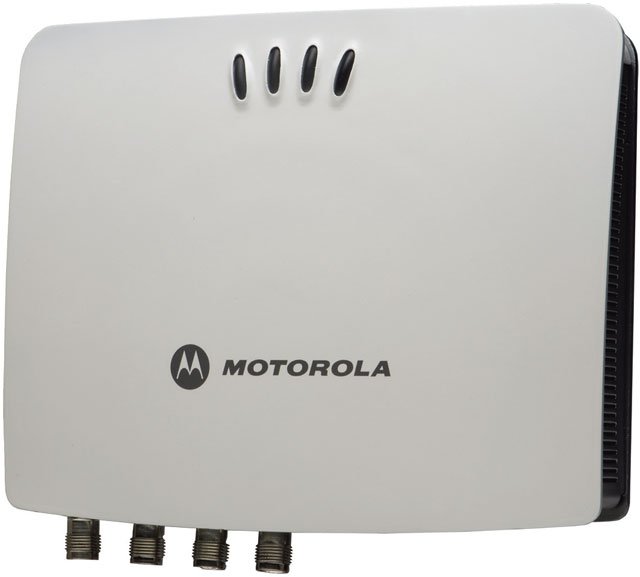

Easy to deploy, use, and manage, Motorola's high performance FX7400 series of fixed RFID readers is ideally suited for global enterprise deployments in space-constrained, customer-facing environments. It boasts a compact design married with a set of highly integrated, enterprise features including: auto-discovery and application-specific set-up for ease of installation; power over Ethernet (POE) to eliminate the need for costly power drops; and advanced features for secure data transmission. This unique combination makes the FX7400 series of RFID readers particularly well-suited for retail inventory and enterprise asset management applications in any environment where performance and a small footprint are important.
- Cast Aluminum
- Metal
- Plastic
- Humidity: 5-85% non-condensing
- Operating Temperature: -4° to +131° F/-20° to +55° C
- Frequency: 902 MHz to 928 MHz, 865 MHz to 868 MHz
- Power Output: +15dBm to +30dBm
- Power Supply: +24Vdc or POE (IEEE 802.3af)
- Firmware Upgrade: Web-based and remote firmware upgrade capabilities
- IP Addressing: Static and Dynamic
- Memory: Flash 64 MB; DraM 64 MB
- Operating System: Microsoft Windows CE 5.0
- Communications: 10/100 BaseT Ethernet (rJ45) w/ PoE support; USB Client (USB type B)
- General Purpose I/o: 2 inputs, 2 outputs, optically isolated
- Antenna Ports: 4 mono-static ports (reverse Polarity tNC)
- RoHS
- WEEE
