Network (RJ-45):
No
MultiTech Parts Accessory Model Overview
Products and parts from MultiTech.

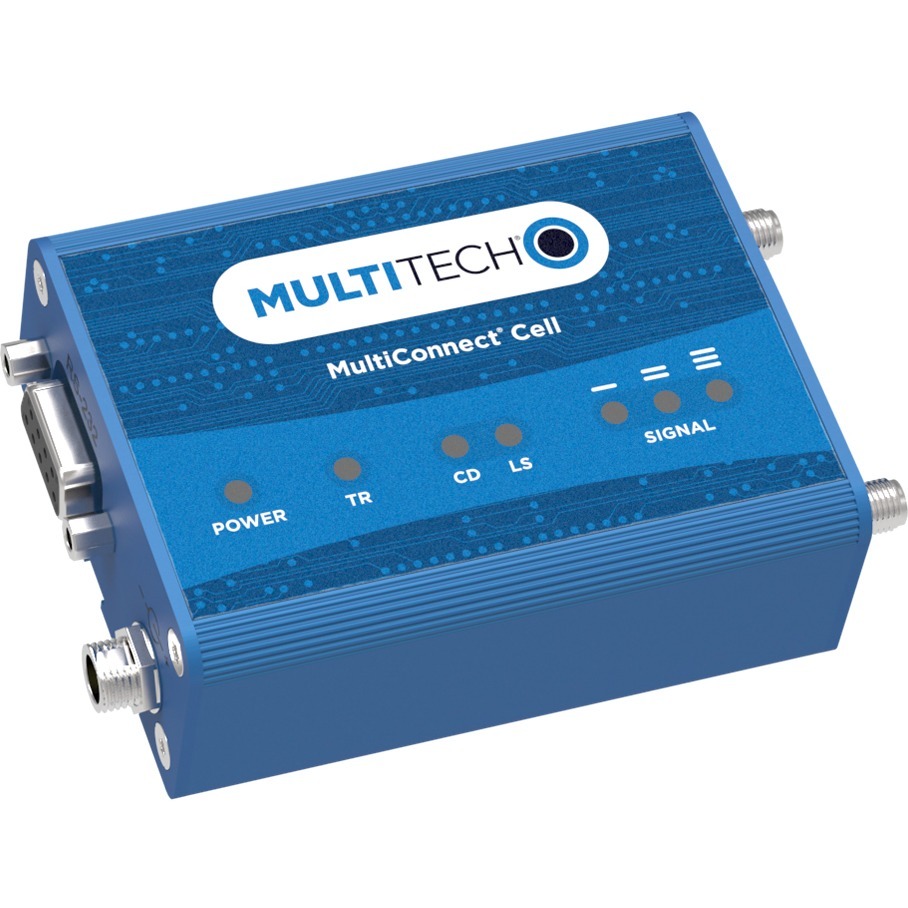

MultiTech MTC-H5-B01 Data Networking Overview
The MultiConnect® Cell 100 Series cellular modems are a part of MultiTech's comprehensive line of modems for M2M (machine-to-machine) communications. All MultiConnect Cell 100 Series modems are fully certified and carrier approved, so you can get to market extremely fast, allowing customers to start obtaining the benefits of M2M. Designed specifically for M2M applications, they provide a long, stable lifecycle and are durable, reliable and easy to deploy. In addition, the MultiConnect Cell 100 Series is available with several different interface options to cover a variety of application needs.
Interfaces/Ports
Physical Characteristics
Product Material:
Aluminum
Height:
1.2"
Width:
2.5"
Depth:
3.2"
Weight (Approximate):
10.40 oz
Miscellaneous
Additional Information:
Performance: HSPA+
Frequency Band (MHz): Hepta-band 850/900/AWS 1700/1900/2100
Packet Data:
Power Requirements
Voltage:
Frequency Band (MHz): Hepta-band 850/900/AWS 1700/1900/2100
Packet Data:
- Up to 21.0 Mbps downlink
- Up to 5.76 Mbps uplink
Power Requirements
Voltage:
- USB Models: USB powered
- RS-232 Models: 7 - 32VDC
- RF Antenna: 50 ohm SMA (female connector)
- SIM: Mini SIM; 1.8 and 3V
- USB: Type B mini
- RS-232: DE9
- Power: RS-232 Models: 2.5 mm miniature (screw-on)
- Operating Temperature: -40° to +185° F (-40° to +85° C)
- Storage Temperature: -40° to +185° F (-40° to +85° C)
- Relative Humidity: 15% to 93% noncondensing
- Regulatory Compliance: FCC Class B (US), IC (Canada), R&TTE (EU Economic Area,A-Tick (Australia/NZ), and IFT (Mexico)
- Safety: UL 60950-1 (US), cUL 60950-1 (Canada), IEC60950-1 (EU Economic Area), AS/NZS 60950-1 (Australia/NZ)
- Network: PTCRB, GCF approved module, AT&T, T-Mobile, Rogers, Bell, EU carriers Pending: Telus, Telstra
- Quality:
- MIL-STD-810: High Temp, Low Temp, Cold Dwell, Random Vibration and Sine Vibration
- SAE J1455: Random Vibration and Sine Vibration
Item Numbers
GTIN:
0789407356797
UPC:
789407356797
EAN:
0789407356797
UNSPSC:
43222628
Get help from a Barcoding Expert!
The MultiTech MTC-H5-B01 Data Networking is also known as
MLT-MTCH5B01
