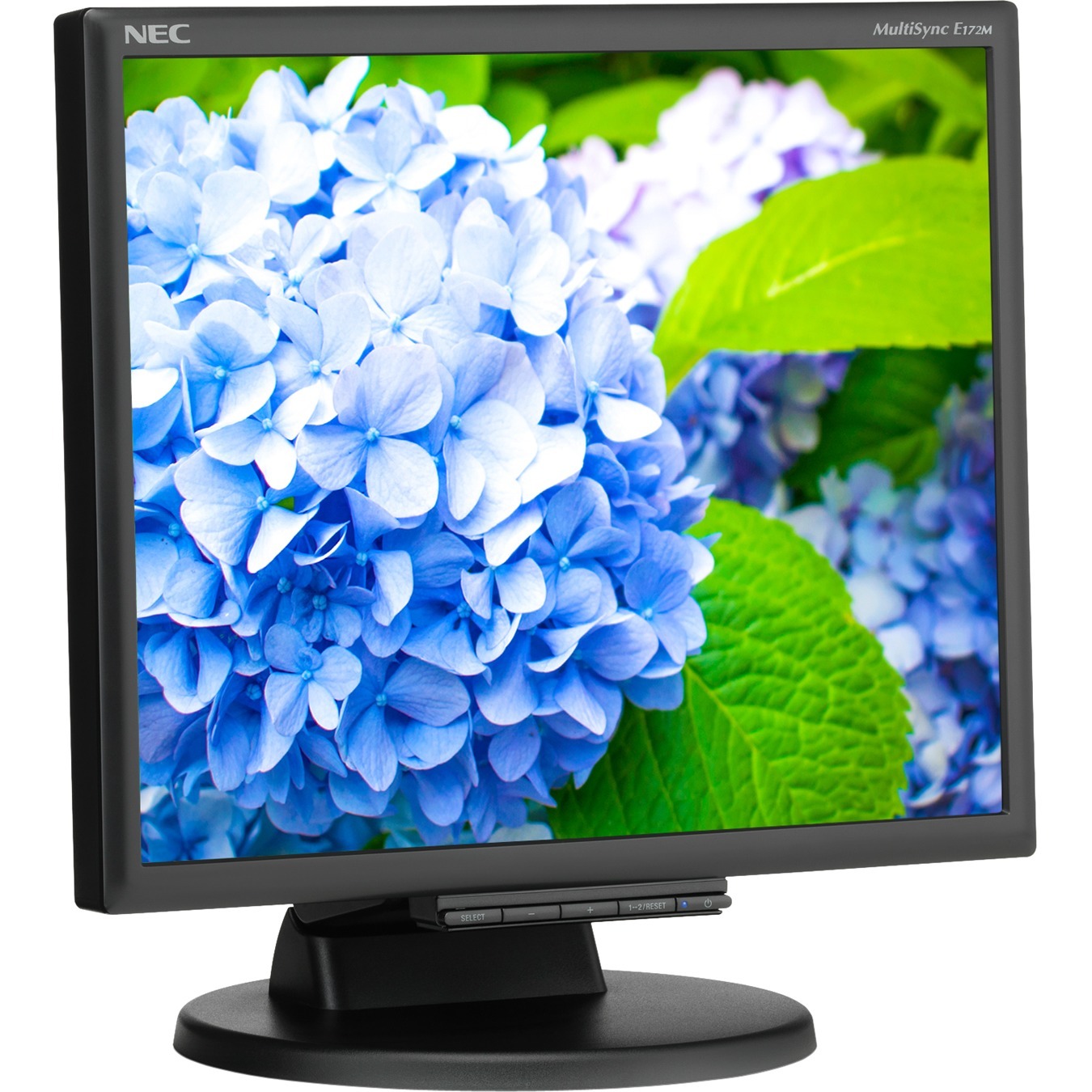

NEC E172M-BK Monitor

NEC - NEC Display E172M-BK 17" SXGA LED LCD Monitor - 5:4 - Black - Twisted nematic (TN) - 1280 x 1024 - 16.7 Million Colors - 250 Nit Typical - 5.50 ms - 75 Hz Refresh Rate - DVI - HDMI - VGA - DisplayPort

LED backlight technology provides for industry-leading low power consumption and less hazardous materials
Height-adjust, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
Full connectivity, including DisplayPort, HDMI and VGA inputs
Integrated speakers and headphone jack bring additional usability
ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
ENERGY STAR 8.0 and TCO 8.0
NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

Need a different version? See all NEC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$276.63

Overview

NEC Parts Accessory Model Overview

Products and parts from NEC.

NEC E172M-BK Monitor Overview

Boost your productivity while being environmentally friendly with the 17" NEC MultiSync E172M, an eco-conscious LED backlit LCD desktop monitor that enhances your computing experience. The LED backlighting of the E172M allows for lighter weight and increased power savings compared to previous generation models, a carbon footprint meter for tracking the conservation of green gas emissions and Intelligent Power Manager (IPM) system. These advantages, combined with an ergonomic design make this model ideal for corporate environments.

1080p native resolution (1920x1080)

High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.

LED Backlight

Provides for industry-leading low power consumption and less hazardous materials.

No Touch Auto Adjust™

Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.

XtraView®

Delivers wide viewing angles of up to 176º horizontally and vertically (up to 88º up, down, left and right) without any glare, reflection or distortion.

Ambix®

Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.

Detailed Specs

Technical Information

Number of Screens:

Screen Size Class:

17"

Viewable Screen Size:

17"

Screen Mode:

SXGA

Panel Technology:

Twisted nematic (TN)

Response Time:

5.50 ms

Aspect Ratio:

5:4

Pixel Pitch:

10.2 mil

Mount Type:

Desk Mountable

Backlight Technology:

LED

HDCP Supported:

Yes

Horizontal Frequency:

31.50 kHz to 81 kHz - Analog/Digital

Vertical Frequency:

50 Hz to 75 Hz

Stand Adjustments:

Tilt
Height
Swivel

Adjustable Stand Height:

Yes

Video

Maximum Resolution:

1280 x 1024

Standard Refresh Rate:

75 Hz

Color Supported:

16.7 Million Colors

Native Contrast Ratio:

1,000:1

Brightness:

250 Nit

Color Gamut:

76.1% Adobe RGB
72.7% NTSC
102.7% sRGB

Audio

Speakers:

Yes

Interfaces/Ports

DVI:

Yes

HDMI:

Yes

VGA:

Yes

DisplayPort:

Yes

Power Description

Operating Power Consumption:

12 W

Standby Power Consumption:

250 mW

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color:

Black

Height:

12.6"

Width:

14.5"

Depth:

2.4"

Height with Stand:

16.08"

Width with Stand:

14.49"

Depth with Stand:

9.06"

Weight (Approximate):

6.17 lb

Weight with Stand (Approximate):

8.82 lb

Miscellaneous

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

TCO 8.0
ENERGY STAR 8.0
RoHS

Country of Origin:

China

TCO Certified:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0805736072433

UPC: 805736072433

EAN: 0805736072433

UNSPSC: 43211902
