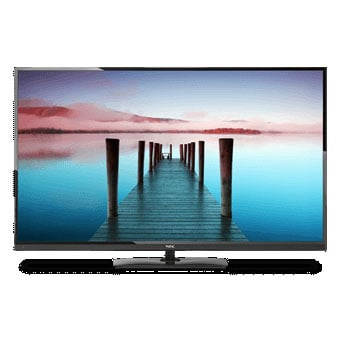

NEC E505 Digital Signage Display

The NEC E505 Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

NEC E-Series - NEC Display 50" LED Backlit Display with Integrated Tuner - 50" LCD - 1920 x 1080 - Direct LED - 300 Nit - HDMI - USB - Serial

Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
50" Signage Display - Designed for unwavering quality and dazzling picture clarity
Experience luminescent visual images with LCD display
Features full 1920 x 1080 HD resolution enabling sharp and clear images
Direct LED backlighting technology enabled for a bright and sharp display
Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images

Need a different version? See all NEC E-Series Digital Signage Displays

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

NEC E-Series Digital Signage Display Model Overview

The NEC E-Series goes above and beyond what youve come to know as a traditional display design. With an LED edge-lit backlighting source that contributes to a reduced depth and lighter weight, these displays are mere slivers of the previous generation of displays. These benefits also make this fourth generation of E Series displays easy to transport and install.

NEC E505 Digital Signage Display Overview

The 50" NEC E505, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content, and the E505's integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

Detailed Specs

Full specifications (PDF)

Technical Information

Features:

TV Tuner
Media Player
Landscape Capable
Sleep Timer
Closed Caption
Parental Control
Open Pluggable Specification (OPS)

Display & Graphics

Screen Size:

50"

Display Screen Type:

LCD

Display Resolution:

1920 x 1080

Response Time:

8.50 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

Direct LED


Image Formats:

JPEG

Audio

Number of Speakers:

Speakers:

Yes

RMS Output Power:

20 W

Video

Scan Format:

1080p

Standard Refresh Rate:

60 Hz

Native Contrast Ratio:

5,000:1

Brightness:

300 Nit

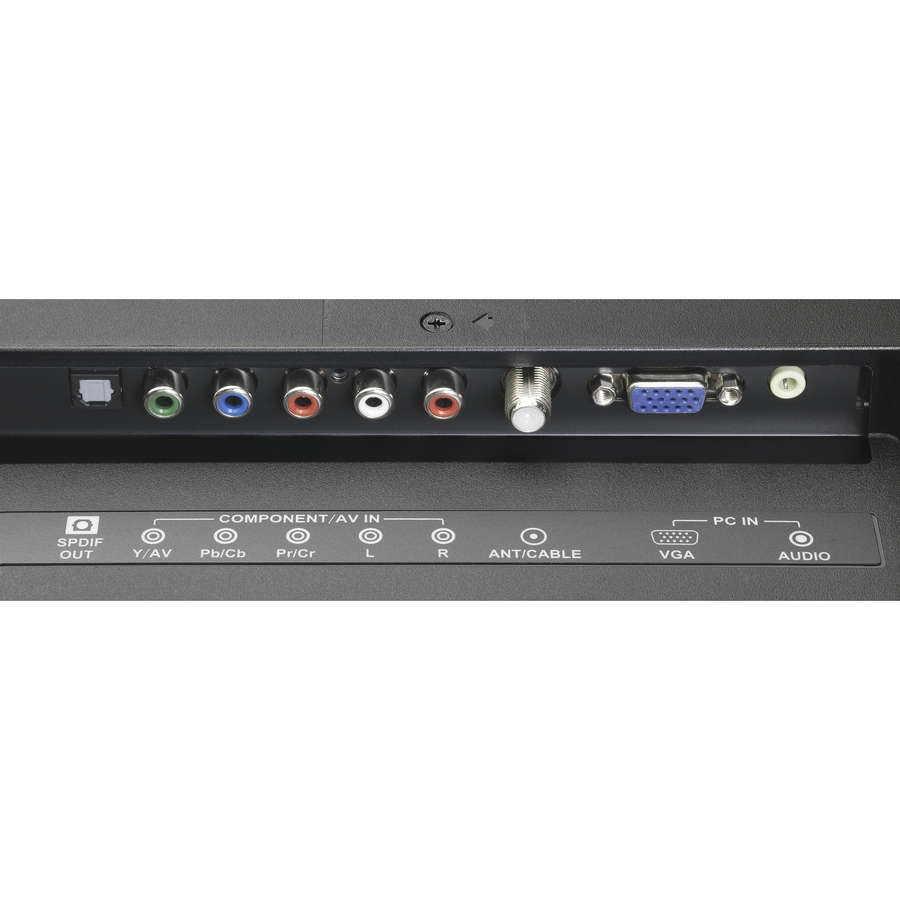

Interfaces/Ports

USB:

Yes

VGA:

Yes

HDMI:

Yes

Component Video:

Yes

Composite Video:

Yes

Audio Line In:

Yes

Serial:

Yes

Power Description

Input Voltage:

120 V AC

Power Consumption:

122 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

400 x 200

Height:

25.5"

Width:

44.2"

Depth:

Weight (Approximate):

27.70 lb

Miscellaneous

Package Contents:

50" LED Backlit Display with Integrated Tuner
Power cord
VGA cable (Mini 15-pin D-sub)
Wireless remote control
Batteries
CD-ROM (user manual)

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0050375006688, 0805736054835

UPC: 050375006688, 805736054835

EAN: 0050375006688, 0805736054835

UNSPSC: 43211902
