NEC EX341R Monitor

The NEC EX341R Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

NEC - MULTISYNC EX341R, 34" CURVE LED BACKLIT LCD MONITOR, SVA, 3440X1400, 1800R CURV., HDMI 2.0/ HDMI 1.4,IN/ OUT INPUTS, USB 3.0 HUB W/ DISPLAY SYNC PRO, NAVISET, INT SPKR, WH CABINET, 3 YR WARR, BUILD ORDER (8 WKS LT)

1800R curved SVA screen with small bezels on all four sides (1.55mm each)
Touch-sensitive on screen menu controls for easy navigation making display adjustments easier than ever
DisplayPort 1.2 in and out in supports both single stream transport (SST) or multi-stream transport (SST) for convenient multi-monitor connectivity
Ergonomic stand includes height adjustment, rotation and tilt
Smart sensor technology including human and ambient light sensor that automatically adjust to your working conditions

Need a different version? See all NEC Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

NEC Parts Accessory Model Overview

Products and parts from NEC.

NEC EX341R Monitor Overview

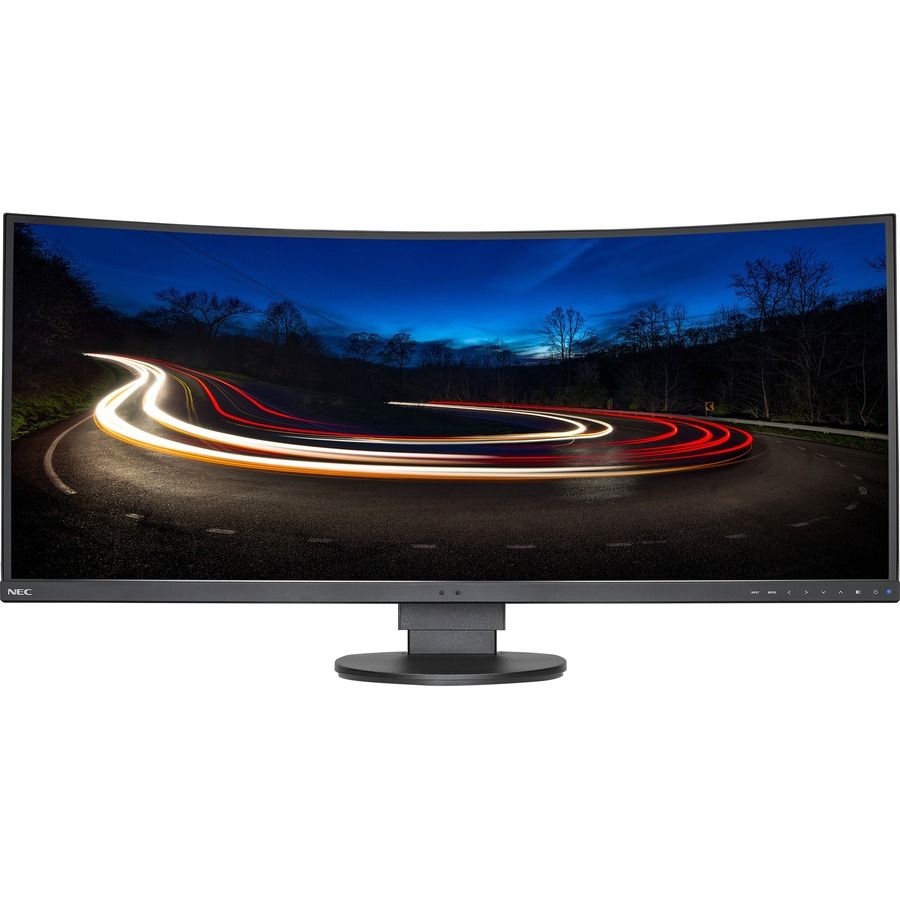

The 34" NEC MultiSync EX341R is an 1800R curved SVA desktop monitor with 3-sided ultra-narrow bezels designed to provide a seamless, immersive workspace. This slim, ultrawide model features SVA panel technology with wide viewing angles (178° horizontal/vertical) ,ergonomic adjustability and 1.55mm bezels around three sides of the display. It features a touch controls for and on-screen display (OSD) indicators for easy adjustment of key settings and the included ControlSync ™ technology allows users to control the settings for up to 25 MultiSync EA or EX Series displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Its comprehensive input panel includes HDMI 2.0, HDMI 1.4, and DisplayPort 1.2 for connecting to the latest display sources. The 4-port USB 3.0 hub also includes NEC's unique DisplaySync Pro ™ technology, which allows two computers to be controlled with one keyboard and mouse.

1800R curved SVA panel creates an immersive desktop experience
LED backlight technology provides for industry-leading low power consumption and less hazardous materials

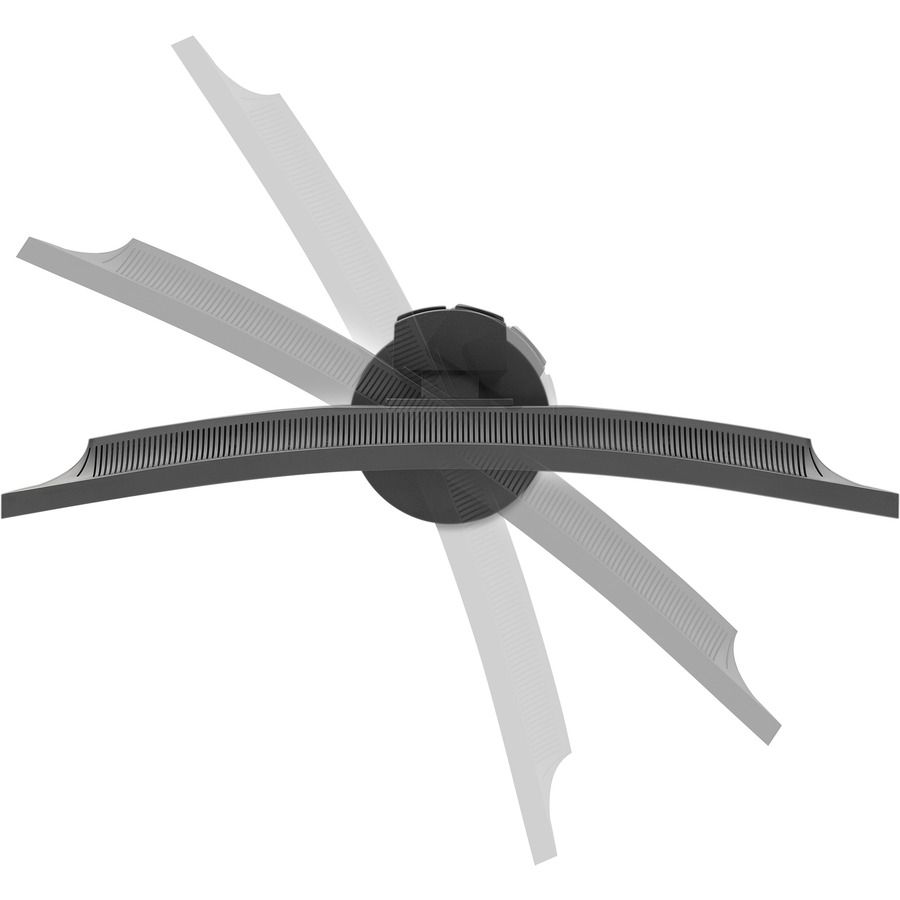

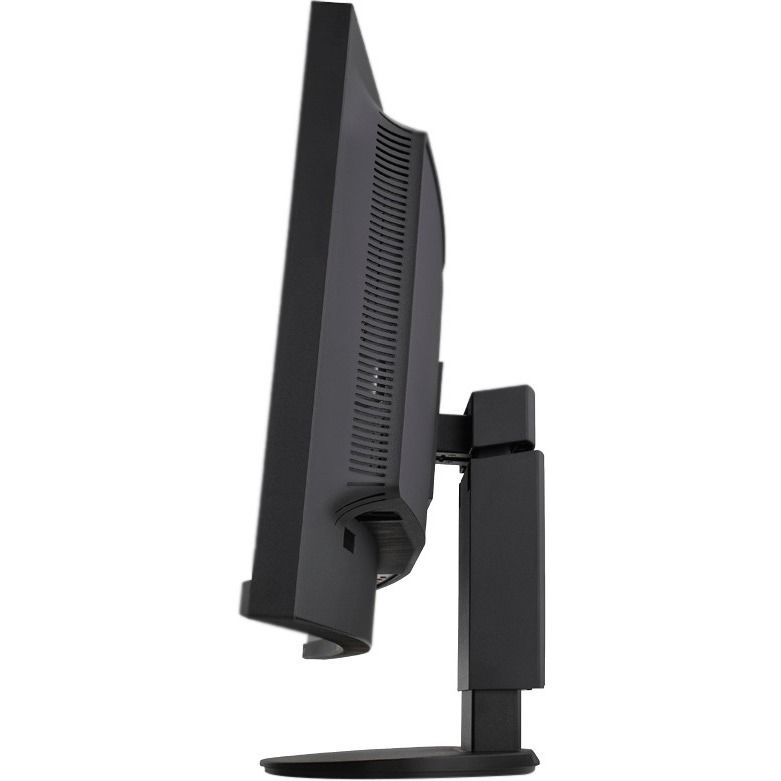

Height-adjust, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
Full connectivity, including DisplayPort 1.2, HDMI 2.0 and 1.4 inputs
Touch controls for the on screen display makes display adjustments simple
Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, conserving power
ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Compatible with SpectraViewII calibration software and the SVII-EA-KITcalibration kit.

Detailed Specs

Technical Information

Number of Screens:

Screen Size Class:

34"

Viewable Screen Size:

34"

Screen Mode:

Double Full HD (DFHD)

Response Time:

5 ms

Aspect Ratio:

21:9

Pixel Pitch:

9.1 mil

Backlight Technology:

WLED

Horizontal Frequency:

31.50 kHz to 95 kHz

Vertical Frequency:

29.50 Hz to 75 Hz

Curved Screen:

Yes

Video

Maximum Resolution:

3440 x 1440

Color Supported:

16.7 Million Colors

Native Contrast Ratio:

3,000:1

Brightness:

290 Nit

Color Gamut:

77.5% NTSC
99.5% sRGB

Audio

Speakers:

Yes

Interfaces/Ports

HDMI:

Yes

USB:

Yes

DisplayPort:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Operating Power Consumption:

62 W

Standby Power Consumption:

290 mW

Energy Consumption per Year:

43 kWh

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color:

Black

Height:

14.3"

Width:

31.8"

Depth:

4.1"

Height with Stand:

21.60"

Width with Stand:

31.80"

Depth with Stand:

9.10"

Weight (Approximate):

16.80 lb

Weight with Stand (Approximate):

23.60 lb

Miscellaneous

Package Contents:

34" 21:9 Ultrawide Monitor with 3-Sided Ultra-Narrow Bezel And SVA Panel
Setup Sheet
User Manual
Power Cord
DisplayPort Cable
USB Cable
ControlSync Cable

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

TCO Certified Displays 7.0
ENERGY STAR 7.0
RoHS

TCO Certified:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0805736068917

UPC: 805736068917

EAN: 0805736068917

UNSPSC: 43211902
