Bezel Width (Bottom):
0.61"
Bezel Width (Top):
0.47"
Bezel Width (Left):
0.49"
Bezel Width (Right):
0.49"
NEC Parts Accessory Model Overview
Products and parts from NEC.

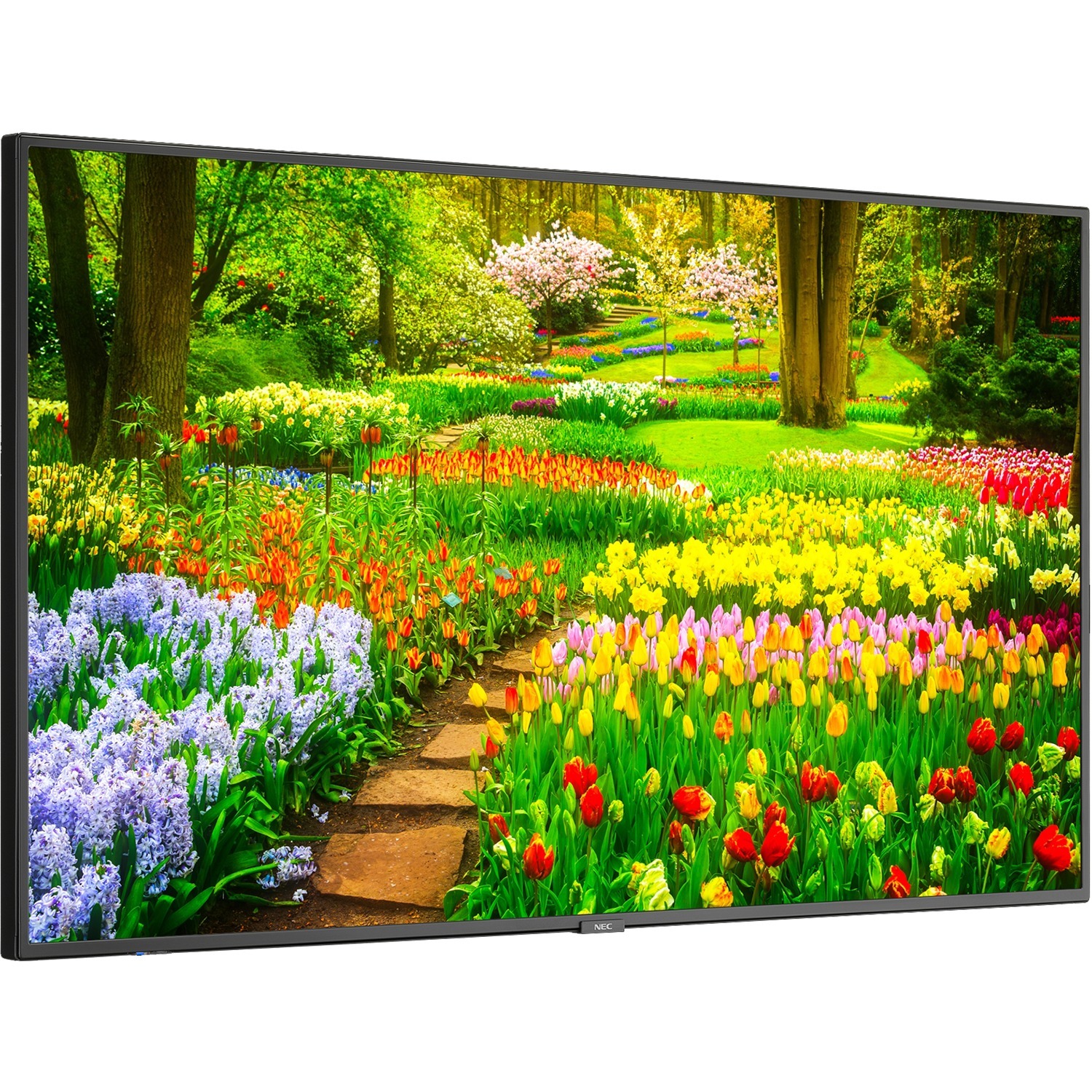

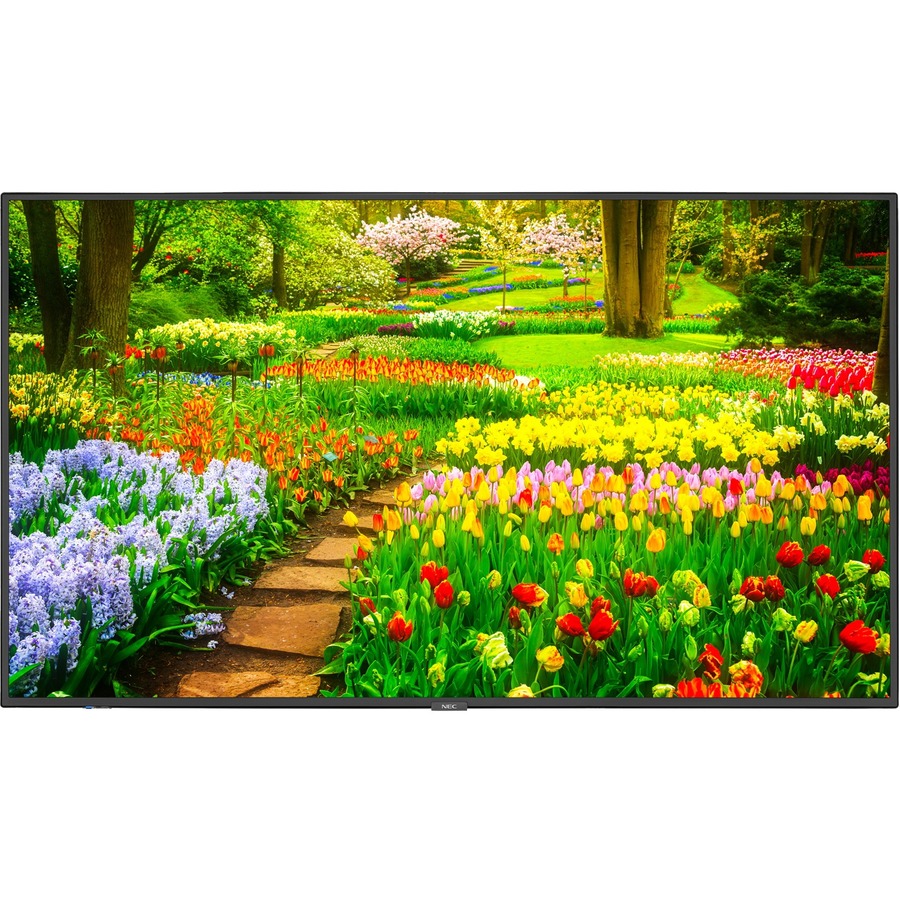

NEC M491-AVT3 Monitor Overview
Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Integrated DS1-TM01 ASTC/NTSC Tuner in SDM-S Slot
- Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support (Q2 2021)
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
- Integrated Media Player allows for audio, video or image playback via USB
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Integrated Ambient Light Sensor allows the display to autmatically adjust its luminance based on external brightness conditions
- Energy Star 8.0 Certified Product
- Full 3 year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
- Cisco Certified Display
Technical Information
Display & Graphics
Screen Size:
49"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
High Dynamic Range (HDR):
Yes
High Dynamic Range (HDR) Type:
HDR10
Pixel Pitch:
11 mil
Backlight Technology:
Edge LED
Video
Scan Format:
2160p
Color Depth:
8-bit+FRC
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
1
Number of HDMI Inputs:
2
Number of DisplayPorts:
1
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
VESA Mount Standard:
300 x 300
Mount Type:
- Wall Mountable
- Table Mount
Height:
25.1"
Width:
43.4"
Depth:
2.4"
Weight (Approximate):
48.10 lb
Miscellaneous
Package Contents:
- 49" Ultra High Definition Professional Display with Integrated ATSC/NTSC Tuner
- 3m Power cord
- 2.0m HDMI cable
- Wireless remote control
- Batteries
- Setup Guide
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR 8.0
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0805736075175
UPC:
805736075175
EAN:
0805736075175
UNSPSC:
43211902
