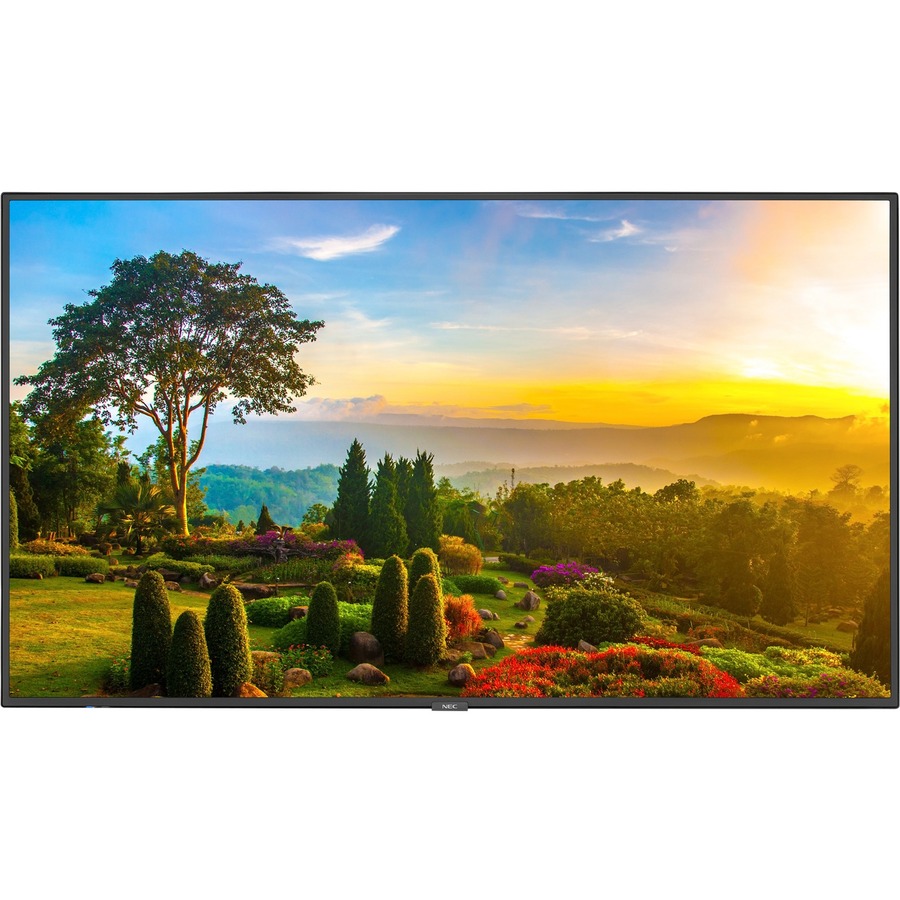

NEC M551-PC5 Monitor

The NEC M551-PC5 Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
NEC M551  -  Monitors, NEC M551, 55'''' LED LCD Public Display Monitor with Built-In Intel PC, 3840 X 2160 (UHD), 24/7, 500 CD/M2, Landscape/Portrait, HDMI In X2, DisplayPort In, Audio Mini-Jack Out, Full Bidirectional Control Through RS-232C Serial and Ethernet
  • 55" Signage Display - Designed for unwavering quality and dazzling picture clarity
  • Experience luminescent visual images with LCD display
  • 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
  • Direct LED backlighting technology enabled for a bright and sharp display
  • Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images
Read More
Add to Quote
NEC Parts Accessory Model Overview
Products and parts from NEC.
NEC M551-PC5 Monitor Overview

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also containing a Coffee Lake Intel Celeron Windows 10 IoT Enterprise PC through the SDM-VICW-IS seamlessly integrated into the SDM-L slot on the side of the display. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Integrated Coffee Lake Intel Celeron, Windows 10 IoT PC with the SDM-VICW-IS included in the SDM-L Slot
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
  • Integrated Media Player allows for audio, video or image playback via USB
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Integrated Ambient Light Sensor allows the display to autmatically adjust its luminance based on external brightness conditions
  • Energy Star 8.0 Certified Product
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Technical Information
Bezel Width (Bottom):
0.61"
Bezel Width (Top):
0.47"
Bezel Width (Left):
0.49"
Bezel Width (Right):
0.49"
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Celeron
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
High Dynamic Range (HDR):
Yes
High Dynamic Range (HDR) Type:
HDR10
Pixel Pitch:
12.6 mil
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Color Depth:
8-bit+FRC
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of HDMI Inputs:
2
Number of DisplayPorts:
1
Software
Operating System:
Windows 10 IoT Enterprise
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
VESA Mount Standard:
300 x 300
Mount Type:
  • Wall Mountable
  • Table Mount
Height:
28.1"
Width:
48.8"
Depth:
2.4"
Weight (Approximate):
58.20 lb
Miscellaneous
Package Contents:
  • 55" Ultra High Definition Professional Display with Built-In Intel PC
  • 3m Power cord
  • 2.0m HDMI cable
  • Wireless remote control
  • Batteries
  • Intel Celeron Coffee Lake Windows 10 IoT PC (SDM-VICW-IS - Integrated)
  • Setup Guide
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR 8.0
Country of Origin:
China
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0805736075939
UPC: 805736075939
EAN: 0805736075939
