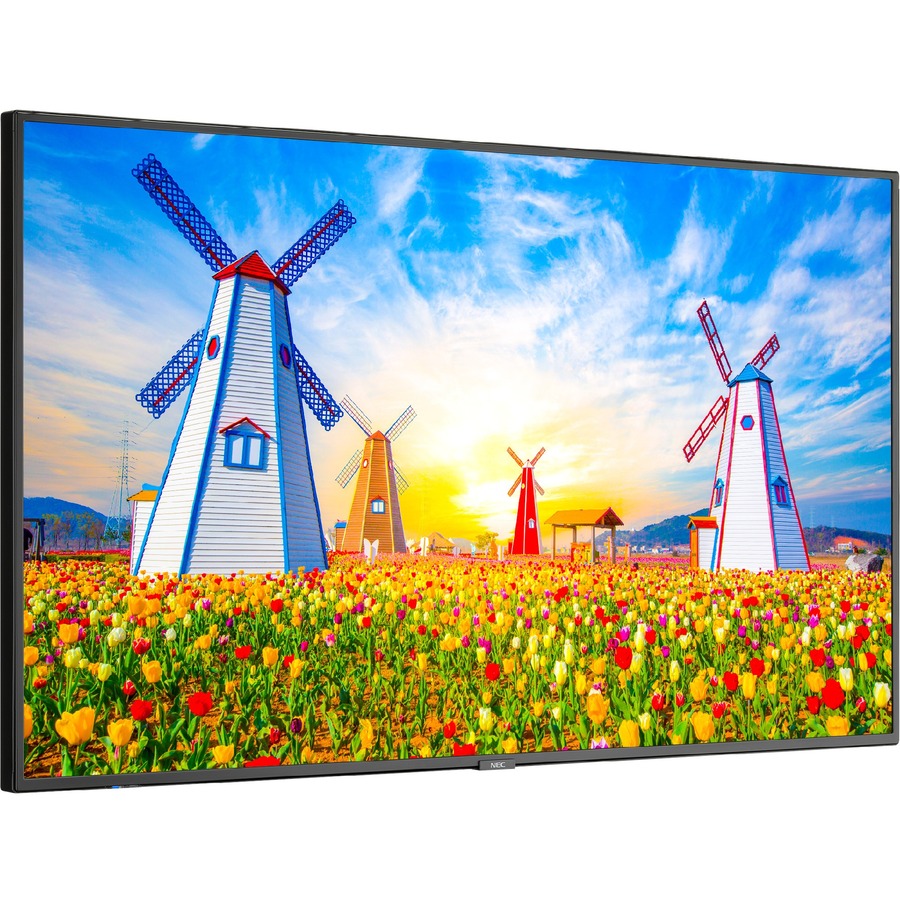

NEC M651-MPI4E Monitor

The NEC M651-MPI4E Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
NEC M651  -  Monitors, NEC M651, 65'''' LED LCD Public Display Monitor, Integrated SoC MediaPlayer with CMS platform, 3840 X 2160 (UHD), 24/7, 500 CD/M2, Landscape/Portrait, HDMI In X2, DisplayPort In, Audio Mini-Jack Out, Full Bidirectional Control Through RS-232C Serial and Ethernet
  • Experience luminescent visual images with LCD display
  • 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
  • Edge LED backlight technology offers elegant low profile frame and transmits light from sides to generate a brighter content
  • Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images
Read More
Add to Quote
NEC Parts Accessory Model Overview
Products and parts from NEC.
NEC M651-MPI4E Monitor Overview

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also containing the integrated NEC MediaPlayer via the Raspberry Pi Compute Module 4 that allows for seamless playback through System on a Chip capabilities. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Integrated Raspberry Pi Compute Module 4 allows for future proof expansion and NEC MediaPlayer support through the included MPi4E
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
  • Integrated Media Player allows for audio, video or image playback via USB
  • Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Integrated Ambient Light Sensor allows the display to autmatically adjust its luminance based on external brightness conditions
  • Energy Star 8.0 Certified Product
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Technical Information
Bezel Width (Bottom):
0.61"
Bezel Width (Top):
0.47"
Bezel Width (Left):
0.49"
Bezel Width (Right):
0.49"
Display & Graphics
Screen Size:
65"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
High Dynamic Range (HDR):
Yes
High Dynamic Range (HDR) Type:
HDR10
Pixel Pitch:
14.6 mil
Backlight Technology:
Edge LED
Video
Scan Format:
2160p
Color Depth:
8-bit+FRC
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of HDMI Inputs:
2
Number of DisplayPorts:
1
Physical Characteristics
VESA Mount Standard:
400 x 400
Mount Type:
  • Wall Mountable
  • Table Mount
Height:
32.9"
Width:
57.4"
Depth:
2.5"
Weight (Approximate):
81.79 lb
Miscellaneous
Package Contents:
  • MultiSync M651-MPI4E Digital Signage Display/Appliance
  • Power Cord (3m)
  • HDMI Cable (2.0m)
  • Wireless Remote Control
  • Batteries
  • Raspberry Pi Compute Module 4 NEC MediaPlayer (MPi4E - Integrated)
  • Setup Guide
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • ENERGY STAR 8.0
  • CEC
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
