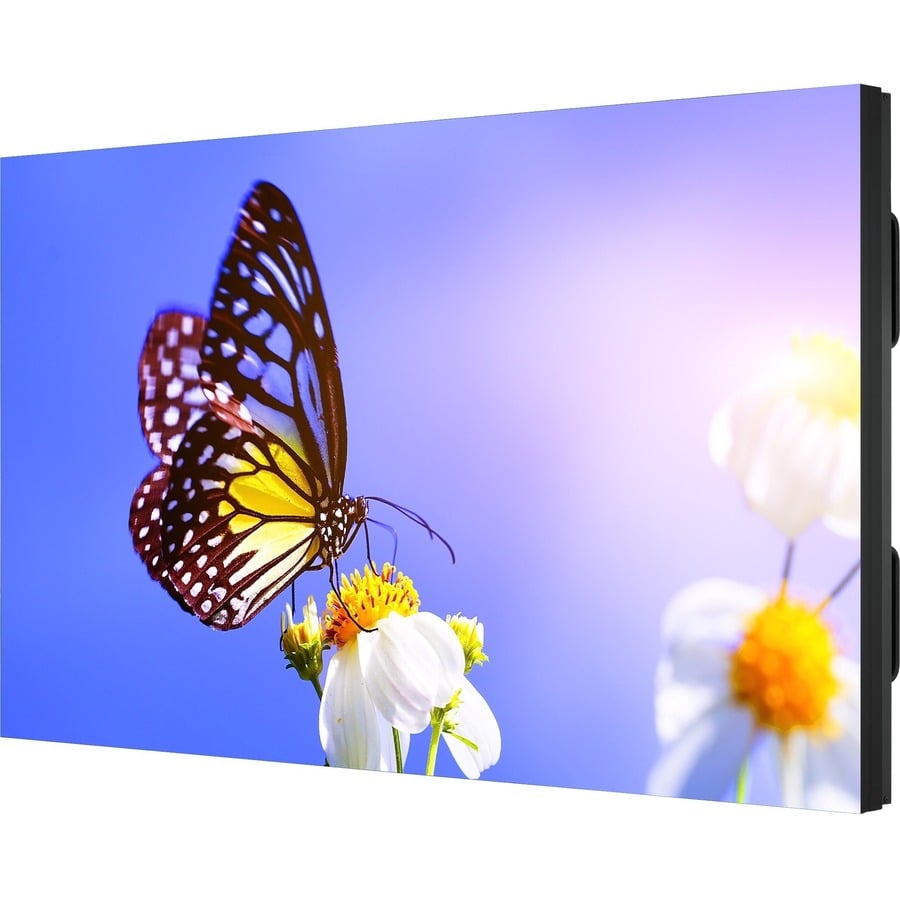

NEC UN552V-TMX4P Monitor

NEC  -  55" LED BACKLIT 0.88MM ULTRA-NARROW BEZEL 2X2 VIDEO WALL BUNDLE
  • Digital Signage Display - Ideal for rack, passageway, booth or display counter
  • Experience luminescent visual images with LCD display
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
  • Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
  • Direct LED lighting offers a brighter picture result
  • 55" Signage Display - Designed for unwavering quality and dazzling picture clarity
Read More

Need a different version? See all NEC Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$22,230.38
NEC UN552V-TMX4P Monitor
NEC UN552V-TMX4P Monitor
NEC UN552V-TMX4P Monitor NEC UN552V-TMX4P Monitor
NEC Parts Accessory Model Overview
Products and parts from NEC.
NEC UN552V-TMX4P Monitor Overview

NEC's complete 55" 2x2 LCD TileMatrix™ Digital Video Wall Solution delivers an 110" all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552V and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.

  • Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy
  • Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
  • SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
  • 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
  • New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
  • Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
  • NEC Display Wall Calibrator, MultiProfiler, and NaViSet Administrator 2 software compatible.
Technical Information
Video Wall Compatible:
Yes
Bezel Width (Bottom):
50 mil
Bezel Width (Top):
90 mil
Bezel Width (Left):
90 mil
Bezel Width (Right):
50 mil
Display & Graphics
Number of Screens:
1
Video Wall Configuration:
2x2
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Pixel Pitch:
19.7 mil
Backlight Technology:
Direct LED
Video
Scan Format:
1080p
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
DVI:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of HDMI Inputs:
2
Number of HDMI Outputs:
1
Number of DisplayPorts:
3
Number of DVI Ports:
1
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
VESA Mount Standard:
400 x 400
Mount Type:
Table Mount
Height:
27"
Width:
47.8"
Depth:
4.1"
Weight (Approximate):
61.90 lb
Miscellaneous
Package Contents:
  • 55" Ultra-Narrow Bezel 4 Display Video Wall
  • 3.0m Power cord
  • 2.0m DisplayPort cable
  • 2.0m HDMI cable
  • LAN cable
  • SD Card Cover
  • Clamp for Power Cable
  • Setup Manual
  • Contents Sheet
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0805736072228
UPC: 805736072228
EAN: 0805736072228
UNSPSC: 43211902
