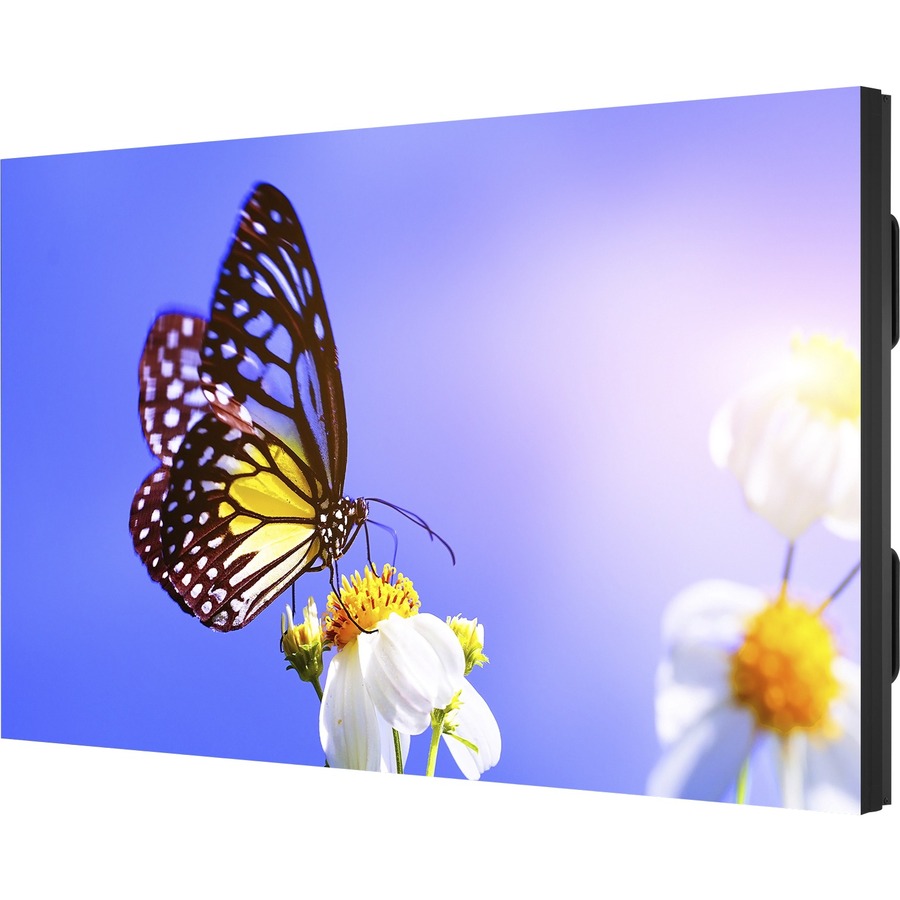

NEC UN552V-TMX9P Digital Signage Display

NEC - QTY 9-UN552V BUNDLED W/ 9 ONSTEMN-3Y-15, QTY 9-3M DP CABLES, 25FT CAT5E PATCH CABLE, ADJUSTABLE MOUNTING, LANDSCAPE / PORTRAIT, SURGEX PWR CONDITIONER, OVERFRAME BEZEL KIT, KT-LFD-CC2 COLOR CALIB KIT, IR/REMOTE KIT

Digital Signage Display offers maximum video signage efficiency with added usability
Experience luminescent visual images with LCD display
Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
Direct LED backlighting technology enabled for a bright and sharp display
55" NEC Display Signage Display - Ideal for showing different types of advertisements and content

Need a different version? See all NEC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$50,027.74

NEC UN552V-TMX9P Digital Signage Display

Overview

NEC Parts Accessory Model Overview

Products and parts from NEC.

NEC UN552V-TMX9P Digital Signage Display Overview

NEC's complete 55" 3x3 LCD TileMatrix™ Digital Video Wall Solution delivers an 165" all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552V and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.

Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
NEC Display Wall Calibrator, MultiProfiler, and NaViSet Administrator 2 software compatible.

Detailed Specs

Technical Information

Video Wall Compatible:

Yes

Bezel Width (Bottom):

50 mil

Bezel Width (Top):

90 mil

Bezel Width (Left):

90 mil

Bezel Width (Right):

50 mil

Display & Graphics

Number of Screens:

Video Wall Configuration:

3x3

Screen Size:

55"

Display Screen Type:

LCD

Display Resolution:

1920 x 1080

High Dynamic Range (HDR):

Yes

Pixel Pitch:

19.7 mil

Backlight Technology:

Direct LED

Video

Scan Format:

1080p

Brightness:

500 Nit

Network & Communication

Ethernet:

Yes

Interfaces/Ports

USB:

Yes

DVI:

Yes

HDMI:

Yes

DisplayPort:

Yes

Serial:

Yes

Number of HDMI Inputs:

Number of DisplayPorts:

Power Description

Input Voltage:

120 V AC
230 V AC

Physical Characteristics

VESA Mount Standard:

400 x 400

Mount Type:

Panel Mount
Wall Mountable

Height:

26.9"

Width:

47.8"

Depth:

4.1"

Weight (Approximate):

61.90 lb

Miscellaneous

Package Contents:

55" Ultra-Narrow Bezel 9 Display Video Wall
3.0m Power cord
2.0m DisplayPort cable
2.0m HDMI cable
LAN cable
SD Card Cover
Clamp for Power Cable
Setup Manual
Contents Sheet

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0805736072235

UPC: 805736072235

EAN: 0805736072235

UNSPSC: 43211902
