NEC V864Q Monitor

The NEC V864Q Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

NEC - NEC Display 86" Ultra High Definition Professional Display - 86" LCD - 3840 x 2160 - Edge LED - 500 Nit - 2160p - HDMI - USB - SerialEthernet - Black

With its 86" screen size and 500 Nit brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses
Experience luminescent visual images with LCD display
3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
Edge LED backlight technology offers elegant low profile frame and transmits light from sides to generate a brighter content
Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images

Need a different version? See all NEC Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

NEC Parts Accessory Model Overview

Products and parts from NEC.

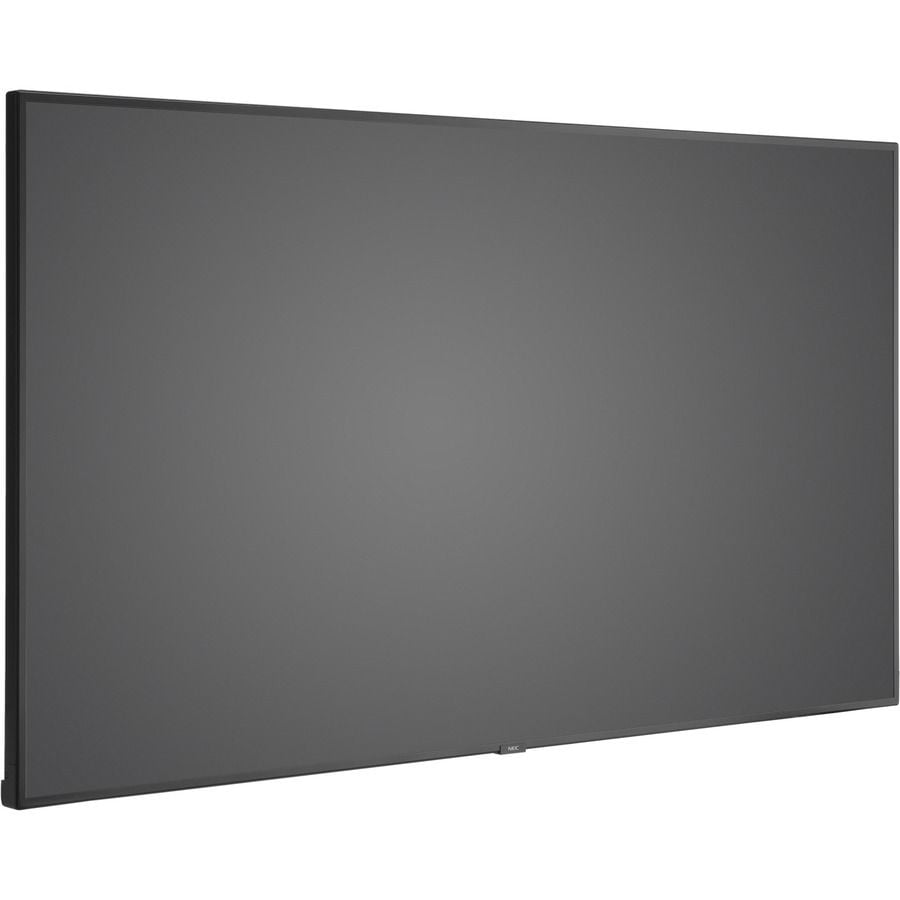

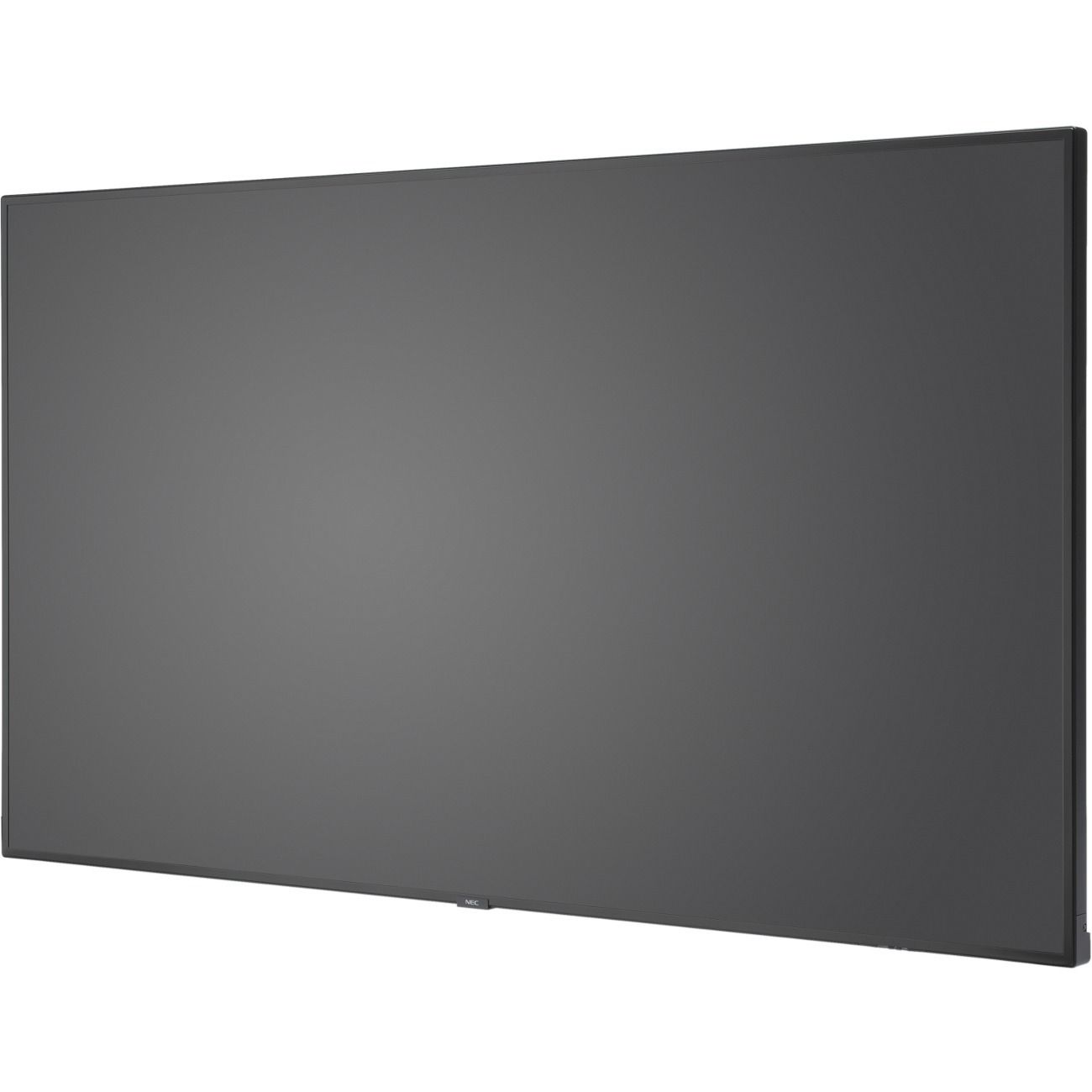

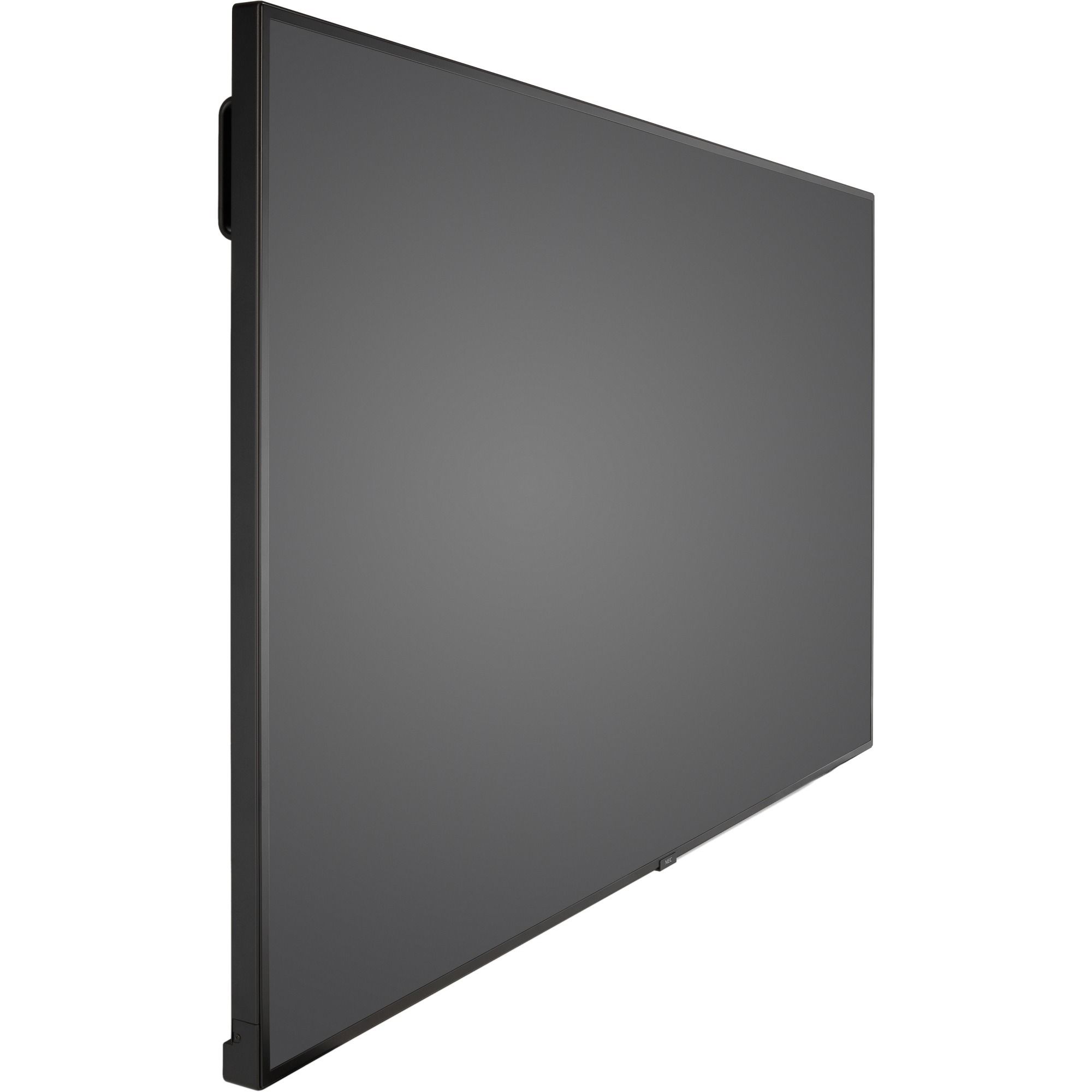

NEC V864Q Monitor Overview

With industry leading experience in superior design and customer focus, the 86" NEC V864Q allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The V864Q series boasts a 500 cd/m² brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail, Transportation, Financial and Healthcare environments.

Stylish and sleek design allows for easy and unobtrusive integration into any environment
500 cd/m² brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display
SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
Integrated Media Player allows for audio, video or image playback via USB or SD card
Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation
Full 3 year commercial warranty to allow for peace of mind and protection of this investment
Pair with a WMK-3255S wall mount to meet ADA Compliance requirements for a thin depth signage solution

Detailed Specs

Technical Information

Bezel Width (Bottom):

0.60"

Bezel Width (Top):

0.60"

Bezel Width (Left):

0.60"

Bezel Width (Right):

0.60"

Display & Graphics

Screen Size:

86"

Display Screen Type:

LCD

Display Resolution:

3840 x 2160

Pixel Pitch:

19.3 mil

Backlight Technology:

Edge LED

Video

Scan Format:

2160p

Brightness:

500 Nit

Network & Communication

Ethernet:

Yes

Interfaces/Ports

USB:

Yes

HDMI:

Yes

Serial:

Yes

Number of HDMI Inputs:

Number of DisplayPorts:

Power Description

Input Voltage:

120 V AC
230 V AC

Physical Characteristics

Color:

Black

Height:

43.3"

Width:

75.9"

Depth:

2.9"

Weight (Approximate):

127.40 lb

Miscellaneous

Package Contents:

86" Ultra High Definition Professional Display
Power Cord
2.0m DisplayPort Cable
2.0m HDMI Cable
Wireless Remote Control
Batteries
Setup manual
Clamps
Screws
SD Card Cover
Eyebolt Bracket
Setup Manual
CD (Software & Documentation)

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0805736067750

UPC: 805736067750

EAN: 0805736067750

UNSPSC: 43211902
