NVIDIA MMA1B00-C100D Data Networking

NVIDIA - Nvidia Mellanox 100Gb/s QSFP28 Optical Transceiver, For Optical Network, 1 x MPO 100GBase-SR4 Network, Optical Fiber, Multi-mode, 100 Gigabit Ethernet, 100GBase-SR4, Hot-pluggable

QSFP28 offers better usage with maximum efficiency and convenience
With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
QSFP28 with optical network application/usage for reliability and maximum efficiency

Need a different version? See all NVIDIA Parts Data Networkings

Chat Now for Qty Discount

Add to Quote

$245.48

In Stock

Overview

NVIDIA Parts Data Networking Model Overview

Parts and products from NVIDIA.

NVIDIA MMA1B00-C100D Data Networking Overview

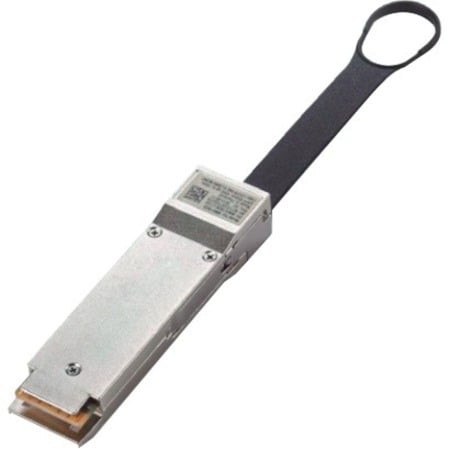

Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.

The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.

The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:

-Temperature with warning/alarm

-Supply voltage with warning/alarm

-Laser bias current

-Transmitted optical power with warning/alarm

-Received optical power with warning/alarm

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Detailed Specs

Technical Information

Application/Usage:

Optical Network
Data Networking

Interfaces/Ports

Total Number of Ports:

Connector Type:

MPO

Interfaces/Ports Details:

1 x MPO 100GBase-SR4 Network

Media & Performance

Media Type Supported:

Optical Fiber

Fiber Mode Supported:

Multi-mode

Ethernet Technology:

100 Gigabit Ethernet

Network Technology:

100GBase-SR4

Physical Characteristics

Form Factor:

Hot-pluggable

Miscellaneous

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Israel

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0081050143886, 0783555115145, 0800953290936, 0818239668324, 0818278741378, 0993245081098, 0997847457213, 0997854690863, 4943783137982, 4943783147097, 4973153183677, 4973163101920, 7290108487015

UPC: 081050143886, 783555115145, 800953290936, 818239668324, 818278741378, 993245081098, 997847457213, 997854690863

EAN: 0081050143886, 0783555115145, 0800953290936, 0818239668324, 0818278741378, 0993245081098, 0997847457213, 0997854690863, 4943783137982, 4943783147097, 4973153183677, 4973163101920, 7290108487015

UNSPSC: 43201553
