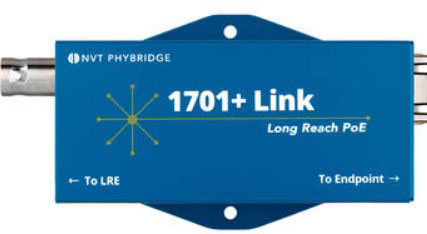

NVT NV-EC1701PLS-LK Data Networking

NVT - 1701+ Link, Long Reach PoE++ EoC adapter when paired with NV-EC1701PLS-BSE (50 Watts), local power option. In series capable, up to four 1701+ Link can be paired to a single 1701+ Base. Can be used with UTP with adapter NV-BNCA.5 YEAR warranty included

Paired with 1701+ Base Extender
Data rate up to 420 Mbps with up to 8,000 ft (2.4km) reach
Negotiates with 802.3at/af IP endpoint
Can provide up to 25W of power on 2 pairs if 1701+ Link adapter is powered by 1701+ Base extender
If 1701+ Link adapter is locally powered can provide up to 50W of power on 4 pairs, or 25W on 2 pairs
328ft (100m) reach from the adapter to the IP endpoint via CAT5 or better cable
10/100/1000 Base-T, Auto-MDIX interface with IP endpoint
LED Indicators (power, link, data)

Need a different version? See all NVT Parts Accessories

Chat Now for Qty Discount

Add to Quote

$348.29

Overview

NVT Parts Accessory Model Overview

Products and parts from NVT.

NVT NV-EC1701PLS-LK Data Networking Overview

When paired with the 1701+ Base, the 1701+ Link can supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000ft (2.4km) on RG6.

Detailed Specs

Technical Information

Maximum Extended Range:

7874.02 ft

Maximum Data Transfer Rate:

52.50 MB/s

Interfaces/Ports

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

Power Description

Input Voltage:

55 V DC

Physical Characteristics

Height:

1.3"

Width:

2.1"

Length:

4.2"

Miscellaneous

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

UNSPSC: 43222608
