NVT NV-FLX-08-DEMO Data Networking

NVT - FLEX8 Demo: Port Long Reach 2 or 4 pair UTP PoE++ (50 Watts) Unmanaged Switch, 55VDC, 190 Watt Power supply, 1 FLEX-C, 2 FLEX-Link, 1 FLEX-Base, 1 FLEX4, 60 Watt Power supply, up to 2 Tech Certs, and case.

8-port plug-and-play long reach PoE switch
10/100Mbps symmetrical (full duplex) and PoE++ (50W) over 4-pair UTP or PoE+ (30W) over 2-pair UTP with 2,000ft (610m) reach
2 x 1GB uplink ports
190W external power supply
EN 50121-4 Standard for Railway/ Subway environments

Need a different version? See all NVT Parts Accessories

Chat Now for Qty Discount

Add to Quote

$3,794.12

Overview

NVT Parts Accessory Model Overview

Products and parts from NVT.

NVT NV-FLX-08-DEMO Data Networking Overview

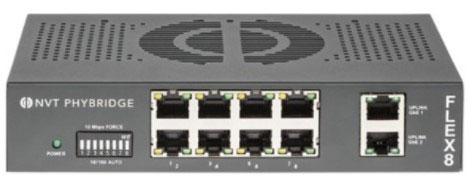

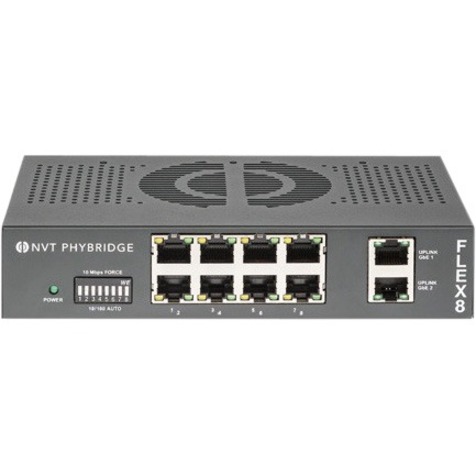

Fast Ethernet and PoE over Multi-Pair UTP with up to 2,000ft (610m) Reach | FLEX8 Unmanaged Switch
The plug and play FLEX8 unmanaged switch makes the modernization to IP devices (IoT) simple, secure and cost-effective. When paired with the FLEX Adapters, this powerful enterprise-grade switch delivers fast Ethernet and PoE over Multi-Pair UTP with up to 2,000ft (610m) reach - that's 6Xs the reach of standard Ethernet switches.

With the FLEX8, customers are taking full advantage of Modern LAN principles, protecting existing infrastructure assets, and eliminating any need to rip and replace the established UTP cabling. The FLEX8 unmanaged switch optimizes network design with advanced interoperability and easy integration into the overall LAN creating a secure, robust path for IP endpoints.

Accelerate your return on investment by reducing infrastructure costs.
Simplify your IP modernization, collapsing planning and deployment time.
Eliminate infrastructure barriers, risks, disruption and costs.
Create a robust plug-and-play IP platform that is easy to deploy and manage.
Be environmentally responsible during your IP upgrades.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Uplink Port:

Yes

Network (RJ-45):

Yes

Port/Expansion Slot Details:

2 x Gigabit Ethernet Network
8 x Network

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet
Fast Ethernet

Network Technology:

10/100/1000Base-T
10/100Base-T

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3
IEEE 802.3af
IEEE 802.3at

Management & Protocols

Manageable:

Power Description

PoE (RJ-45) Port:

Yes

Power Source:

Power Supply

Power Consumption:

6 W

Physical Characteristics

Form Factor:

Standalone
Rack-mountable
Shelf Mountable

Height:

1.5"

Width:

4.5"

Length:

7.1"

Weight (Approximate):

1.30 lb

Miscellaneous

Package Contents:

FLEX8 Unmanaged Switch
190W power supply
2 x Brackets for Installation

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

United States

Item Numbers

UNSPSC: 43222612
