Orion 19PVMV CCTV Monitor

Orion - BUILT IN TILT/SWIVEL 1/3" SONY SUPER HAD II INTERLINE CCD

LED Backlight Unit
Built-In WDR 1 / 2.8" SONY CMOS
19 inch LED Back Light Unit
Tilt Swivel Camera
1945(H) x 1097(V) approx. 2.13M pixels
0.0001 lux / F1.2
1280 x 1024 Resolution, 250 Nits, 1000:1 Contrast
3D Comb Filter, Deinterlace, Noise Reduction, Auto Source Sequencing
BNC Video 1 In / 1 Out, Audio 1 In, HDMI 1 In, VGA 1 In, Camera 1 Out, PC Stereo 1 In
Microwave PIR Motion Sensor (10 ~ 30 feet)
Mount Options: Wall or Ceiling

Need a different version? See all Orion Parts Accessories

Chat Now for Qty Discount

Add to Quote

$880.45

Overview

Orion Parts Accessory Model Overview

Products and parts from Orion.

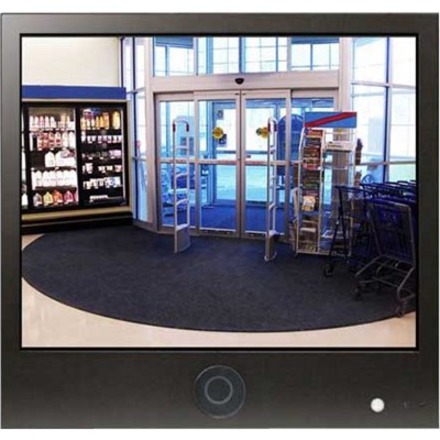

Orion 19PVMV CCTV Monitor Overview

PVM SERIES

ORION Images is a true manufacturer of LCD & LED CCTV monitors. The ORION Images monitors are true Commercial Grade with FCC Class A Certification - Built to Run 24 x 7 x 365 continuously. Our monitors are designed, engineered and manufactured with CCTV PCB boards and circuitry making these the LCD solution for your security surveillance.

PRODUCT DESCRIPTION

The ORION Images Value Series 18.5 inch LED PVM (Public View Monitor) with built in WDR SONY CCD camera and motion PIR detection sensor becomes a highly effective theft deterrent tool creating awareness that a security surveillance system is in place. The ORION Images public view monitor can be used in supermarket, convenience store, department store etc...

Detailed Specs

Technical Information

Number of Screens:

Screen Size Class:

19"

Viewable Screen Size:

19"

Screen Mode:

SXGA

Aspect Ratio:

5:4

Pixel Pitch:

11.6 mil

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

160°

Mount Type:

Wall Mountable
Ceiling Mountable

Backlight Technology:

LED

Features:

3D Comb Filter
Noise Reduction
Pyroelectric Infrared Ray (PIR) Sensor
3D De-interlace
Auto Senquential Source Switching

Horizontal Frequency:

31 kHz to 48 kHz

Vertical Frequency:

56 Hz to 75 Hz

Stand Adjustments:

Tilt
Swivel

Video

Maximum Resolution:

1280 x 1024

Standard Refresh Rate:

75 Hz

Color Supported:

16.7 Million Colors

Native Contrast Ratio:

1,000:1

Brightness:

250 Nit

Audio

Number of Speakers:

Speakers:

Yes

Interfaces/Ports

HDMI:

Yes

VGA:

Yes

Number of HDMI Inputs:

Built-in Devices

Webcam:

Yes

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color:

Black

Height:

15.8"

Width:

16.5"

Depth:

3.2"

Weight (Approximate):

14.33 lb

Miscellaneous

Country of Origin:

South Korea

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211902
