Panasonic CF-20G5-05VM Rugged Laptop

The Panasonic CF-20G5-05VM Rugged Laptop has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Panasonic CF-20 - Rugged Laptops, Panasonic CF-20, Public Sector Specific, Standard, Windows 10 Pro, Intel Core I5-7Y57 1.20Ghz, vPro, 10.1in WUXGA 10-Pt Gloved Multi-Touch and Digitizer, 8GB, 256GB SSD, Intel Wi-Fi, TPM 2.0, Bluetooth, Dual Pass (CH1:WWAN/CH2:WWAN-GPS), 4G LTE-Advanced Multi Carrier (EM7455), Infrared Webcam, 8MP Camera, Bridge Battery, Emissive Backlit Keyboard, Flat, Toughbook Preferred, 3 Year Pro-Service Premier Deployment Service, Laptop Pro-Plus Warranty, and 256 SSD No Return Service

Intel Core i5 1.20 GHz processor provides great performance, immersive multimedia and rapid loading of programs
With 8 GB memory, you can switch between various applications without issue
The 10.1" 1920 x 1200 screen provides a great movie watching experience
With Windows 10 Pro edition, enjoy your favorite content all at once on a larger view edge browser. Share your thoughts with the world by writing directly on web pages.
256 GB total SSD capacity keeps your running programs active while your computer resumes from suspension in seconds
8.50 Hours battery run time helps you stay unwired and work longer non-stop

Need a different version? See all Panasonic Toughbook 20 Rugged Laptops

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

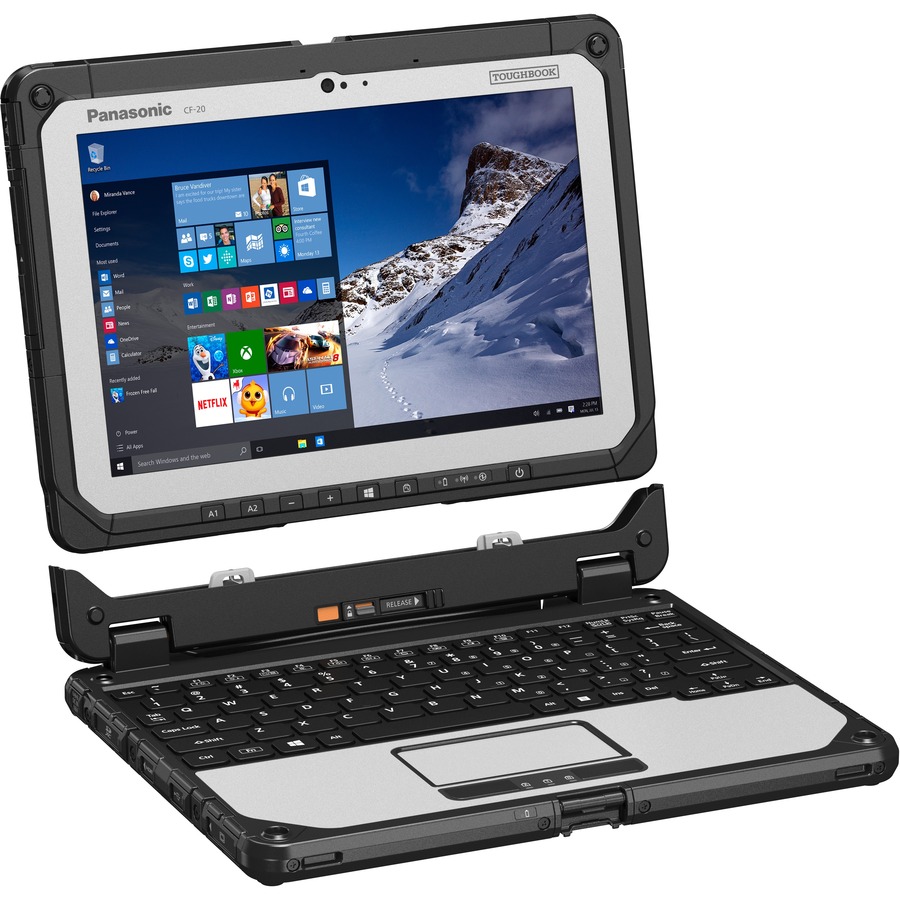

Panasonic Toughbook 20 Rugged Laptop Model Overview

The Panasonic Toughbook 20 is a fully rugged, lightweight laptop that easily detaches to become a 10.1-inch tablet... and it only takes one hand. The detachable laptop has a magnesium alloy chassis and is also MIL-STD-810G and IP65 certified, so it can take the abuse of most any job site. At only 3.9 pounds, this 2-in-1 machine is good on the go. The clever built-in handle on the Toughbook 20 also functions as a kickstand, providing on-the-job flexibility. The optional bridge battery allows hot swap battery replacement without disruption. The gloved multi touch display is sunlight-viewable, making this hybrid laptop perfect for rugged outdoor environments. With the Toughbook 20 detachable laptop tablet at your side, you can handle anything the workday throws at you.

Panasonic CF-20G5-05VM Rugged Laptop Overview

THE WORLD'S FIRST FULLY RUGGED DETACHABLE LAPTOP.

The Toughbook 20 is the first fully rugged detachable PC with a removable keyboard that quickly transforms from a laptop into a fully functioning tablet with just one hand. At only 3.9 pounds, it's good on the go with a clever built in handle that also functions as a kickstand, a bridge battery that allows hot swappable battery replacement while running without disruption and the broadest range of ports and integrated options in its class. The Toughbook 20 display can be used with or without gloves and its sunlight-viewable 800 nit IPS display with direct bonding enables wider viewing angles and richer colors.

Detailed Specs

Full specifications (PDF)

Processor

Processor Manufacturer:

Intel

Processor Type:

Core i5

Processor Generation:

7th Gen

Processor Model:

i5-7Y57

Processor Core:

Dual-core (2 Core)

Processor Speed:

1.20 GHz

Memory

Total Installed System Memory:

8 GB

Maximum Supported System Memory:

16 GB

System Memory Technology:

DDR3L SDRAM

Storage

Drive Type:

SSD

Total Solid State Drive Capacity:

256 GB

Display & Graphics

Screen Size:

10.1"

Display Screen Type:

LCD

Display Screen Technology:

In-plane Switching (IPS) Technology

Screen Resolution:

1920 x 1200

Touchscreen:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD Graphics 615

Graphics Memory Technology:

DDR3L SDRAM

Graphics Memory Accessibility:

Shared

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n/ac

Cellular Generation:

Cellular Data Connectivity Technology:

LTE Advanced

Ethernet Technology:

Gigabit Ethernet

Bluetooth:

Yes

GPS:

Yes

WWAN Supported:

Yes

Built-in Devices

Rear Camera:

Yes

Rear Camera Resolution:

8 Megapixel

Focus Modes:

Auto-focus

Infrared Camera:

Yes

Interfaces/Ports

HDMI:

Yes

Total Number of USB Ports:

Number of USB 3.0 Ports:

Network (RJ-45):

Yes

Operating System

Operating System Platform:

Windows

Operating System:

Windows 10 Pro

Battery Information

Number of Batteries:

Maximum Battery Run Time:

8.50 Hours

Power Description

Input Voltage:

120 V AC
230 V AC

Physical Characteristics

Form Factor:

Detachable

Height:

1.30"

Width:

10.7"

Depth:

9.2"

Weight without Dock (Approximate):

2.10 lb

Weight with Dock (Approximate):

3.90 lb

Miscellaneous

Package Contents:

TOUGHBOOK CF-20G5-05VM 2 in 1 Notebook
AC Adapter
Stylus
Backlit Emissive Keyboard

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

ISO 14000
ISO 14001
RoHS

Warranty

Limited Warranty:

3 Year

Additional Warranty Information:

Public Sector Service Package includes the following services in addition to the TOUGHBOOK:

Premier Deployment (3 Years)
No Return Of Defective Drive (3 Years)
Protection Plus Warranty (3 Years)

Item Numbers

GTIN: 0885170344013

UPC: 885170344013

EAN: 0885170344013

UNSPSC: 43211503
