Fixed Focal Length:
0.84 mm
Panasonic Camera Accessory Model Overview
Mounting brackets, domes and other camera hardware.

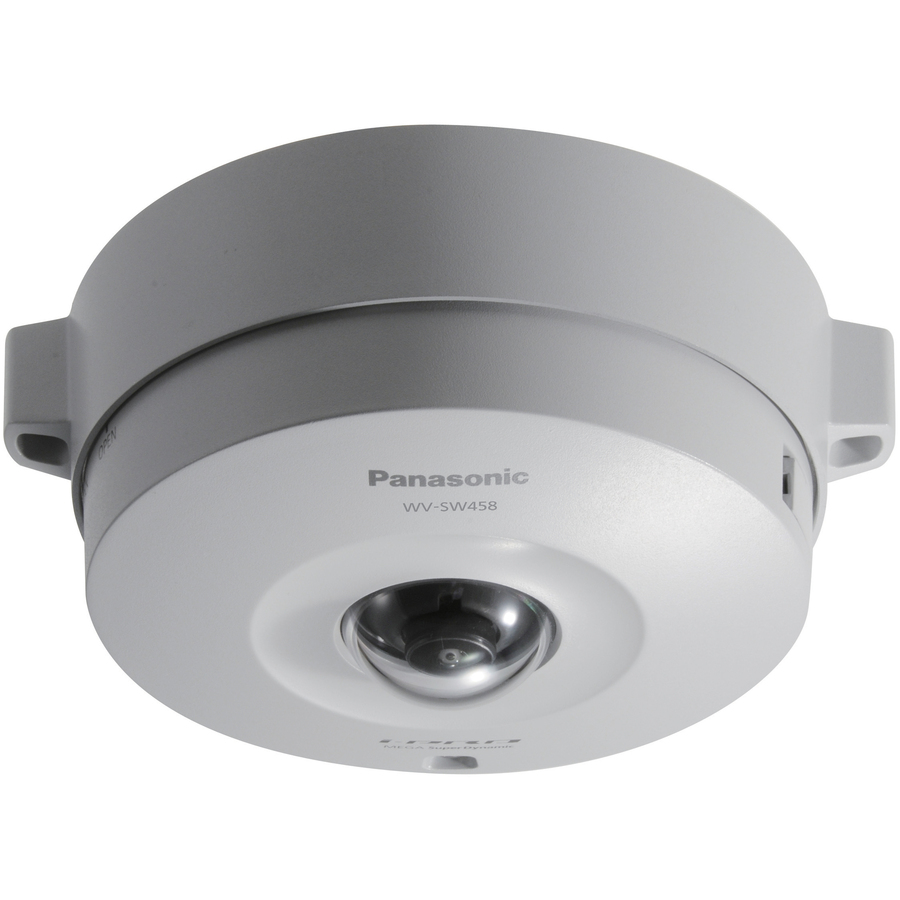

Panasonic WV-SW458 Security Camera Overview
The WV-SW458 IP dome provides FULL HD quality images and a wealth of features packed into a vandal resistant outdoor housing.
Using a newly developed 3.1 MOS sensor, the SW458 provides 1080p HD images across multiple H.264 and JPEG streams. Using Super Dynamic technology to deliver 128x dynamic range, the simple day/night image quality of the SW458 is ideal in all conditions.
Packed with features, the SW458 is the most intelligent camera to date. Face detection allows the camera to adjust product focus to capture a person in shot and also use the XML data to trigger an alarm upon detection if using a compatible recorder. VIQS (variable image quality on specified area) is the latest innovation to the Smart HD range, allowing the camera to have higher resolution only on specified areas of the image, meaning lower bandwidth.
The WV-SW458 provides all the latest Smart HD innovations in an IP66 rated vandal housing, fitted with dehumidification technology, ensuring is fit for all outdoor needs. Also, ONVIF compliant the dome is a must for a wide range of applications.
Technical Information
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Minimum Illumination:
0.1 lux
Color Supported:
- Color
- Monochrome
Field of View:
176° to 182°
Video
Video Formats:
H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Lens
Lens Type:
Fixed
Maximum Focal Length:
0.84 mm
Lens Included:
Yes
Maximum Aperture:
f/2.4
Digital Zoom:
4x
Focus Modes:
Fixed Focus
Minimum Focus Distance:
11.81"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- SMTP
- DHCPv6
- MLD
- ICMP
- TCP/IP
- UDP/IP
- HTTP
- HTTPS
- RTSP
- RTP
- RTP/RTCP
- FTP
- DHCP
- DNS
- DDNS
- NTP
- SNMP
- UPnP
- IGMP
- ARP
Controls/Indicators
Status Indicators:
OSD
Power Description
Maximum Power Consumption:
6.50 W
Physical Characteristics
Form Factor:
Dome
Durability:
- Vandal Resistant
- Water Resistant
- Dust Resistant
- Shock Resistant
Height:
2"
Diameter:
6.1"
Weight (Approximate):
2.43 lb
Miscellaneous
Features:
- Face Detection
- Digital Noise Reduction
- Motion Detection
Indoor/Outdoor:
Outdoor
Package Contents:
- 360 degree Super Dynamic Vandal Resistant Dome Network Camera
- Installation Guide
- Software CD-ROM
- Code Label
- Camera Attachment
- Base Cover
- Mount Bracket
- Waterproof Tape
- 5 x Fixing Screws (M4 x 8 mm)
- 4P Alarm Cable
- 2P Power Cable
- Bit for Tamperproof Screw
System Requirements:
- Operating System: Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
- Browser: Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer® 7.0 (32 bit), Microsoft Internet Explorer® 6.0 SP3
Compatibility:
NTSC
Certifications & Standards:
- UL (UL60950-1)
- FCC (Part15 ClassA)
- C-UL (CAN/CSA C22.2 No.60950-1)
- DOC (ICES003 ClassA)
- CE
- IEC60950-1(EN55022 ClassB, EN55024)
- IP66
Ingress Protection Rating:
IP66
Platform Supported:
PC
Item Numbers
GTIN:
0641676457639, 0641676457684, 0885170096080, 0885170166936, 4010869240369
UPC:
641676457639, 641676457684, 885170096080, 885170166936
EAN:
0641676457639, 0641676457684, 0885170096080, 0885170166936, 4010869240369
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Panasonic WV-SW458 Security Camera is also known as
PAN-WVSW458
