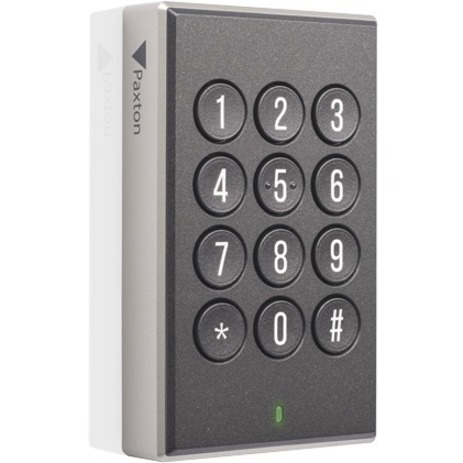

Paxton 010-721-US Accessory

Paxton - P10 reader keypad

Externally rated, IK09 and IP67
Capacitive wake up and low power sleep mode
Built-in Bluetooth® wireless technology, allowing the use of smart devices
Three Bluetooth® range options - token, touch-to-enter and long range
Secure encrypted RS485 communication with Paxton10 controller
Reads Paxton, MIFARE®, HID™ Prox, EM, FeliCa, NFC and DESFire token technology

Need a different version? See all Paxton Parts Accessories

Chat Now for Qty Discount

Add to Quote

$247.38

Overview

Paxton Parts Accessory Model Overview

Products and parts from Paxton.

Paxton 010-721-US Accessory Overview

The Keypad Reader brings PIN and Code support to the Paxton10 system in a stylish and simple design with a rugged IP67 construction.

Designed using cutting edge technology, the Paxton10 Keypad Reader packs a huge amount of functionality into its compact package. The new reader supports all leading tokens including HID Prox®, Mifare®, Paxton and EM, as well as offering Bluetooth for communication with long range or hands free credentials and mobile telephones via the Paxton app.

The Keypad Reader also includes LED backlighting, whilst using minimal energy during operation through its built in wake-up mechanism.

Features

Durable hardened silicone keypad
Backlit for easy use and identification in low light
Brings Paxton simplicity to the plethora of token types currently on the market by supporting all of them concurrently.
Multi-format reading technology offering compatibility with Paxton, MIFARE, HID Prox®, EM and more.
Low power sleep mode
Built-in Bluetooth Smart and Low Energy support to allow communication to mobile and wearable devices.
Simple 2-part construction with encapsulated 5m cable included
IP67 rated
Simple 4 wire installation

Detailed Specs

Technical Information

Identification Method:

Key Code
Proximity

Ingress Protection (IP) Rating:

IP67

Impact Protection (IK) Rating:

IK09

Interfaces/Ports

Serial:

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Form Factor:

Surface Mount

Color:

Black

Height:

4.1"

Width:

2.5"

Depth:

0.7"

Miscellaneous

Package Contents:

Paxton10 Reader Keypad US
Encapsulated 5m Cable

Compatibility:

Paxton
EM4100/02
Sony
FeliCa Lite-S MIFARE Classic
MIFARE DESFire EV1/EV2
MIFARE Plus
MIFARE Ultralight
MIFARE Ultralight C
MIFARE Mini
NFC
Hitag2
HID Prox 125kHz low frequency

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 46171600
