Peerless-AV IB14X9-W Accessory

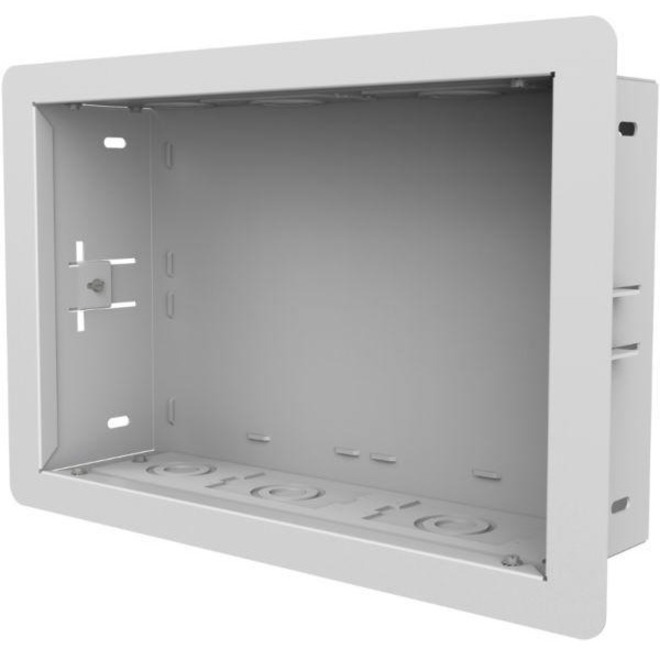

Peerless-AV - 14X9" IN-WALL BOX, WHITE

Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
Cut-Out Dimensions: 14.4" x 9.4" (365 x 238mm)
Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
Integrated cable tie locations
UL 2416 listed

Need a different version? See all Peerless-AV Parts Products

Chat Now for Qty Discount

Add to Quote

$219.00

Overview

Peerless-AV Parts Products Model Overview

Products and parts from Peerless-AV.

Peerless-AV IB14X9-W Accessory Overview

Peerless-AV's new In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.

Detailed Specs

Product Information

Device Supported:

A/V Equipment
Power Equipment

Maximum Load Capacity:

25 lb

Features:

Scratch Resistant
Flexible
Adjustable

Physical Characteristics

Product Color:

White

Finishing:

Fused Epoxy

Height:

10.6"

Width:

15.8"

Depth:

3.9"

Weight (Approximate):

5.50 lb

Miscellaneous

Package Contents:

In-Wall Box
Trim Ring
2 x Drywall Clamps
2 x Mounting Plates
Wood Stud Mounting Hardware

Application/Usage:

Wall

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0735029329558

UPC: 735029329558

EAN: 0735029329558

UNSPSC: 31162313
