Peerless-AV IM771PU Accessory

Peerless-AV - DUAL ARM ARTICULATING MOUNT W/ IN-WALL BOX - 42-90" DISPLAYS, NCNR

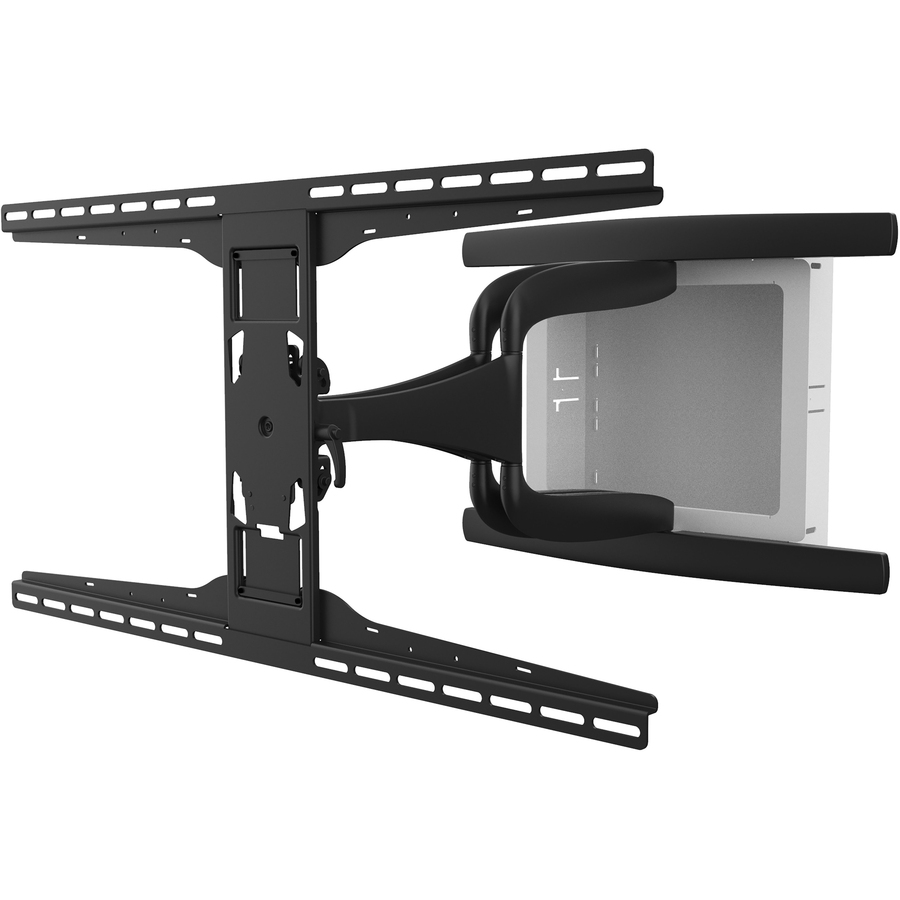

Includes Articulating Mount with 800 x 400mm VESA® adaptors
I-shaped adaptor plate helps avoid blocking connections on the back of display
Removable trim ring allows for pre-construction or retrofit installations
Obstruction free In-Wall Box provides ample room and accessibility to equipment
Removable mounting plates allow wiring terminations to take place outside of the box to ease the installation process
Up to ±90° of side-to-side swivel
Added ±5° of roll for post-installation display leveling without the use of tools
Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
Landscape or portrait mounting options increases display versatility
Low profile design provides an ADA compliant solution when used with displays 2" thick or less
Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent
Integrated cable tie locations

Need a different version? See all Peerless-AV Parts Products

Chat Now for Qty Discount

Add to Quote

$729.00

Overview

Peerless-AV Parts Products Model Overview

Products and parts from Peerless-AV.

Peerless-AV IM771PU Accessory Overview

Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM771PU is ADA compliant when used with displays 2" thick or less.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

Designed for use with displays that are less than 3" (76mm) deep.

The display must have a flat mounting surface, or mounting holes need to be on the furthest back surface of the display.

Detailed Specs

Product Information

Device Supported:

Flat Panel Display
A/V Equipment

Number of Displays Supported:

Maximum Load Capacity:

150 lb

Maximum Screen Size Supported:

90"

Features:

Articulating
Scratch Resistant
Swivel
Vertical Adjustment

Height Adjustable:

Yes

Physical Characteristics

Product Color:

Black
White

Finishing:

Fused Epoxy

Mounting Pattern:

800 x 400

Height:

16.9"

Width:

32.3"

Depth:

28.8"

Weight (Approximate):

35 lb

Miscellaneous

Package Contents:

Articulating Mount
In-Wall Box
Trim Ring
2 x Mounting Plates
Wood Stud Mounting Hardware
4 x White Screw Caps

Application/Usage:

Wall

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0735029334606

UPC: 735029334606

EAN: 0735029334606

UNSPSC: 31162313
