Peerless-AV PLA60-UNL Accessory

Peerless-AV  -  MOUNT, SECURITY UNIVERSAL ARTICULATING ARM WALL MOUNT FOR 37"-60" FLAT PANEL SCREENS
  • Makes it quick, convenient, and simple to adjust and reposition connectors in a secure mounting system
  • Sustains a maximum load capacity of 175 lb
  • Supports 60" displays
  • Built with steel product material to offer usage dependabilty and durability, ensuring prolonged use
Read More

Need a different version? See all Peerless-AV Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$599.00
Peerless-AV PLA60-UNL Accessory
Peerless-AV PLA60-UNL Accessory
Peerless-AV PLA60-UNL Accessory Peerless-AV PLA60-UNL Accessory
Peerless-AV Parts Products Model Overview
Products and parts from Peerless-AV.
Peerless-AV PLA60-UNL Accessory Overview

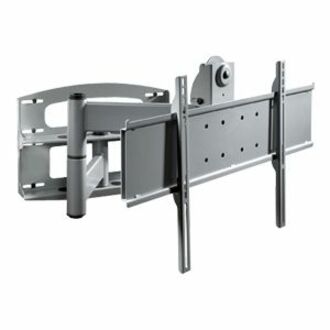

Articulating Wall Arm offers a single solution for screens up to 60" in a wide range of installations including lobbies, hotel rooms, boardrooms, public displays or home theaters. Its all-steel construction enables it to hold screens up to 175 lb, while its self-lubricating bushings enable the arms to smoothly articulate and position your screen for optimal viewing. Combined with adjustable tilt and pivot capabilities, the PLA60 is the only wall arm you need.

Product Information
Device Supported:
Flat Panel Display
Maximum Load Capacity:
175 lb
Minimum Screen Size Supported:
37"
Maximum Screen Size Supported:
60"
Physical Characteristics
Product Color:
Silver
Product Material:
Steel
Weight (Approximate):
42.50 lb
Miscellaneous
Package Contents:
  • PLA60-UNL-S Articulating Wall Arm
  • 1 x Wall plate
  • 1 x Tilt-roll assembly
  • 1 x Arm assembly
  • 2 x Wall support arm axle
  • 3 x Vinyl trim
  • 8 x Screw bolt (M10 x 1.5 x 15 mm)
  • 1 x Nylon washer (.505 x .75 x .062" )
  • 1 x Tilt adjustment knob
  • 1 x Carriage bolt (3/8"-16 x 3.25" )
  • 4 x Delrin washer (1.525 x 2 x .062" )
  • 2 x Socket head cap screw (#8-32 x .375" )
  • 6 x Plastic finishing cap
  • 2 x Holding pin
  • 2 x Retainer plug
  • 8 x Wood screw (5/16 x 3")
  • 8 x Washer (.250 x 1 x .068" )
  • 1 x Allen wrench (9/64")
  • 4 x Cable management clips
  • 4 x Cable tie
  • 2 x Polyester mesh sleeve (36")
  • 1 x Allen wrench (6 mm)
  • 1 x Adapter bracket
  • 2 x Shallow adapter bracket
  • 2 x Deep adapter bracket
  • 1 x Allen wrench
  • Security Adapter Bracket Fasteners:
  • 4 x (M5 x 25 mm)
  • 6 x (M4 x 12 mm)
  • 4 x (M4 x 25 mm)
  • 4 x (M5 x 12 mm)
  • 4 x (M6 x 12 mm)
  • 4 x (M6 x 25 mm)
  • 4 x (I.D. 5.6 mm)
  • 6 x Multi-washer
  • 4 x (I.D. 8.7 mm)
  • 4 x (M6 x 20 mm)
  • 4 x (M6 x 30 mm)
  • 6 x (M8 x 15 mm)
  • 4 x (M8 x 40 mm)
  • 4 x (M8 x 25 mm)
Additional Information:
  • Pivot: Up to 180 degree
  • Roll: +/-7 degree to level screen horizontally at any position
  • Extends out to 31.8" , retracts to 5.1"
  • Mounts to two wood studs or concrete
  • Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts
Compatibility:

Plasma and LCD Flat Panel Screens: 37" - 60"

Certifications & Standards:

UL

Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0735029243281
UPC: 735029243281
EAN: 0735029243281
UNSPSC: 31162301
