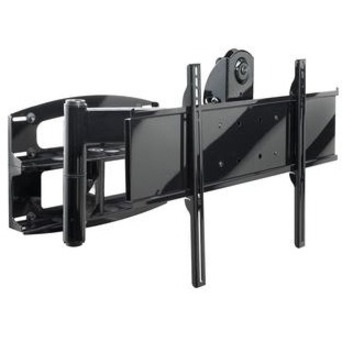

Peerless-AV PLAV60-UNLP-GB Accessory

Peerless-AV - MOUNT, UNIVERSAL ARTICULATING ARM WALL MOUNT WITH VERTICAL ADJUSTMENT FOR 37"-60" FLAT PANEL SCREENS

Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement
Includes mesh cord sheath and cable ties to neatly manage cables
±1" (24mm) vertical adjustment located within reach behind display with PLAV60 models
Universal models adapt to displays with mounting hole patterns up to 730 x 433mm(28.75"W x 17.05"H)
+10/-5° of tilt | ±7° of roll for post installation display leveling
Arm extends up to 32.37" (822mm) from wall
Three pivot points with up to 180° swivel for versatile display positioning

Need a different version? See all Peerless-AV Parts Products

Chat Now for Qty Discount

Add to Quote

$669.00

Overview

Peerless-AV Parts Products Model Overview

Products and parts from Peerless-AV.

Peerless-AV PLAV60-UNLP-GB Accessory Overview

The PLA60 offers a single solution for displays up to 95" in a wide range of installations including lobbies, hotel rooms, boardrooms, public displays or home theaters. Its all-steel construction enables it to hold screens up to 175lb, while its self-lubricating bushings enable the arms to smoothly articulate and position your display for optimal viewing. Combined with adjustable tilt and pivot capabilities, the PLA60 is the only wall arm you need.

Detailed Specs

Product Information

Device Supported:

Flat Panel Display

Maximum Load Capacity:

175 lb

Minimum Screen Size Supported:

37"

Maximum Screen Size Supported:

95"

Features:

Articulating
Adjustable Tilt
Pivot
Cable Management
Vertical Adjustment
180° Swivel
Extendable Arm

Physical Characteristics

Product Color:

Black

Product Material:

Steel

Height:

8.6"

Width:

17.1"

Depth:

31.5"

Weight (Approximate):

44.70 lb

Miscellaneous

Package Contents:

PLA Series Articulating Wall Arm For 37" to 95" Displays*
1 x Wall plate
1 x Tilt-roll assembly
1 x Arm assembly
1 x Wall support arm axle
3 x Vinyl trim
8 x (M10 x 1.5 x 15mm) screw bolt
1 x (.505 x .75 x .062") Nylon washer
1 x Tilt adjustment knob
1 x Carriage bolt (3/8"-16 x 3.25")
2 x (1.525 x 2 x .062") Delrin washer
1 x (#8-32 x .375") Socket cap screw
8 x Plastic finishing cap
1 x Holding pin
1 x Retainer plug
8 x (5/16 x 3") Wood screw
8 x (.250 x 1 x .068") Washer
1 x 9/64" Allen wrench
4 x Cable management clips
4 x Cable tie
1 x 36" Polyester mesh sleeve
1 x 6 mm Allen wrench
1 x 10 mm Allen wrench
8 x Anchor
1 x Adapter bracket
2 x Shallow adapter bracket
2 x Deep adapter bracket
1 x Allen wrench

Additional Information:

Up to 180° pivot
Extends out to 32.4" , retracts to 5.6"
+/-7° roll to level screen horizontally at any position
+/-1" vertical adjustment located within reach behind screen
Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts

Compatibility:

37"- 60" Plasma and LCD Screens

Certifications & Standards:

Country of Origin:

United States

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0735029247111

UPC: 735029247111

EAN: 0735029247111

UNSPSC: 31162301
