Planar 997-6128-00LF Products

The Planar 997-6128-00LF Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

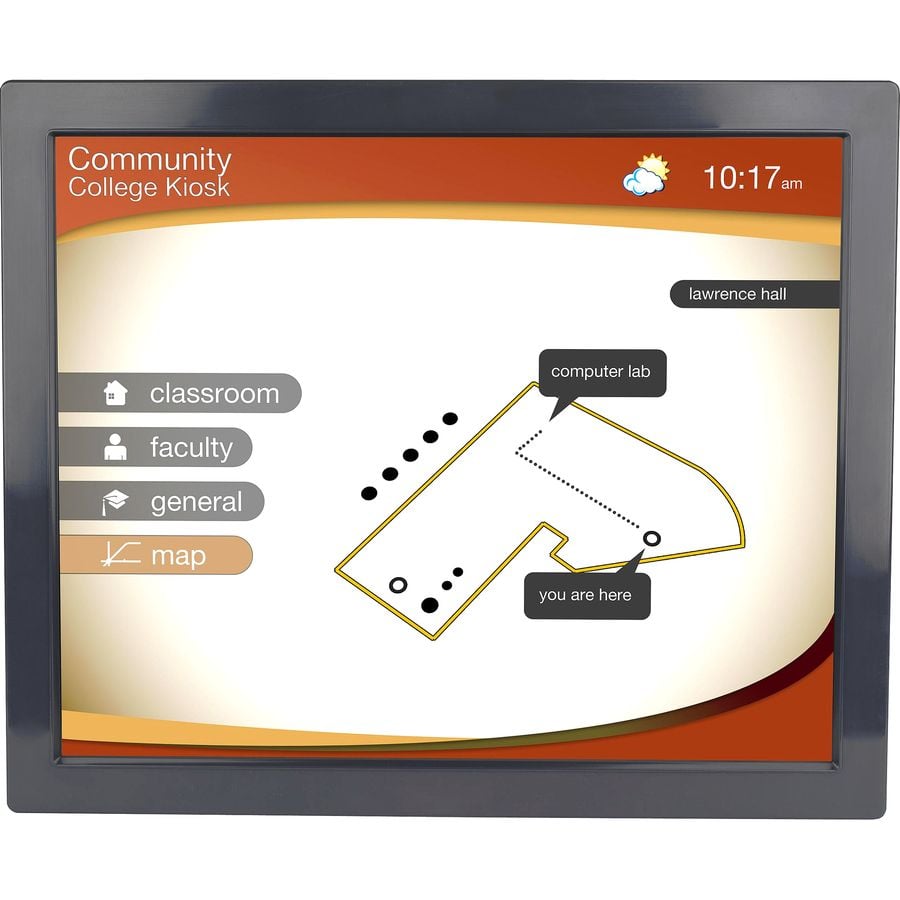

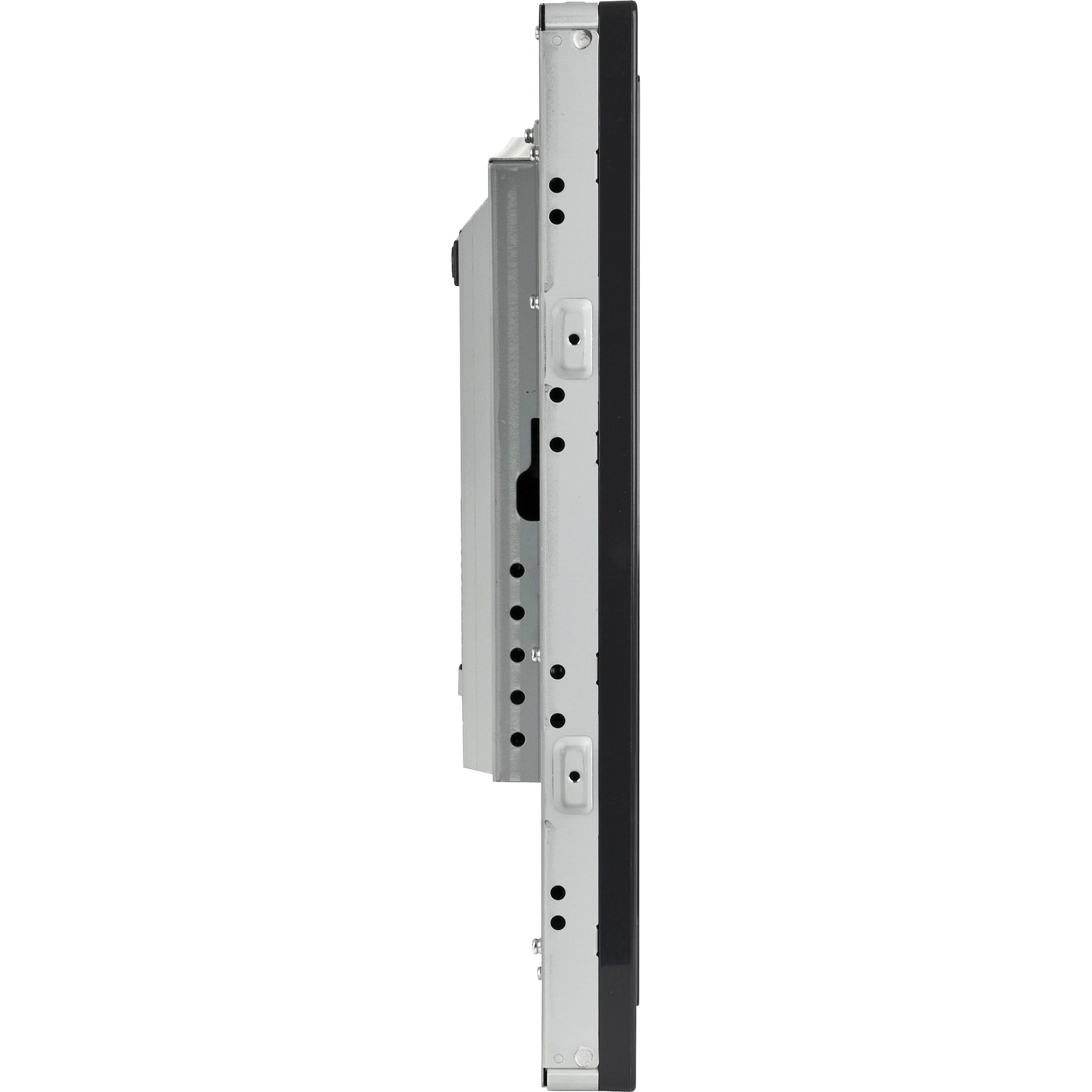

Planar  -  Planar LA1950RTC 19" Open-frame LCD Touchscreen Monitor - 5 ms - 19" Class - Capacitive - 1280 x 1024 - SXGA - 800:1 - 250 Nit - USB - VGA - Black - RoHS - 3 Year
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • Capacitive touchscreens must be impelled with a stylus carrying an electrical charge or by the touch of human skin
Read More
Add to Quote
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 997-6128-00LF Products Overview

Get all the advantages of Planar's desktop LCD monitor in an embeddable, open-frame style. Ideal cost-sensitive retail, ticketing and hospitality applications, the LA1950RTC features a capacitive touchscreen and dual serial/USB touchscreen interface for use in harsh environments where a more rugged touchscreen interface is required. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions. The display offers sharp, clear images to engage consumers. A thin, space-saving design that also reduces heat output and power requirements. And the reliable performance you expect from Planar. All this without the extra hardware costs of an unnecessary bezel and stand. Planar's open-frame monitors are designed for easy integration into kiosk enclosures. The LA1950RTC is ideal for integrators and OEMs. Most important, Planar LA open-frame kiosk displays come standard with 3-year, 48-hour advance replacement warranty saving you time and money.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
5 ms
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Mount Type:
  • Wall Mountable
  • Arm-mountable
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Contrast Ratio:
800:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
25 W
Standby Power Consumption:
4 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
14.2"
Width:
17"
Depth:
2.5"
Weight (Approximate):
12.70 lb
Miscellaneous
Certifications & Standards:
  • UL/cUL
  • CE
  • FCC-B
  • TUV/GS
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689061281
UPC: 810689061281
EAN: 0810689061281
UNSPSC: 43211903
