Planar 997-6378-00 Touchscreen

The Planar 997-6378-00 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

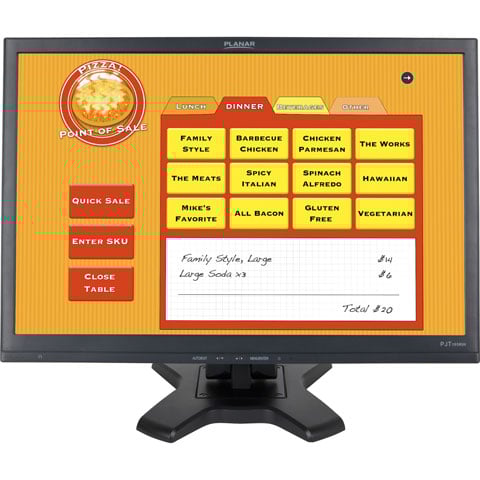

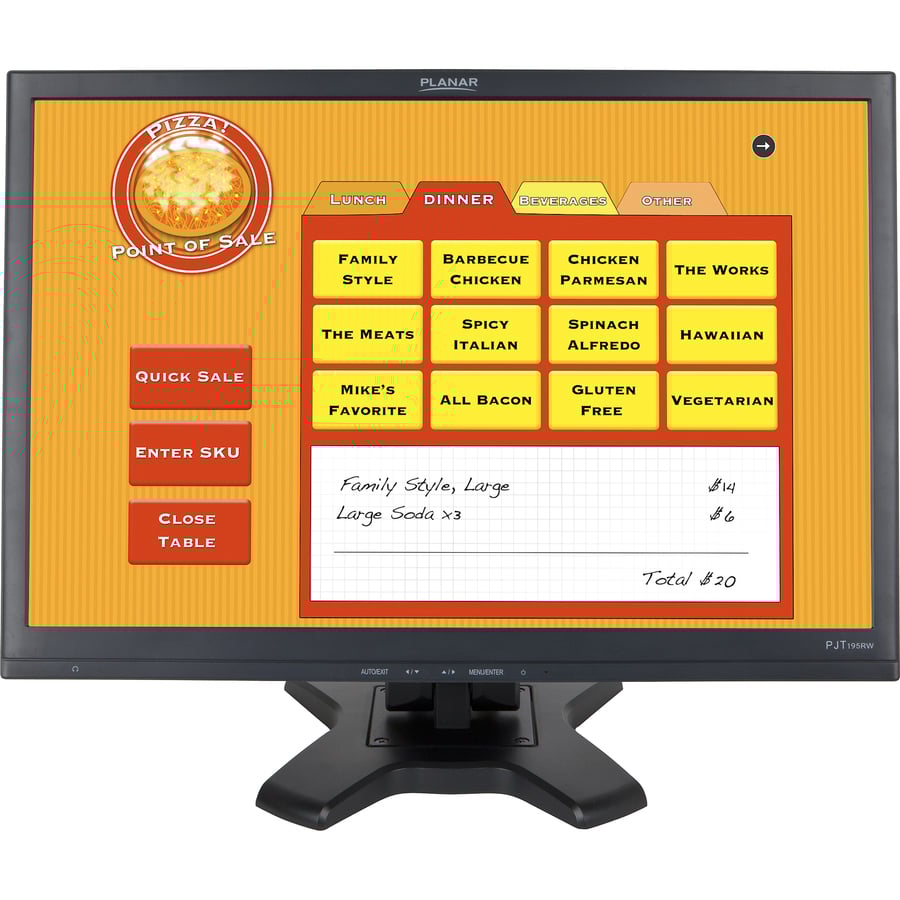

Planar - Planar PJT195RW 19" LCD Touchscreen Monitor - 16:10 - 5 ms - 19" Class - 5-wire Resistive - 1440 x 900 - WXGA+ - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Speakers - USB - VGA - RoHS - 1 Year

The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers

Need a different version? See all Planar Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Planar Parts Accessory Model Overview

Products and parts from Planar.

Planar 997-6378-00 Touchscreen Overview

The Planar PJT195RW 19" widescreen touch screen monitor features 5-wire resistive touch screen with USB touch screen interface, an internal power supply, and speakers. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

The Planar PJT195RW comes standard with a deskstand capable of -5 to 90° tilt range, but is also compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor. Planar has nearly 30 years of experience delivering dependable specialty display solutions.

Detailed Specs

Technical Information

Screen Size Class:

19"

Viewable Screen Size:

19"

Screen Mode:

WXGA+

Response Time:

5 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

160°

Adjustable Display Angle:

Yes

Mount Type:

Desk Mountable

Video

Maximum Resolution:

1440 x 900

Standard Refresh Rate:

75 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

5-wire Resistive

Interfaces/Ports

USB:

Yes

VGA:

Yes

Built-in Devices

Built-in Devices:

Speaker

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

42 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Height:

11.8"

Width:

17.3"

Depth:

2.4"

Height with Stand:

13.70"

Width with Stand:

17.30"

Depth with Stand:

7.80"

Weight (Approximate):

13.20 lb

Miscellaneous

Package Contents:

19" Touch Screen Monitor
Power Cord
VGA Cable
USB Cable (A to B)
Audio-in Cable
User's Guide

Certifications & Standards:

UL/cUL
FCC-B
CB

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0810689063780

UPC: 810689063780

EAN: 0810689063780

UNSPSC: 43211903

Reviews

Q&A

Questions? Get help from
a POS Expert!

The Planar 997-6378-00 Touchscreen is also known as 997-6378-00
