Planar 997-7052-00 Products

The Planar 997-7052-00 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Planar - Planar Helium PCT2485 24" LCD Touchscreen Monitor - 16:9 - 14 ms - 24" Class - Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - Black - RoHS - 3 Year

Projective Capacitive touchscreen technology offers two essential advantages, not only can you touch the panel with your bare finger, but you can also actuate it with surgical gloves or slender cotton gloves on
The Helium Full HD touchscreen monitor includes Full HD 1920x1080 resolution for staggering pixel-by-pixel picture execution
The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
LED backlight technology provides for industry-leading low power consumption and less hazardous materials
Furnishes captivating visuals with about 250 Nit brightness levels
HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Planar Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Planar Parts Accessory Model Overview

Products and parts from Planar.

Planar 997-7052-00 Products Overview

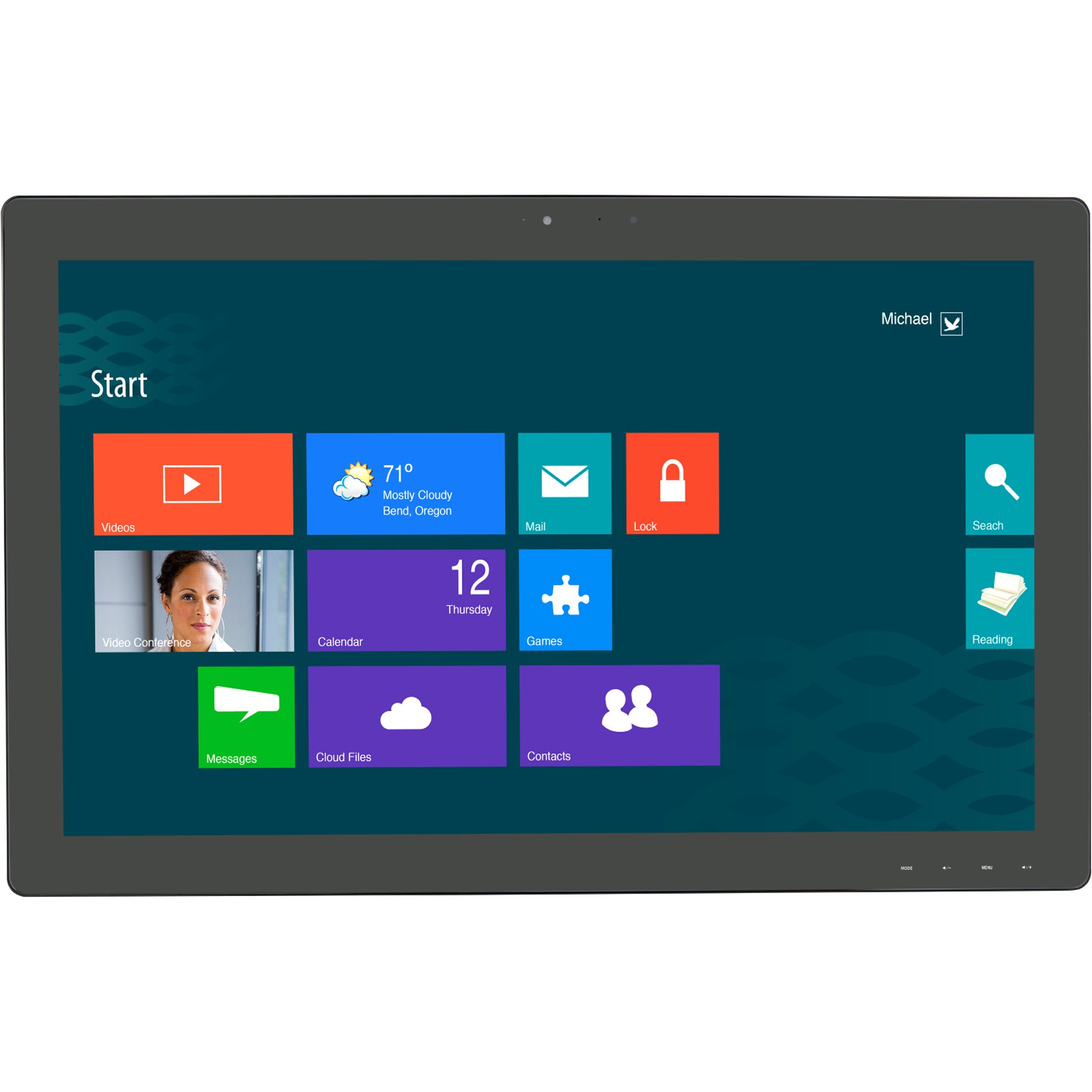

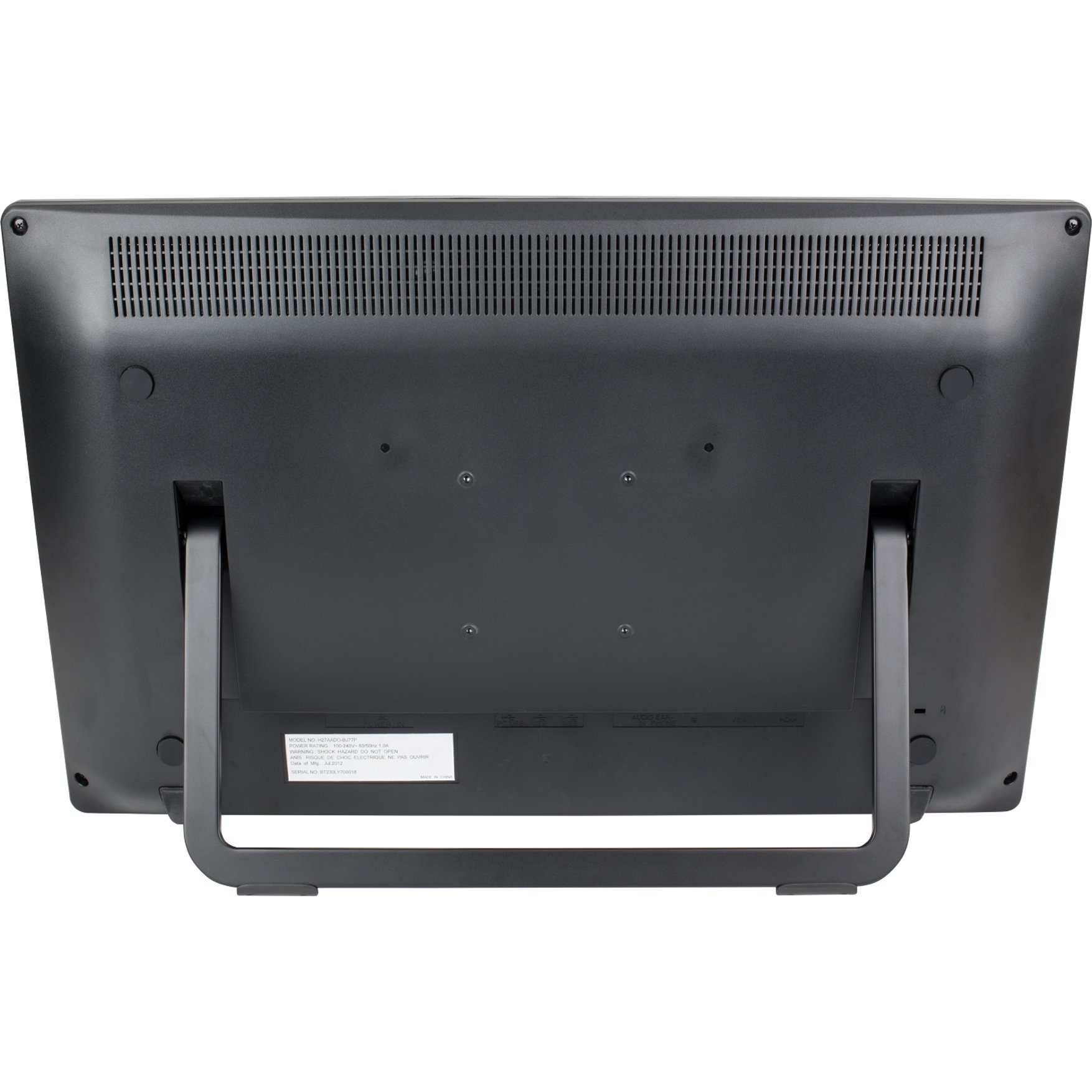

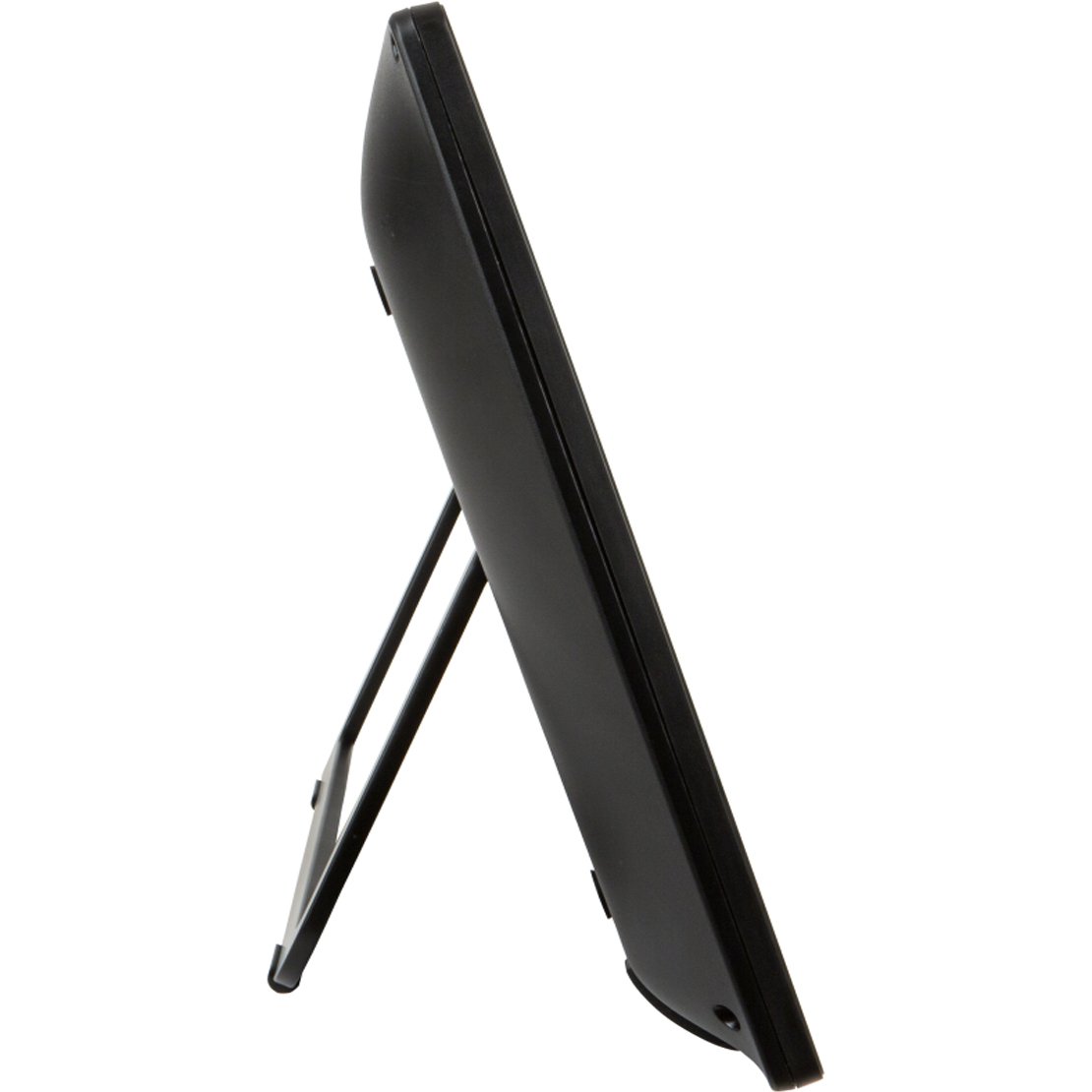

The Planar® Helium™ 24-inch multi-touch monitor is a bright, slim profile interactive touch display with a smooth all glass front surface, wide viewing angles and a built-in full HD webcam. With very light pressure from the user, the unique, easy-to-use desk stand is easily adjustable from 15° to 70°and flat orientation creating the ultimate touch experience on the desktop. The new PCT2485 is ideal for use by software developers and designers, corporate power users, enthusiasts and retailers. The new PCT2485 can be easily paired with a non-touch monitor to provide the ultimate in office productivity. The wide range of video inputs allow for easy plug and play into practically any existing work environment including workstations, ultrabooks and tablets to light up the benefits of the touch-friendly Windows® 8 operating system.

Detailed Specs

Technical Information

Screen Size Class:

24"

Viewable Screen Size:

24"

Screen Mode:

Full HD

Response Time:

14 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Adjustable Display Angle:

Yes

Display Orientation:

Landscape/Portrait

Mount Type:

Desk Mountable
Wall Mountable

Backlight Technology:

LED

Features:

Security Lock

Video

Maximum Resolution:

1920 x 1080

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Projected Capacitive

Multi-touch Screen:

Yes

Interfaces/Ports

HDMI:

Yes

USB:

Yes

USB Standard:

USB 2.0

VGA:

Yes

Headphone:

Yes

DisplayPort:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Webcam:

Yes

Microphone:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

35 W

Standby Power Consumption:

1 W

Off-Mode Power Consumption:

1 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

Black

Height:

13.7"

Width:

20.4"

Depth:

1.8"

Weight (Approximate):

13.70 lb

Miscellaneous

Package Contents:

Helium PCT2485 24" Widescreen Multi-Touch Monitor
Power Cord
VGA Cable
HDMI Cable
USB Cable (A to B)
Audio-in Cable
User's Guide
Cleaning Cloth
Stylus
Cable Wrap

Certifications & Standards:

HID
UL/c-UL
FCC-Class B
CE
TUV/Bauar

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0012302367675, 0132017929101, 0810689070528, 0818274022310

UPC: 012302367675, 132017929101, 810689070528, 818274022310

EAN: 0012302367675, 0132017929101, 0810689070528, 0818274022310

UNSPSC: 43211903
