Planar 997-7415-01 POS System

Planar  -  19IN BLACK POINT OF SALE MONITOR, HID COMPLIANT PROJECTED CAPACITIVE MULTI-TOUCH SXGA LED LCD, VGA, HDMI, DP INPUTS, SPEAKERS, 90 DEGREE TILT.
  • Experience an energetic display of colors, contrast and pictures with the sxga lcd touchscreen monitor
  • Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Planar Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$559.00
In Stock
Planar 997-7415-01 POS System
Planar 997-7415-01 POS System
Planar 997-7415-01 POS System
Planar 997-7415-01 POS System
Planar 997-7415-01 POS System
Planar 997-7415-01 POS System Planar 997-7415-01 POS System Planar 997-7415-01 POS System Planar 997-7415-01 POS System Planar 997-7415-01 POS System
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 997-7415-01 POS System Overview

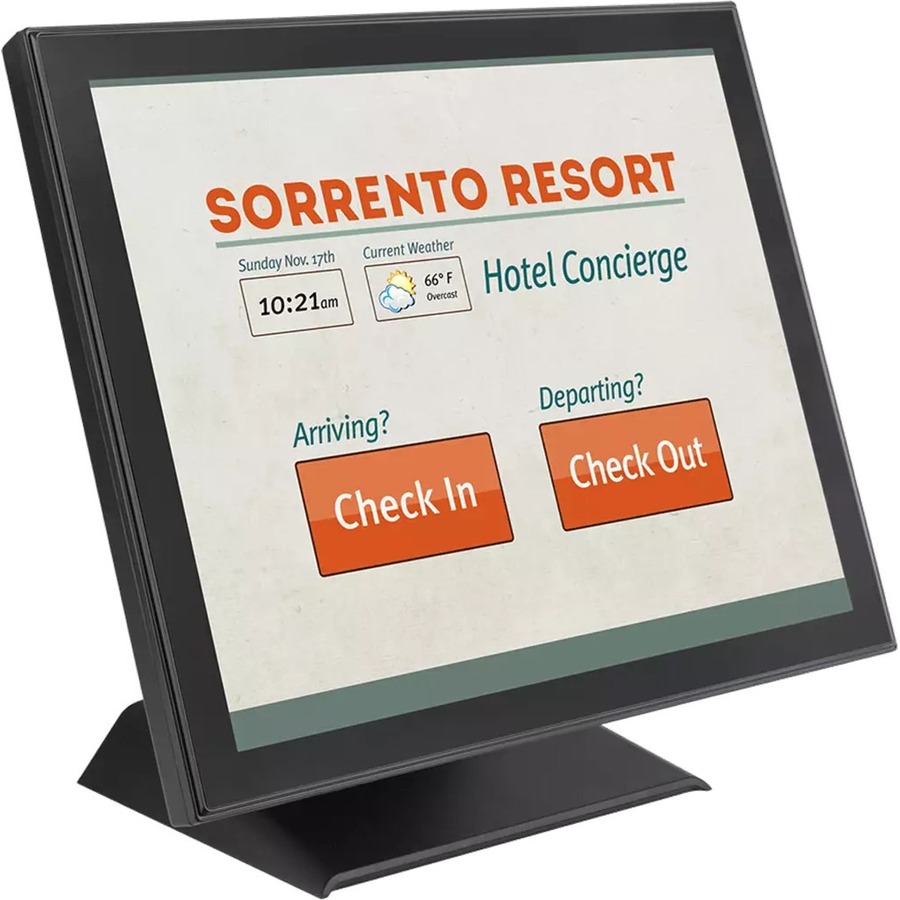

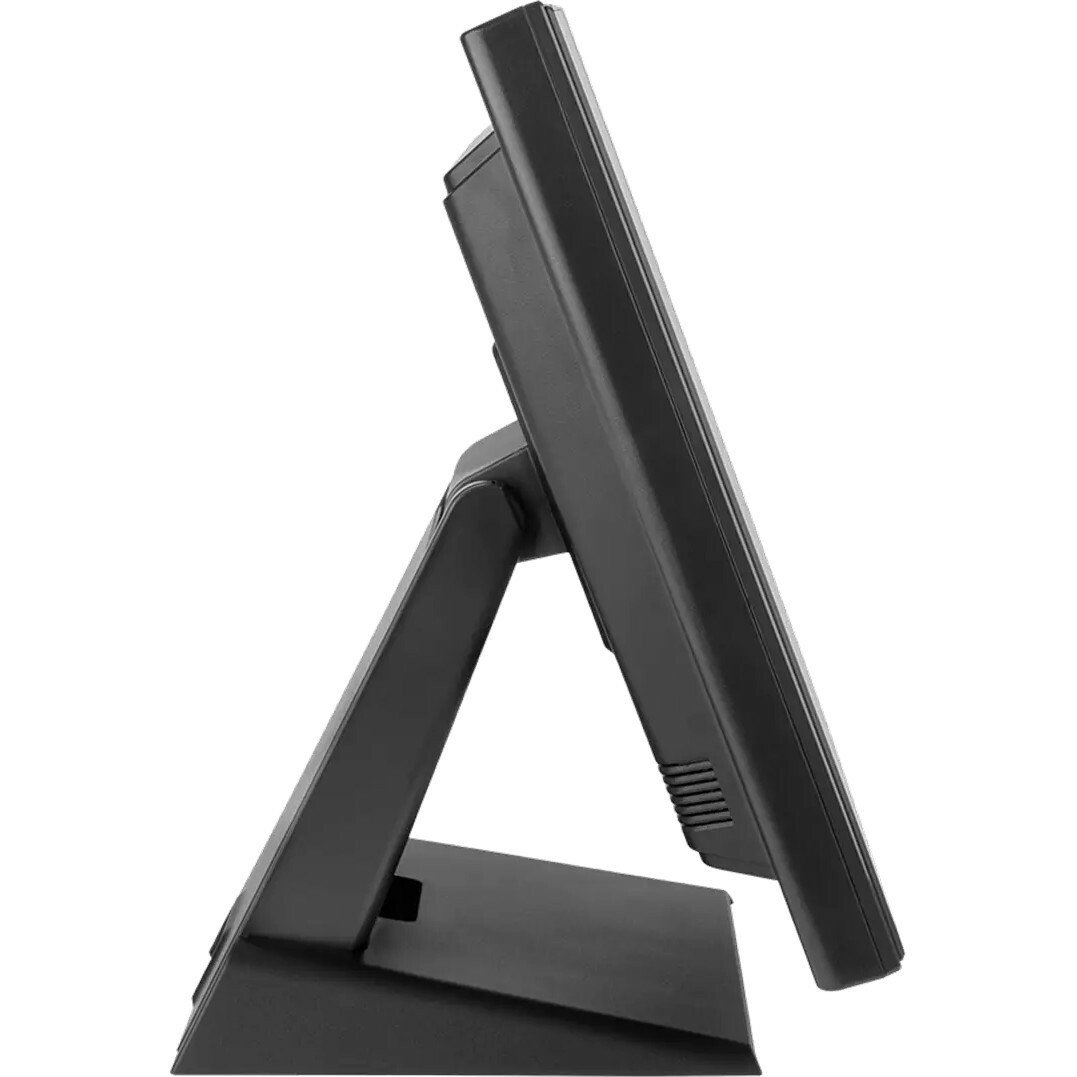

The Planar® PT1945P 19" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultrathin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1945P provides the ultimate interactive experience and is optimized with multitouch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI and DisplayPort input connectivity.
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
Edge LED
Features:
  • On-screen Display (OSD)
  • Cable Lock Slot
Vertical Frequency:
56 Hz to 75 Hz
Stand Adjustments:
Tilt
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
16.10 W
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
15.4"
Width:
17"
Depth:
8.6"
Weight (Approximate):
15.20 lb
Miscellaneous
Package Contents:
  • 19" Touch Screen Point of Sale Monitor
  • Power Cord
  • VGA Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • HDMI Cable
  • User's Guide
  • Landing strip
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689009832
UPC: 810689009832
EAN: 0810689009832
UNSPSC: 43211903
