Planar 998-0869-02 Digital Signage Display

The Planar 998-0869-02 Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Planar  -  Planar EPX100 4K LCD Display - 100" LCD - 3840 x 2160 - Direct LED - 700 Nit - 2160p - HDMI - USB - SerialEthernet - TAA Compliant
  • 100? Ultra HD LCD displays
  • High brightness of 700 nits
  • Wide color gamut
  • Designed for 24x7 operation
  • Built-in speakers and OPS slot
  • Supports landscape and portrait
  • Interactive touch model available
Read More

Need a different version? See all Planar Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Planar 998-0869-02 Digital Signage Display
Planar 998-0869-02 Digital Signage Display
Planar 998-0869-02 Digital Signage Display Planar 998-0869-02 Digital Signage Display
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 998-0869-02 Digital Signage Display Overview

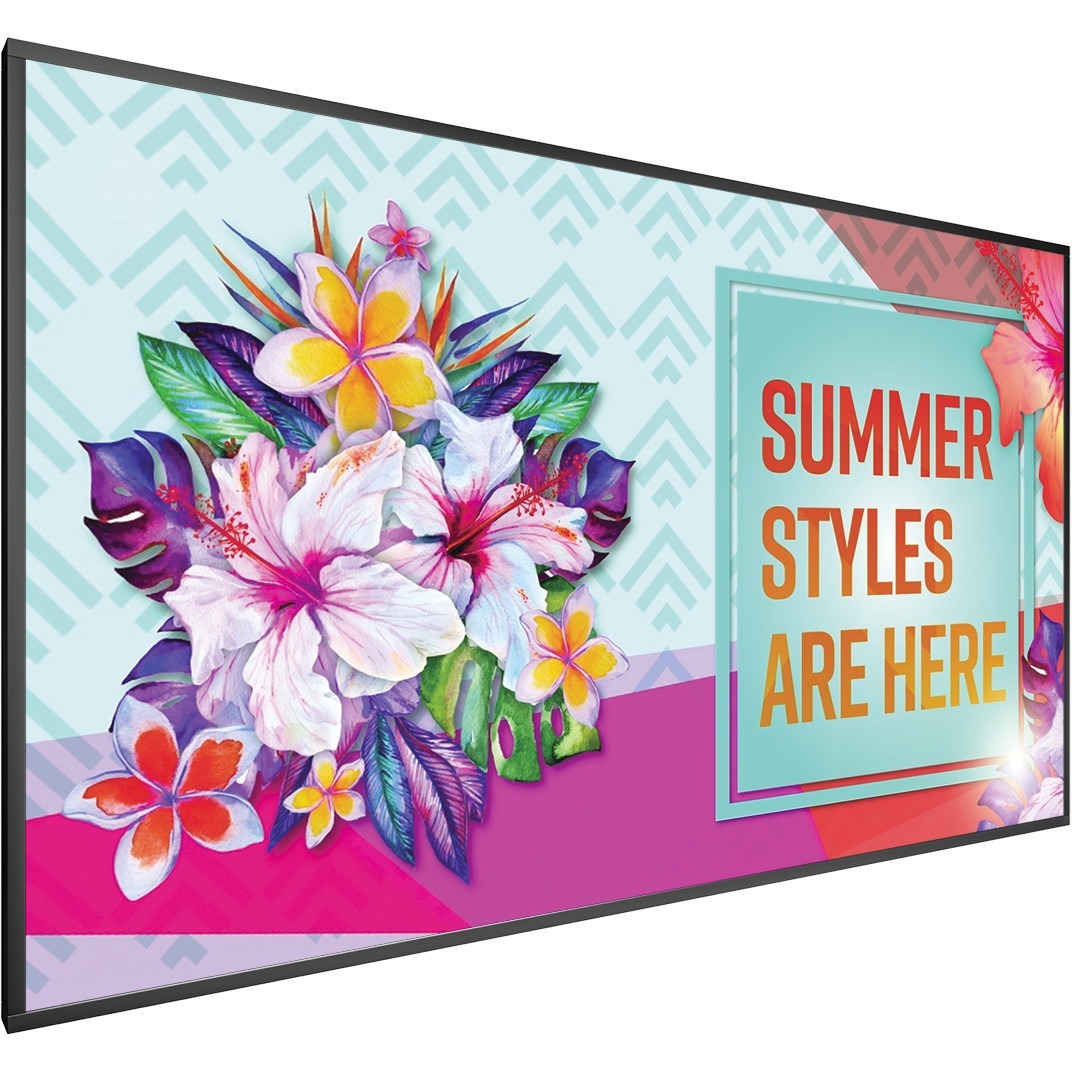

The Planar® EPX Series is a 100" 4K LCD display with Ultra HD resolution (3840 x 2160), high brightness of 700 nits and a wide color gamut for stunning image quality and deeper, richer color reproduction. Designed with commercial-grade features, the Planar EPX Series meets the demanding requirements of retail and corporate digital signage applications.

Also available in touch, the Planar EPX100-T brings interactivity to the 4K immersive experience.

Optimized for Digital Signage

  • 4K resolution for life-like picture quality
  • High brightness of 700 nits for high impact messaging in high ambient lighting environments
  • Wide color gamut for deeper, richer color reproduction
  • OPS (Open Pluggable Specification) slot enables seamless integration of compatible digital signage hardware
  • Logo-free bezel

High Performance

  • 4K@60Hz DisplayPort and HDMI connectivity including HDCP 2.2
  • Upscaling of Full HD or sub-1080p content to fill the entire 4K display area
  • 24x7 operation and reliability to support extended use
  • Durable, all metal enclosure
  • Fanless for whisper-quiet operation

Configuration Flexibility

  • Mountable in either portrait or landscape orientation
  • VESA mount compatibility
  • Simultaneous multi-source viewing of 2 or 4 sources at one time
  • Crestron control module available. Learn more

Interactive Touch Model

  • Pin-point clarity and accuracy for users at close viewing distances
  • Recognizes up to 20 simultaneous touch points at one time
  • Ships with a single license key of Planar® TouchMark™, the premier collaboration software solution. Additional licenses are available for purchase through our channel partners.
  • Perfect for annotation using the included, fine-tip passive stylus. Additional styli are available for purchase through our channel partners.
Technical Information
Bezel Width (Bottom):
1"
Bezel Width (Top):
1"
Bezel Width (Left):
1.30"
Bezel Width (Right):
1.30"
Display & Graphics
Screen Size:
100"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Pixel Pitch:
22.6 mil
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Color Depth:
10-bit
Brightness:
700 Nit
Color Gamut:
98% NTSC
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
1
Number of DisplayPorts:
2
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
VESA Mount Standard:
600 x 600
Height:
50.7"
Width:
89.3"
Depth:
4.5"
Weight (Approximate):
260 lb
Miscellaneous
Package Contents:
  • EPX100 4K LCD Display
  • Power cord
  • HDMI cable
  • IR cable
  • Remote control
  • 2 x lifting eyebolts (attached to the top edge of the display)
  • Cable clamps
Certifications & Standards:
  • cTUVus
    • Environmentally Friendly:
    Yes
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0810689006374
    UPC: 810689006374
    EAN: 0810689006374
    UNSPSC: 43211902
