Planar 998-2595-00 Digital Signage Display

Planar VM55MX-M2  -  Digital Signage Displays, Planar VM55MX-M2, 55" 1920x1080, 700 Nit 0.88mm Bezel To Bezel Width LCD Video Wall Display. 24X7, Landscape And Portrait, OPS Slot-In PC, Internal Power Supply And Electronics
  • Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
  • Experience luminescent visual images with LCD display
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
  • Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
  • Direct LED lighting offers a brighter picture result
  • 55" Signage Display - Designed for unwavering quality and dazzling picture clarity
Read More

Need a different version? See all Planar Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$5,504.74
Planar 998-2595-00 Digital Signage Display
Planar 998-2595-00 Digital Signage Display
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 998-2595-00 Digital Signage Display Overview

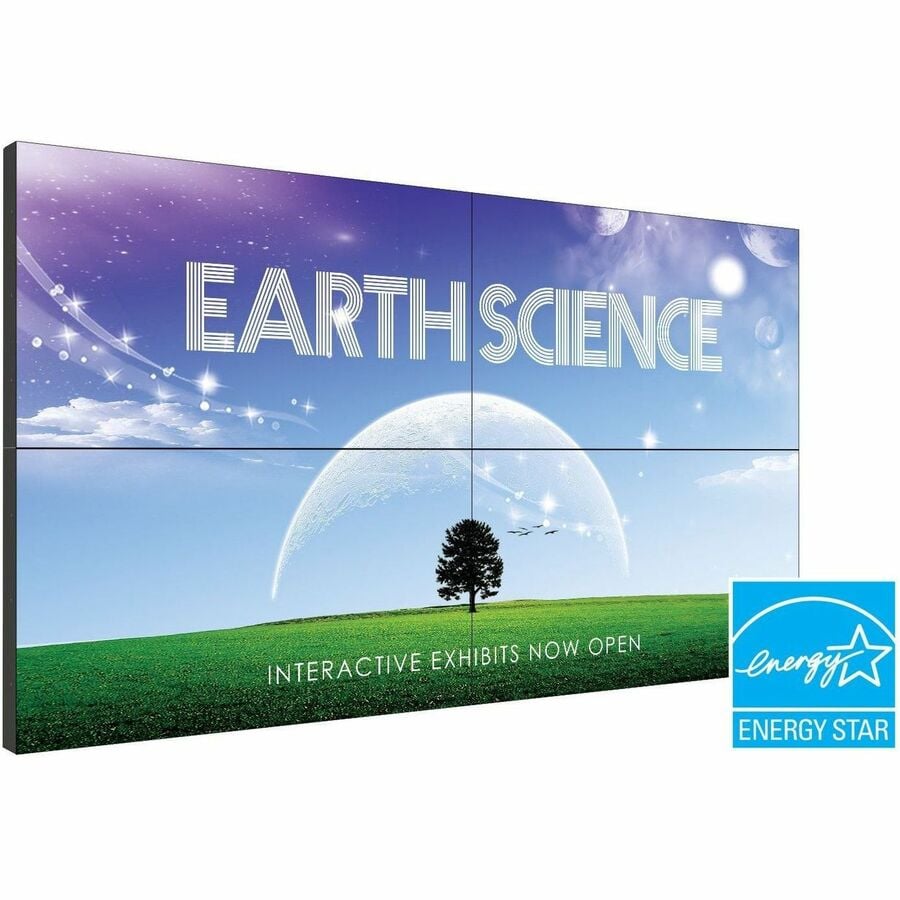

The Planar VM55MX-M2 is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 700- nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55MXM2 has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55MX-M2 delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55MX-M2 is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums. The Planar VM55MX-M2 is an ENERGY STAR certified video wall display.

Technical Information
Video Wall Compatible:
Yes
Bezel Width:
17.3 mil
Panel Technology:
In-plane Switching (IPS) Technology
Operation Hours:
24 Hours/7 Days
Display & Graphics
Number of Screens:
1
Video Wall Configuration:
10x10
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Pixel Pitch:
24.8 mil
Backlight Technology:
Direct LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
140,000:1
Color Depth:
10-bit
Brightness:
700 Nit
Color Gamut:
72% NTSC
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
1
Number of HDMI Inputs:
2
Number of DisplayPorts:
2
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
VESA Mount Standard:
400 x 400
Height:
26.8"
Width:
47.7"
Depth:
3.8"
Weight (Approximate):
52 lb
Miscellaneous
Package Contents:
  • VM55MX-M2 Display
  • 1.8m AC Power Cord (US)
  • 1.8m DisplayPort Cable
  • Remote Control
  • IR Receiver
  • IR loop Cable
  • RS-232 Cable
  • RS-232 Loop Cable
  • Alignment Brackets
  • Cable Clips
  • Quick Start Guide
Application/Usage:
  • Retail
  • Hospitality
  • Lobby
  • Museum
  • Commercial
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689008293
UPC: 810689008293
EAN: 0810689008293
UNSPSC: 43211902
