Planar 998-2598-00 Digital Signage Display

Planar VM55LX-X2  -  Digital Signage Displays, Planar VM55LX-X2, 55" 1920x1080, 500 Nit 2.5mm Bezel To Bezel Width LCD Video Wall Display. 24X7, Landscape And Portrait, OPS Slot-In PC, Internal Power Supply And Electronics
  • Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
  • Experience luminescent visual images with LCD display
  • Features full 1920 x 1080 HD resolution enabling sharp and clear images
  • Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
  • Direct LED backlighting technology enabled for a bright and sharp display
  • 55" Planar Signage Display - Ideal for showing different types of advertisements and content
Read More

Need a different version? See all Planar Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$3,595.20
Planar 998-2598-00 Digital Signage Display
Planar 998-2598-00 Digital Signage Display
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 998-2598-00 Digital Signage Display Overview

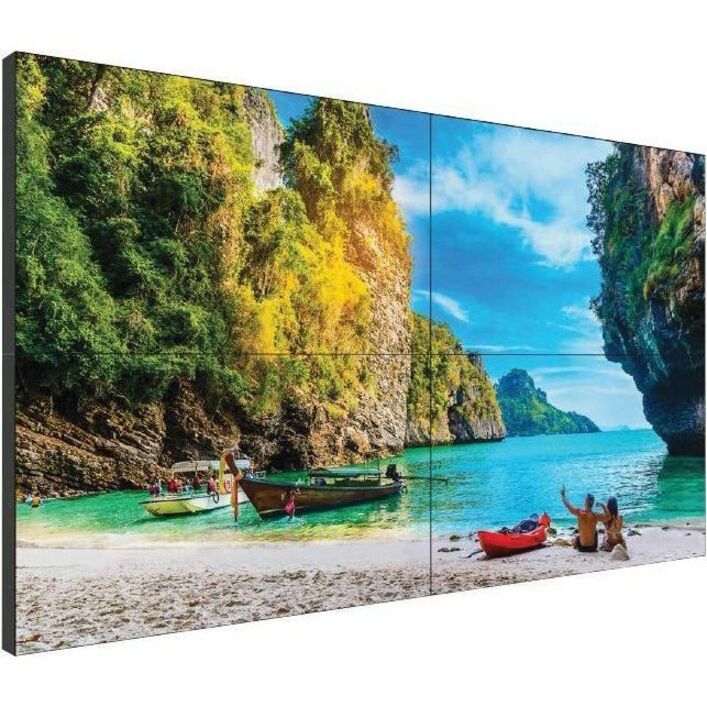

The Planar® VM55LX-X2 is a 55" tiled LCD video wall display with a 2.6mm tiled bezel width and 500-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55LXX2 has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55LX-X2 delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55LX-X2 is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums.

The Planar VM55LX-X2 is an ENERGY STAR® certified video wall display.

Technical Information
Video Wall Compatible:
Yes
Bezel Width:
0.10"
Bezel Width (Bottom):
35.4 mil
Bezel Width (Top):
66.9 mil
Bezel Width (Left):
66.9 mil
Bezel Width (Right):
35.4 mil
Panel Technology:
In-plane Switching (IPS) Technology
Operation Hours:
24 Hours/7 Days
Display & Graphics
Number of Screens:
1
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Pixel Pitch:
24.8 mil
Backlight Technology:
Direct LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
100,000:1
Color Depth:
10-bit
Brightness:
500 Nit
Color Gamut:
72% NTSC
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
1
Number of HDMI Inputs:
2
Number of DisplayPorts:
1
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
VESA Mount Standard:
400 x 400
Height:
26.9"
Width:
47.7"
Depth:
3.8"
Weight (Approximate):
55.12 lb
Miscellaneous
Package Contents:
  • VM55LX-X2 LCD Video Wall
  • 1.8m AC Power Cord
  • 1.8m DisplayPort cable
  • Remote Control
  • IR Receiver
  • IR Loop Cable
  • RS-232 Cable
  • RS-232 Loop Cable
  • Alignment Brackets
  • Cable Clips
  • Quick Start Guide
Application/Usage:
  • Commercial
  • Retail
  • Hospitality
  • Lobby
  • Museum
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

Advance Exchange

Item Numbers
GTIN: 0810689008323
UPC: 810689008323
EAN: 0810689008323
UNSPSC: 43211902
