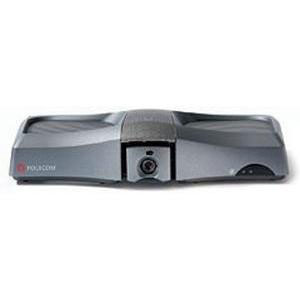

Polycom 2200-21500-001 Accessory

The Polycom 2200-21500-001 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Polycom Accessories - Polycom V500 Video Conference Equipment - 512Kbps

30 fps frame rate refresh swiftly and dodge human reception time to decrease the chances of motion blur.
Optimize communication via Ethernet connectivity
With the 10/100Base-TX technology, get up to 100Mbps data transfer rate over the twisted pair cable
Supports H.221 ITU-T recommendations for high-quality enhanced performance

Need a different version? See all Polycom Accessories Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Technical Information

ITU-T Recommendation:

H.221
H.231
H.225
H.245

Video Bridging:

Multipoint


Maximum Image Resolution:

704 x 576

Video

Video Signal Format:

NTSC/PAL

Maximum Video Resolution:

704 x 576

Maximum Frame Rate:

30 fps

Video Encoding:

H.261
H.263+
H.263++
H.264

Audio

Microphone Form Factor:

Internal

Network & Communication

Network Technology:

10/100Base-TX

Ethernet Technology:

Ethernet

Interfaces/Ports

Composite Video Out:

Yes

S-Video Out:

Yes

Audio Line Out:

Yes

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

Number of Composite Video Outputs:

Number of S-Video Outputs:

Number of Audio Line Out:

Physical Characteristics

Form Factor:

Desktop

Height:

2.7"

Width:

11.4"

Depth:

6.5"

Weight (Approximate):

2.50 lb

Miscellaneous

Package Contents:

V500 Videoconferencing System
Remote Control
Composite video cable
LAN cable
Power supply
Documentation:
Read Me First
Setting Up the V500 System
V500 system documentation CD

Additional Information:

Network Features:

Down speeding over IP
IP address conflict warning
Fast Connect IP for quick video connections
Auto SPID detection and line number configuration
MGC Click&View for individual screen layouts
Software Upgradeable Inverse Multiplexer (IMUX)
Security:
Integrated AES encryption
Account validation number entry
Secure password authentication
Unique factory default passwords
Administrator password
Encrypted password for web interface access
Standards-based H.243 MCU password
Do not disturb feature
Auto-Answer Point-to-Point (On/Off)
Allow access to user settings (On/Off)
System Management:
Diagnostics and software upgrades via PC, LAN
Integrated Web interface for remote management
Out-of-box setup from Web interface
Language independence between set-top interface and Web interface
Quality of Service and Experience:
IP Precedence (ToS)
Dynamic Bandwidth Allocation
Proactive Network Monitoring
Packet and jitter control
Network Address Translation (NAT) support
Automatic NAT discovery
Asymmetric speed control
Alternate Gatekeeper
CISCO Call Manager Integration
TCP/UDP fixed-port firewall support

Certifications & Standards:

Class A digital device Part 15 FCC
Class A digital apparatus Canadian ICES 003
ITU-T H.320
ITU-T H.323

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0610807035657

UPC: 610807035657

EAN: 0610807035657

UNSPSC: 45111902
