Protection Type:
Surge Protection
PowerDsine Parts Accessory Model Overview
Products and parts from PowerDsine.

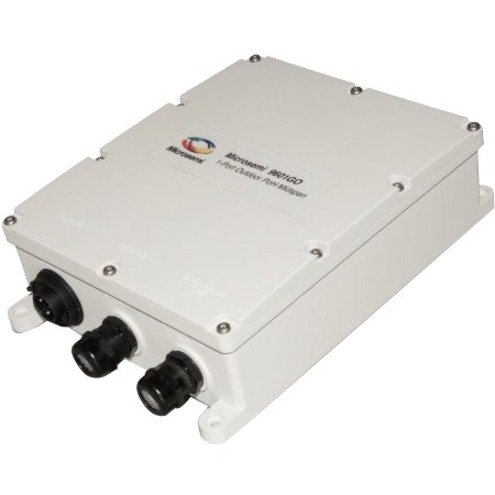

PowerDsine PD-9601GO/AC Accessory Overview
Microsemi's PD-9601GO is a 90W single-port Midspan offering a cost effective, PoH compliant solution for outdoor installations, guaranteeing 90 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoH data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9601GO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
54 V DC
Maximum Input Current:
2.50 A
Minimum Frequency:
50 Hz
Maximum Frequency:
60 Hz
Maximum Output Power:
90 W
Interfaces/Ports
Input Ports:
1 x 10/100/1000Base-T
Output Ports:
1 x 10/100/1000Base-T
Physical Characteristics
Form Factor:
External
Height:
2.8"
Width:
8.4"
Depth:
5.9"
Weight (Approximate):
5.38 lb
Miscellaneous
Compatibility:
- Wireless LAN Access Points
- Security Network Cameras
- IP Terminals
Certifications & Standards:
- CE
- VCCI
- IEEE 802.3af
- IEEE 802.3at
- FCC Part 15, Class B
- EN 55022 Class B
- EN 55024
- UL/IEC/EN 60950-1
- UL-69950-22
- EN60529
Environmentally Friendly:
Yes
Country of Origin:
Philippines
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0084117002263, 0844117002263, 0991428487132
UPC:
084117002263, 844117002263, 991428487132
EAN:
0084117002263, 0844117002263, 0991428487132
UNSPSC:
39121004
Get help from a Barcoding Expert!
The PowerDsine PD-9601GO/AC Accessory is also known as
PDS-PD9601GOAC
