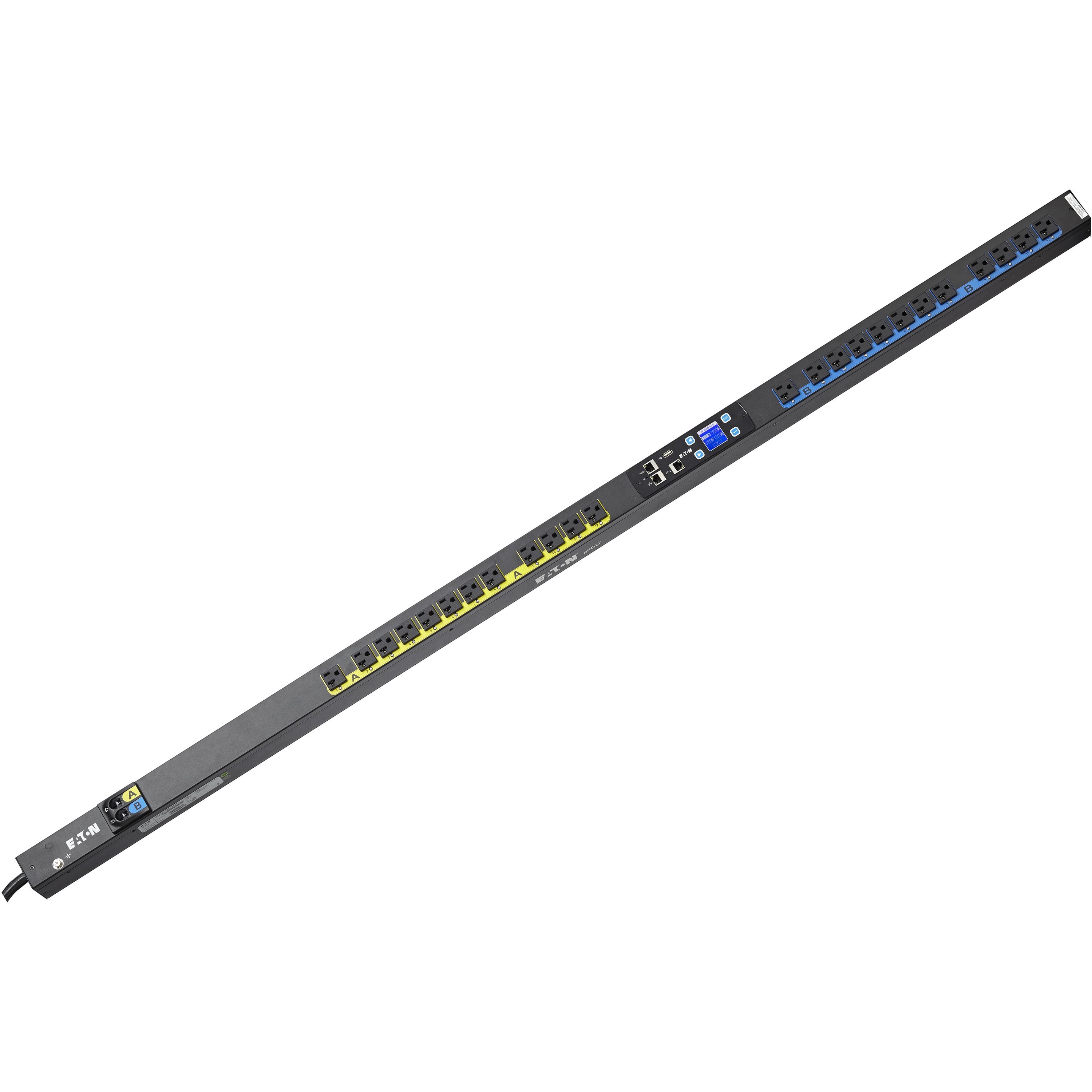

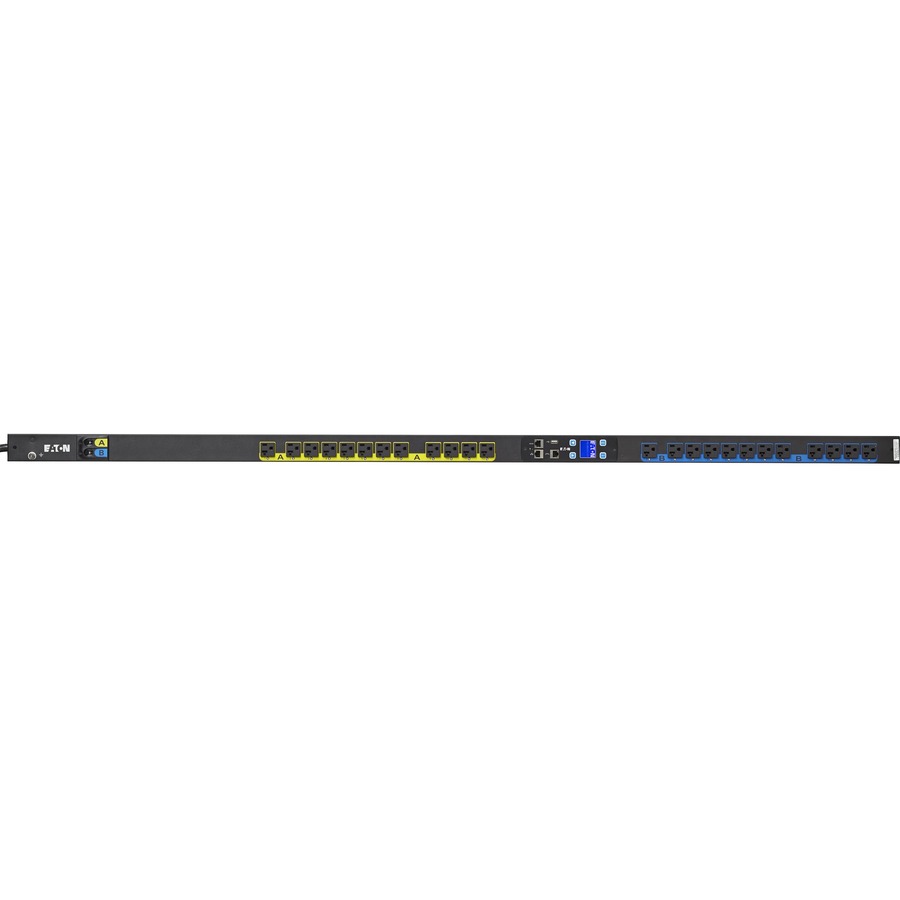

Powerware EMA108-10 Power Device

Powerware - EPDU MA 38U-A IN: L5-30P 24A 1 P OUT: 24X5-20R

Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
Manages entire environment remotely over the network from a single interface
ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Need a different version? See all Powerware Parts Accessories

Chat Now for Qty Discount

Add to Quote

$2,270.22

In Stock

Overview

Powerware Parts Accessory Model Overview

Products and parts from Powerware.

Powerware EMA108-10 Power Device Overview

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.

Outlet switching for on, off and reboot control to reduce management costs
Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug

Detailed Specs

Technical Information

PDU Type:

Switched

Plug/Connector Type:

NEMA L5-30P

Plug/Connector Detail:

1 x NEMA L5-30P

Receptacle Type:

NEMA 5-20R

Receptacle Detail:

24 x NEMA 5-20R

Power Description

Input Voltage:

120 V AC

Output Voltage:

120 V AC

Power Rating (Watt):

2880 W

Input Current:

24 A

Circuit Breaker:

Yes

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

Physical Characteristics

Product Color:

Black

Mounting Orientation:

Vertical

Rack Height:

38U

Cord Length:

10 ft

Height:

66.5"

Width:

2.1"

Depth:

2.6"

Miscellaneous

Certifications & Standards:

cUL

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0743172069177, 0743172069276, 0818283299734, 1486344138552

UPC: 743172069177, 743172069276, 818283299734

EAN: 0743172069177, 0743172069276, 0818283299734, 1486344138552

UNSPSC: 39121017

Reviews

Q&A

Get help from a Barcoding Expert!

The Powerware EMA108-10 Power Device is also known as POW-EMA10810
