Powerware EMI100-10 Products

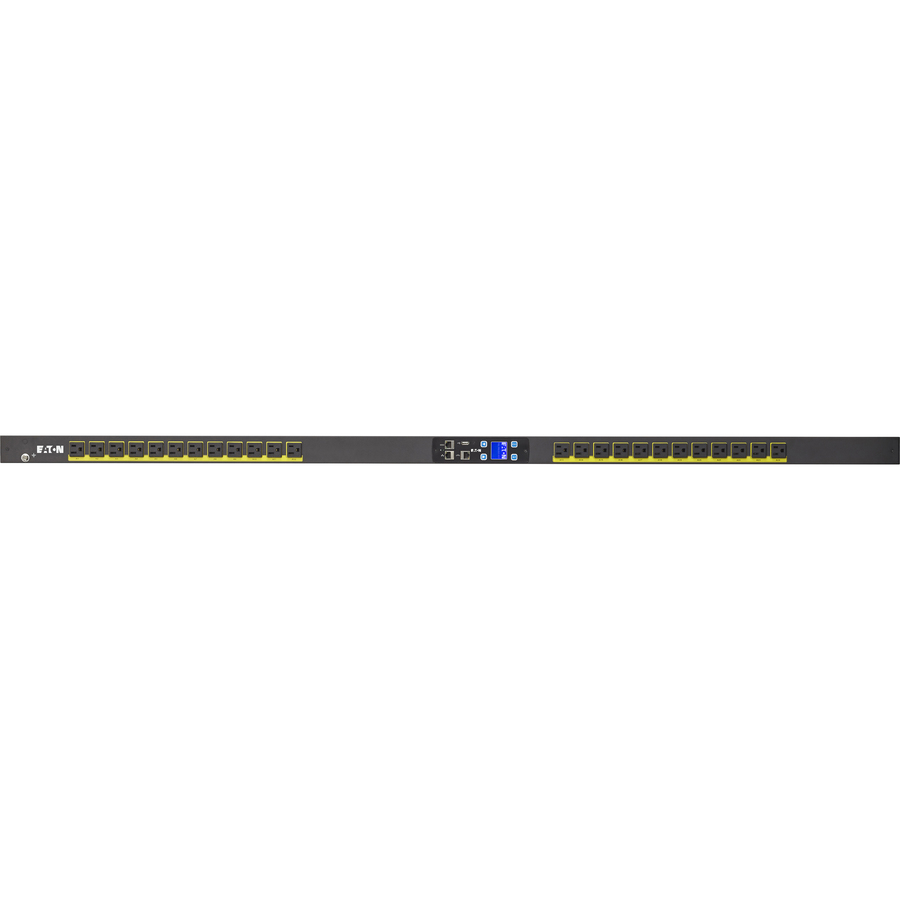

Powerware  -  EPDU MI 38U-A IN: 5-15P 12A 1P OUT: 24X5-15R
  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Read More

Need a different version? See all Powerware Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$961.82
In Stock
Powerware EMI100-10 Products
Powerware EMI100-10 Products
Powerware EMI100-10 Products Powerware EMI100-10 Products
Powerware Parts Accessory Model Overview
Products and parts from Powerware.
Powerware EMI100-10 Products Overview
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • Advanced LCD pixel display for local display of current, power, energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
  • Color coded outlet sections simplify load balancing
Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
24 x NEMA 5-15R
Power Description
Input Voltage:
120 V AC
Power Rating (Watt):
1440 W
Input Current:
12 A
Circuit Breaker:
Yes
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
Physical Characteristics
Mount Type:
Rack-mountable
Rack Height:
38U
Cord Length:
10 ft
Height:
66.5"
Width:
2.1"
Depth:
2.1"
Weight (Approximate):
12.50 lb
Miscellaneous
Certifications & Standards:
  • UL ITE 60950-1
  • FCC
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0743172048097, 0743172050366
UPC: 743172048097, 743172050366
EAN: 0743172048097, 0743172050366
UNSPSC: 39121017
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Powerware EMI100-10 Products is also known as POW-EMI10010
