Printronix T53X4-0120-000 Barcode Label Printer

The Printronix T53X4-0120-000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Printronix T5000r Series  -  Printronix ThermaLine T5304r Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Peel Facility - 4.09" Print Width - 7.99 in/s Mono - 300 dpi - Roll Fed, Fanfold, Label, Tag, Ticket, Film, Synthetic Media - 4.50" Label Width
Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.5 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • The printer is capable of printing sharp and detailed monochrome documents quickly
Read More
Add to Quote

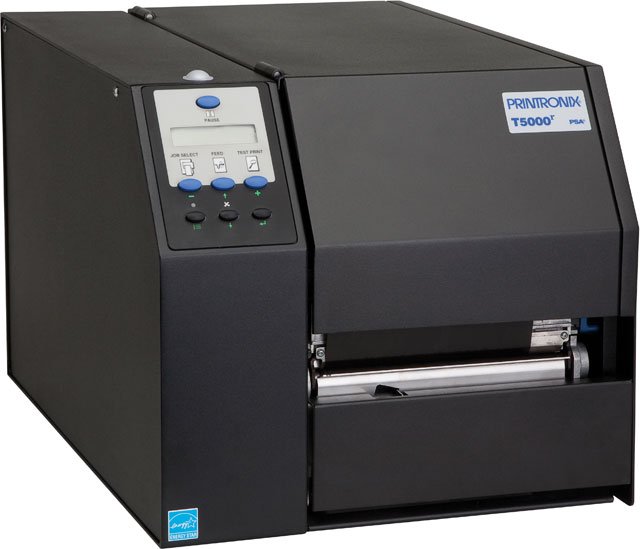

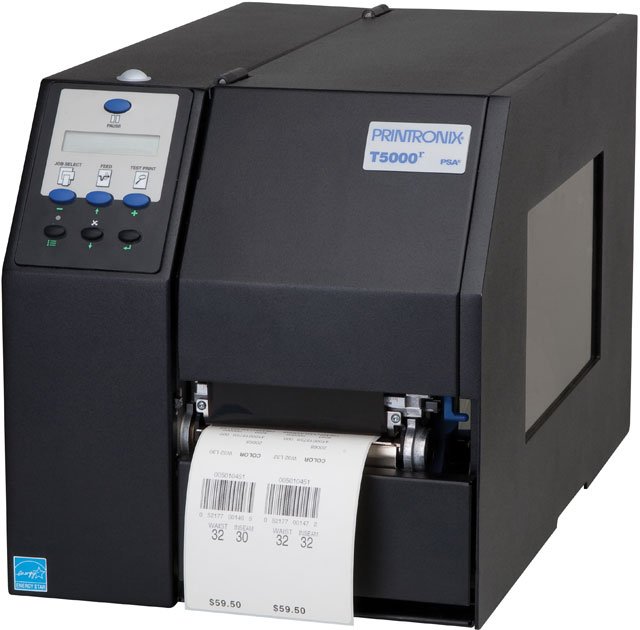

Printronix T5000r Series Barcode Label Printer Model Overview
The T5000r Series delivers dependable and reliable barcode printing for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5000r Series provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5000r Series converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5000r Series links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.
Printronix T53X4-0120-000 Barcode Label Printer Overview
Based on the 5r Multi-Technology Platform, the ThermaLine T5000r ENERGY STAR family is an industrial thermal bar code printer designed to operate in challenging environments. Through leadership by design, the T5000r combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements. The T5000r supports the widest range of connectivity and control without sacrificing performance and provides the ability to meet new application and compliance requirements.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.99 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Aztec Code
  • BC35
  • BC412
  • Codabar
  • Code 11
  • Code 35
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • EAN-8
  • EAN-13
  • FIM
  • GS1-128
  • GS1 DataBar
  • Interleaved 2 of 5
  • ITF-14
  • Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • PostBar
  • ROYALBAR
  • Telepen
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPCSHIP
  • UPS11
Peel Facility:
Yes
Application/Usage:
Desktop
Features:
Tear-off
Memory
Standard Memory:
64 MB
Memory Technology:
DRAM
Flash Memory:
16 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Label
  • Tag
  • Ticket
  • Film
  • Synthetic Media
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Label Core Size:
2.99"
Fonts & Emulation
Language Emulation:
  • PGL
  • ZGL
  • TGL
  • IGL
  • STGL
  • DGL
  • IEGL
  • MGL
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
11.7"
Depth:
20.5"
Miscellaneous
Platform Supported:
PC
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Printronix T53X4-0120-000 Barcode Label Printer is also known as PTX-T53X4-0120-000 or T53X40120000.
