Pryme SPM-4210 Accessory

Pryme Two-Way - Storm Trooper WATER-PROOF SPEAKER MICROPHONE with Hi/Low Volume control switch and NC (Noise Cancelling) Mic. Designed to meet IP67 standards for water-proof and dust resistance and comes with a 3 year warranty. Includes 3.5mm jack for listen only earphones.

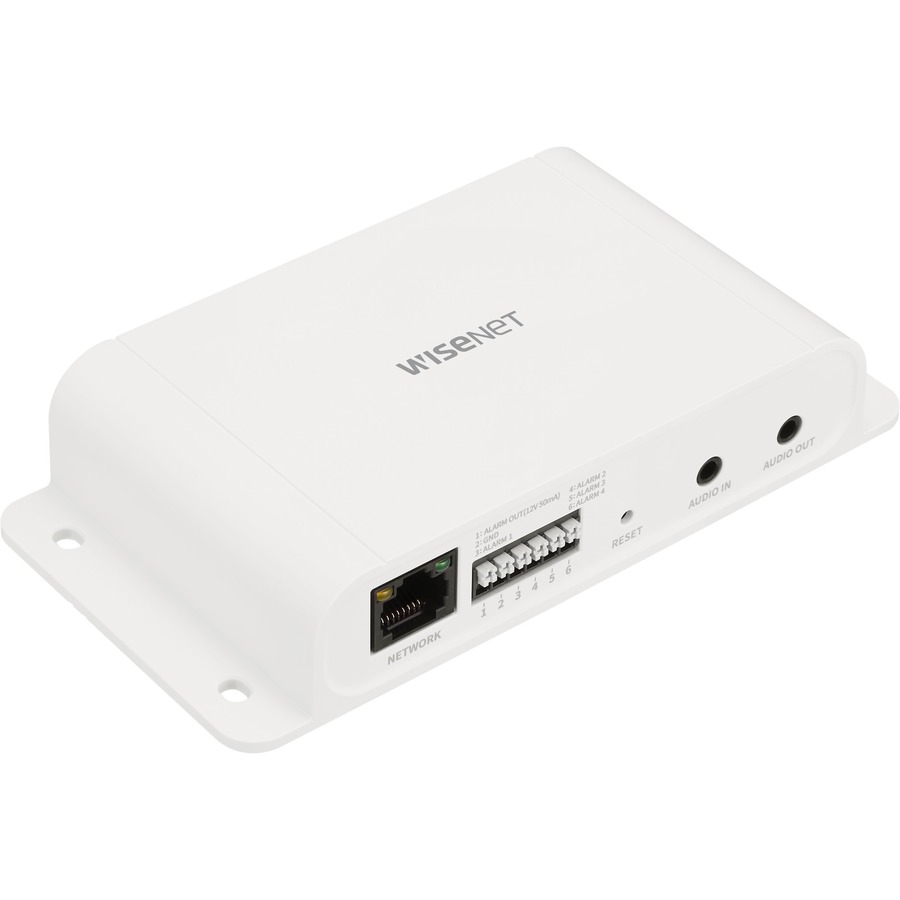

Alarm/Audio I/O Box for PTZ PLUS cameras
1 RJ45 port
4 Selectable I/O ports
2 Audio I/O ports (1 each)
Power : PoE / Consumption: Maximum 4.5W
Dimensions :143mm x 73mm x 27.3mm (5.63" x 2.87" x 1.07")
Weight : 171g (0.38lb)
Color : White

Need a different version? See all Pryme Two-Way Two-way Radios

Chat Now for Qty Discount

Add to Quote

$254.82

In Stock

Detailed Specs

Technical Information

Device Supported:

PTZ Camera
Fire Alarm

Features:

Plug-in Installation
Microphone
PoE

Physical Characteristics

Product Color:

White

Height:

1.1"

Width:

2.9"

Depth:

5.6"

Weight (Approximate):

6.03 oz

Miscellaneous

Additional Information:

Audio In: Selectable(microphone in/line in)
Audio Out: Line out, Maximum output level: 1Vrms
Ethernet: RJ-45 (10/100BASE-T)
Application Programming Interface: SUNAPI (HTTP API)
Webpage Language: Web Viewer English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer: Support, Plugin-free
Memory: 4GB RAM, Flash 256MB
Operating Temperature / Humidity: -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Start up should be done at above -30°C
Storage Temperature / Humidity: -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Input Voltage: PoE(IEEE802.3af, Class3)
Power Consumption: Maximum 4.5W
RAL Code: RAL9003
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP

Alarm I/O:

Configurable 4 Ports
12 V DC output, maximum load 50 mA

Audio Compression

G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz

Security

HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)

Compatibility:

Hanwha Techwin Wiper PTZ Cameras:

4K 30x IR XNP-9300RW
4K 25x IR XNP-9250R
4K 25x XNP-9250
6MP 30x IR Wiper XNP-8300RW
6MP 25x IR XNP-8250R
6MP 25x XNP-8250
2MP 40x XNP-6400RW
2MP 40x XNP-6400R
2MP 40x XNP-6400

Item Numbers

GTIN: 8801089195968

EAN: 8801089195968
