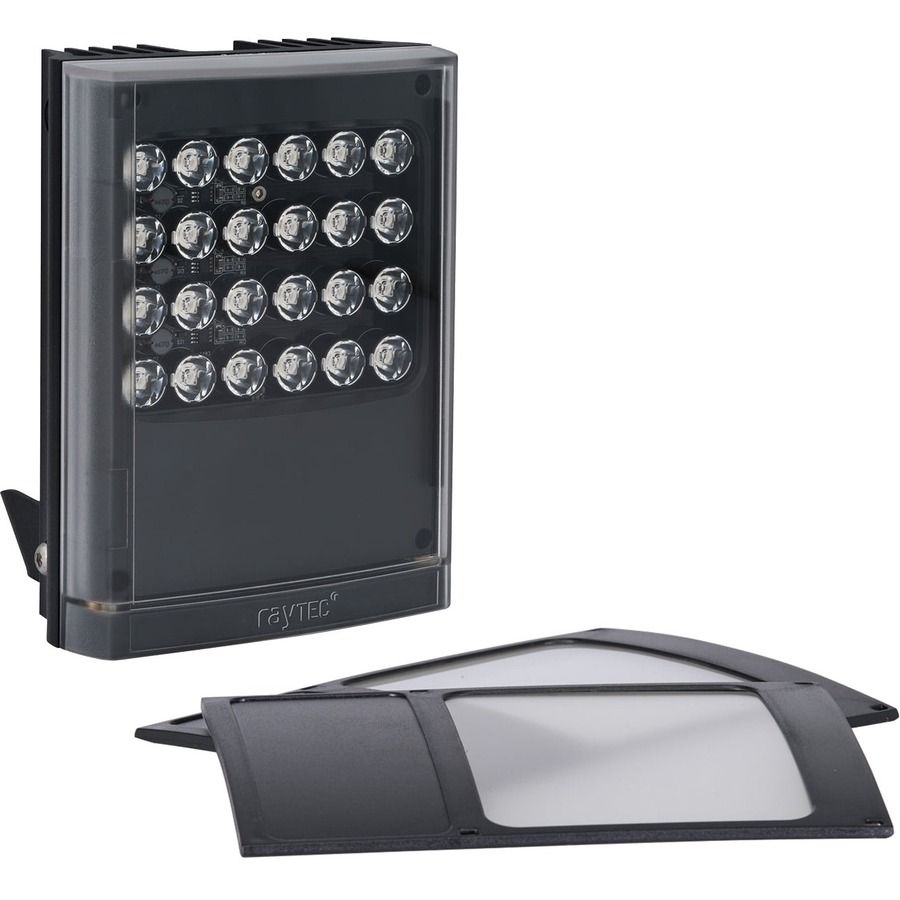

Raytec VAR2-I8-1-C Accessory

Raytec - Raytec VAR2-i8-1 Long Range Infra-Red Illuminator - Interchangeable Lens, Hot-spot Reduction Technology (HRT), LED Indicator, LED Illumination, Platinum Elite SMT LED Technology, Advanced Security Setting, Green Technology, Night Vision, Remote Control, Automatic On/Off, Programmable, ... - Surveillance, Lighting Control - Black

Need a different version? See all Raytec Parts Accessories

Chat Now for Qty Discount

$1,217.63

Raytec VAR2-I8-1-C Accessory

Technical Information

Device Supported:

Video Surveillance System
Smart Light System
Lighting Control

Features:

Interchangeable Lens
Hot-spot Reduction Technology (HRT)
LED Indicator
LED Illumination
Platinum Elite SMT LED Technology
Advanced Security Setting
Green Technology
Night Vision
Remote Control
Automatic On/Off
Programmable
Energy Saving

Physical Characteristics

Product Color:

Black

Height:

7"

Width:

2.6"

Depth:

5"

Weight (Approximate):

3.60 lb

Miscellaneous

Additional Information:

Illuminator:

Max Distance: 3 5 0 m (1,14 8 f t)

Angle:

Standard pack includes 10° circular +
35° x 10° (fitted as standard) and
60° x 25°elliptical lenses.
Additional optional lenses:
80° x 30°, 120° x 50°
Input: 12/24V AC/DC
Consumption 46W
Beam Shape Elliptical with HRT (Hot-spot Reduction
Technology)
Beam Angle System VARIO Interchangeable Lens System
LED type Platinum Elite SMT LEDs
Number of LEDs 24
Wavelength 850nm (940nm options available)
Temperature Range -50° to +50°C (-58 to 122°F)

Integrated Command and Control Technology

Integrated Standard Features

Power adjust from 20-100%
In-built photocell for automatic on/off operation
Photocell following output
Photocell sensitivity adjust
LED status indicator provides status on
performance of the unit
LED status indicator on/off
Disable programming mode

Advanced Features (accessed via VARIO remote control)

Timer function (up to 30 mins)
Telemetry control
Remote Dimming
Restore factory default settings
Optional PIN to lock in settings and limit access
Remote Control can be disabled for improved security

Application/Usage:

Surveillance

Certifications & Standards:

IP66

Country of Origin:

United Kingdom

Item Numbers

UNSPSC: 46111703

Get help from a Barcoding Expert!

The Raytec VAR2-I8-1-C Accessory is also known as RAY-VAR2-I8-1-C
