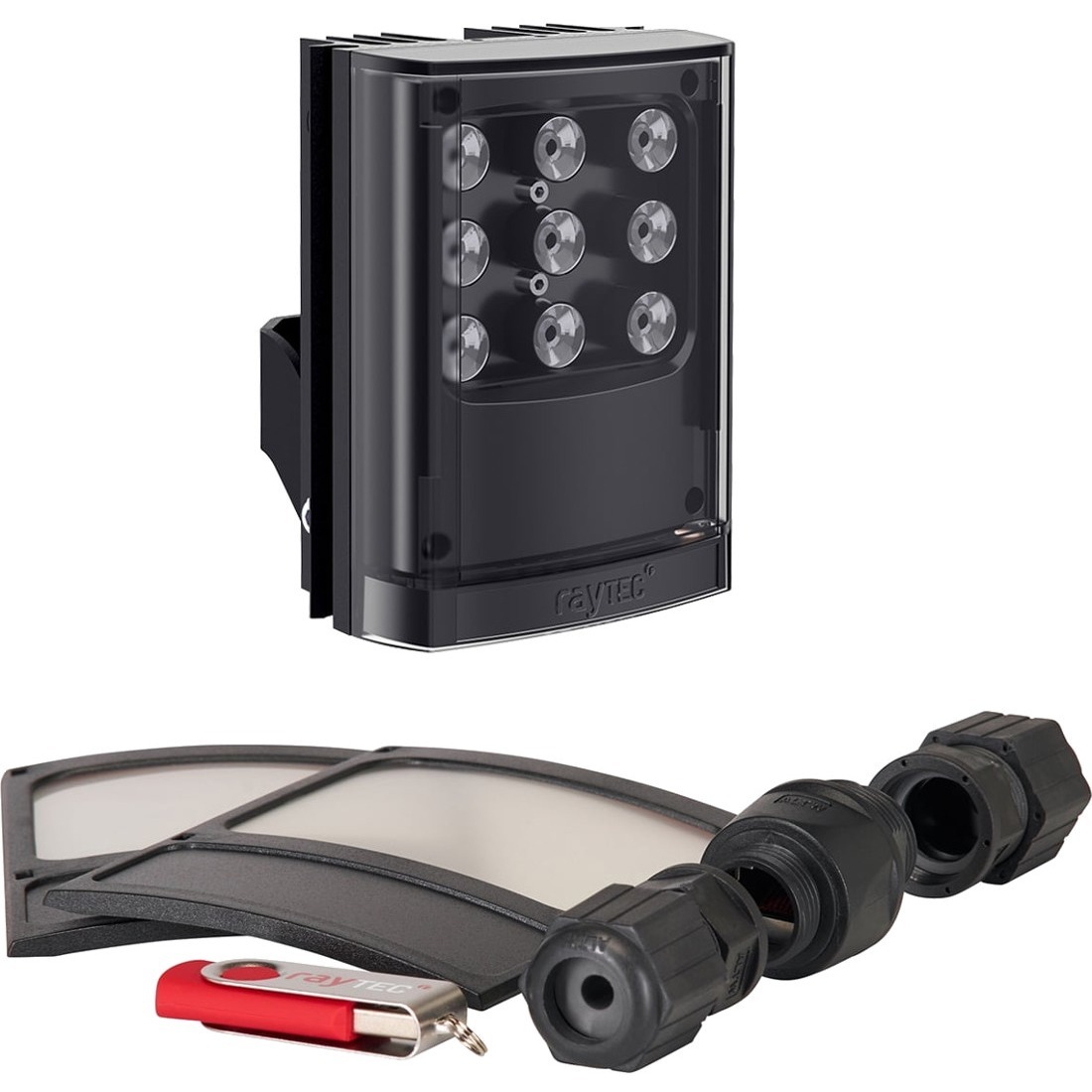

Raytec VAR2-IPPOE-HY4-1 Security Camera

Raytec  -  Raytec VAR2-IPPoE-hy4-1 Medium Range Hybrid Network Illuminator - Interchangeable Lens, Dedicated IP Lighting, Integrated Web Interface, Programmable, Hot-spot Reduction Technology (HRT), Platinum Elite SMT LED Technology, Night Vision, Even Illumination, 2 in 1 Hybrid, Advanced User Defined Settings, Automatic On/Off, ... - Access Control, Surveillance - Black, White

Need a different version? See all Raytec Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,238.28
Raytec VAR2-IPPOE-HY4-1 Security Camera
Raytec VAR2-IPPOE-HY4-1 Security Camera
Technical Information
Device Supported:
  • Network Camera
  • Surveillance Camera
Features:
  • Interchangeable Lens
  • Dedicated IP Lighting
  • Integrated Web Interface
  • Programmable
  • Hot-spot Reduction Technology (HRT)
  • Platinum Elite SMT LED Technology
  • Night Vision
  • Even Illumination
  • 2 in 1 Hybrid
  • Advanced User Defined Settings
  • Automatic On/Off
  • PoE
Physical Characteristics
Product Color:
  • Black
  • White
Color Details:
  • White - Light
Height:
5"
Width:
4"
Depth:
2.5"
Weight (Approximate):
2.10 lb
Miscellaneous
Additional Information:
Illuminator:
  • Wavelength Infra-Red 850nm (940nm options available) White-Light
  • Max Distance 130m (427ft) 70m (230ft)
  • Total Lumens n/a 745lm per luminaire
  • Colour Temp n/a 6000K~
  • Colour Reproduction Index n/a >70
  • Angle Standard pack includes 10 circular + 35 x 10 (fitted as standard) and 60 x 25 elliptical lenses Additional optional lenses: 80 x 30 and 120 x 50
  • Input PoE+ IEEE 802.3at or 24V DC
  • Consumption 15W
  • Data Input Cat 5 Cable
  • Number of LEDs 6 x Infra-Red, 3 x White-Light
  • Temperature Range - 50° to +50°C (-58 to 122°F)
  • Cable Length 2 x 2.5m
  • Minimum System Requirements PC running Windows 7 with IE8 and network access.
Integrated Command and Control Technology:

Hardware Features:
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • External telemetry input
Quick Access Software Features (provided as standard via integrated web interface):
  • Individual or group control (Groups up to 16 units)
  • Individual control for Infra-Red and White-Light
  • Power On/Off
  • Power control: 20-100%
  • Boost: 120% power for 10 seconds
  • Deterrent feature with selectable patterns and speed
Advanced User Defined Software Features: (provided as standard via integrated web interface)
  • Timer functions
  • Soft start turn on
  • 3 x deterrent patterns
  • 3 x deterrent speeds
  • Selectable external telemetry input:volt free or TTL
  • Individually trigger Infra-Red and White-Light
  • Photocell sensitivity trigger level
  • Assign illuminator to group for collective control
  • Administrator and user access levels
  • Password Protection: create user and administrator passwords
  • Assign name, group name and IP address
  • Restore factory defaults
  • Restart/reboot
  • Software upgrade
  • Standard and advanced diagnostics
  • Supported protocols include HTTP, Local and VMS operating modes (including combinations)
  • Ping command functionality
System Integration (Application Programming Interface):
  • API for integration into 3rd party platforms
  • API for integration into network devices via HTTP commands
Application/Usage:
  • Access Control
  • Surveillance
Certifications & Standards:
IP66
Country of Origin:
United Kingdom
Item Numbers
UNSPSC: 46111703
