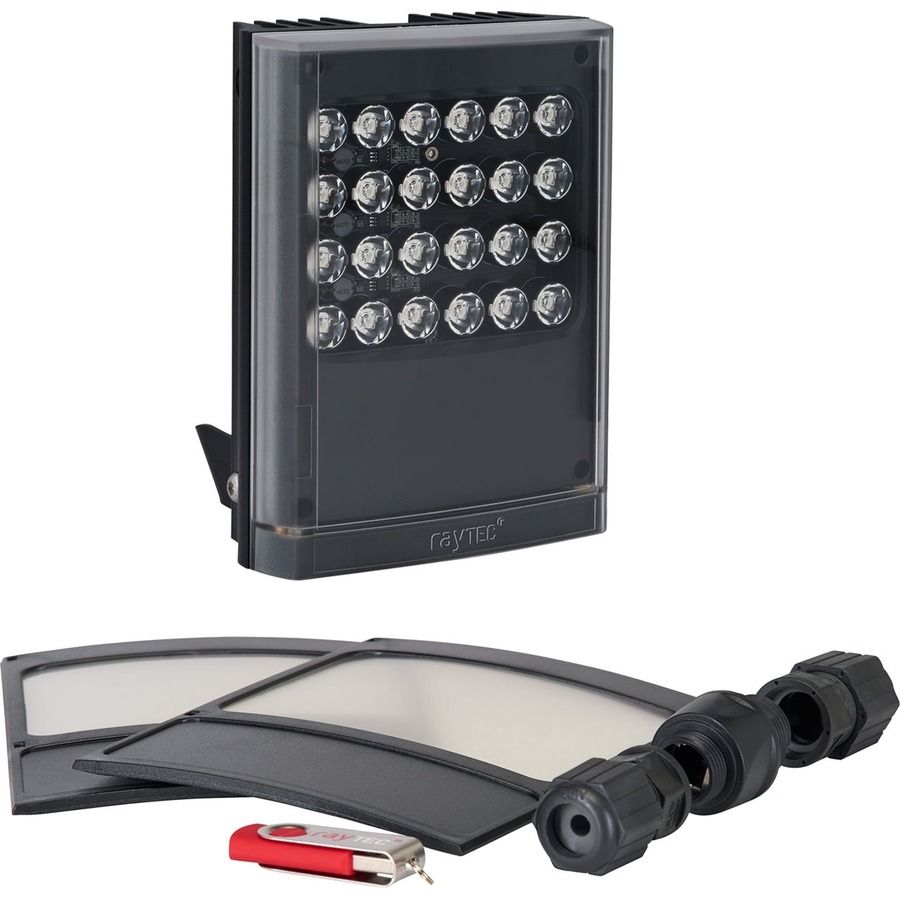

Raytec VAR2-IPPOE-HY8-1 Accessory

Raytec - Raytec VAR2-IPPoE-hy8-1 Long Range Hybrid Network Illuminator - Integrated Web Interface, Interchangeable Lens, Programmable, Automatic On/Off, Hot-spot Reduction Technology (HRT), Dedicated IP Lighting, 2 in 1 Hybrid, Advanced User Defined Settings, Platinum Elite Twin-Core SMT LED Technology, Night Vision, Even Illumination, ... - Surveillance, Access Control - Black

Need a different version? See all Raytec Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,744.85

Detailed Specs

Technical Information

Device Supported:

Network Camera
Video Surveillance System

Features:

Integrated Web Interface
Interchangeable Lens
Programmable
Automatic On/Off
Hot-spot Reduction Technology (HRT)
Dedicated IP Lighting
2 in 1 Hybrid
Advanced User Defined Settings
Platinum Elite Twin-Core SMT LED Technology
Night Vision
Even Illumination
LED Illumination
PoE

Physical Characteristics

Product Color:

Black

Height:

Width:

Depth:

2.6"

Weight (Approximate):

3.60 lb

Miscellaneous

Additional Information:

Illuminator:

Wavelength Infra-Red 850nm (940nm options available) White-Light
Max Distance 290m (951ft) 144m (472ft)
Total Lumens n/a 2981lm per luminaire
Colour Temp n/a 6000K~
Colour Reproduction Index n/a >70
Angle Standard pack includes 10 circular + 35 x 10 (fitted as standard) and 60 x 25 elliptical lenses Additional optional lenses: 80 x 30 and 120 x 50
Input 60W PoE++ (4-pair PoE)* or 24V DC
Consumption 43W
Data Input Cat 5 Cable
Number of LEDs 12 x Infra-Red, 12 x White-Light
Temperature Range - 50° to +50°C (-58 to 122°F)
Cable Length 2 x 2.5m
Minimum System Requirements PC running Windows 7 with IE8 and network access.

Integrated Command and Control Technology:

Hardware Features:

In-built photocell for automatic on/off operation
Photocell following output
External telemetry input

Quick Access Software Features (provided as standard via integrated web interface):

Individual or group control (Groups up to 16 units)
Individual control for Infra-Red and White-Light
Power On/Off
Power control: 20-100%
Boost: 120% power for 10 seconds
Deterrent feature with selectable patterns and speed

Advanced User Defined Software Features: (provided as standard via integrated web interface):

Timer functions
Soft start turn on
3 x deterrent patterns
3 x deterrent speeds
Selectable external telemetry input:volt free or TTL
Individually trigger Infra-Red and White-Light
Photocell sensitivity trigger level
Assign illuminator to group for collective control
Administrator and user access levels
Password Protection: create user and administrator passwords
Assign name, group name and IP address
Restore factory defaults
Restart/reboot
Software upgrade
Standard and advanced diagnostics
Supported protocols include HTTP, Local and VMS operating modes (including combinations)
Ping command functionality

System Integration (Application Programming Interface):

API for integration into 3rd party platforms
API for integration into network devices via HTTP commands

Application/Usage:

Surveillance
Access Control

Certifications & Standards:

IP66

Country of Origin:

United Kingdom

Item Numbers

UNSPSC: 46111703
