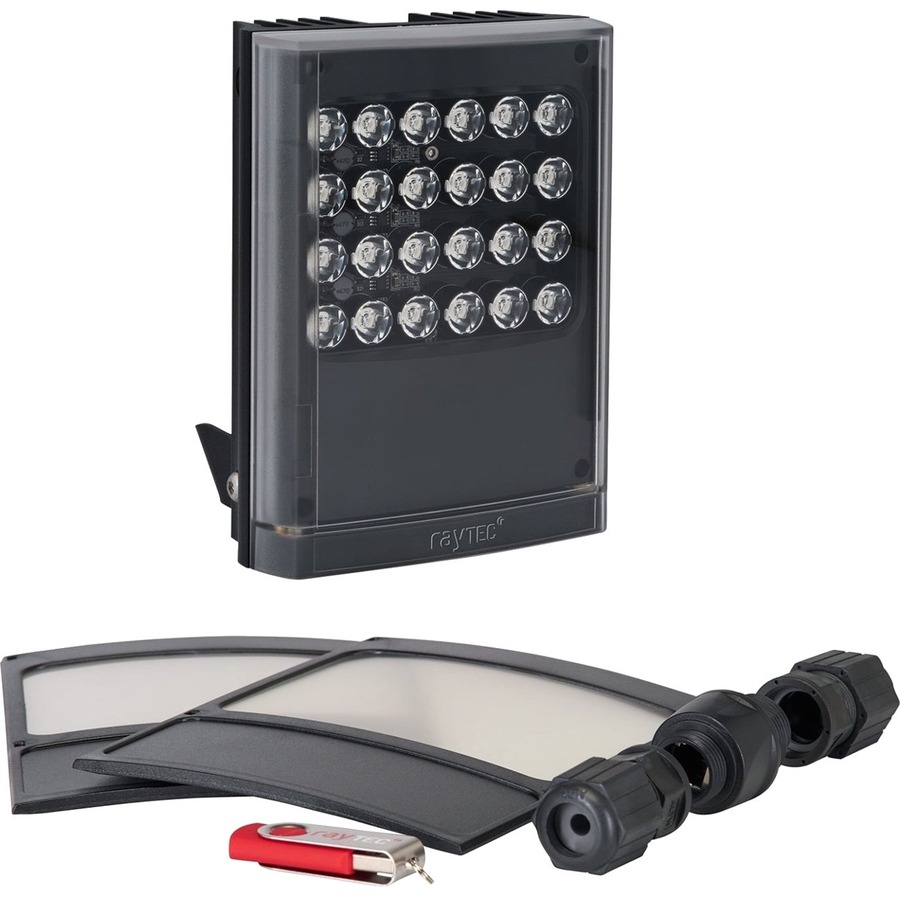

Raytec VAR2-IPPOE-I8-1 Accessory

Raytec - Raytec VAR2-IPPoE-i8-1 Long Range Infra-Red Network Illuminator - PoE, Platinum Elite SMT LED Technology, Hot-spot Reduction Technology (HRT), Interchangeable Lens, Programmable, Integrated Web Interface, Advanced User Defined Settings, Dedicated IP Lighting, Automatic On/Off - Black

Need a different version? See all Raytec Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,275.80

Detailed Specs

Technical Information

Device Supported:

Network Camera
Smart Light System

Features:

PoE
Platinum Elite SMT LED Technology
Hot-spot Reduction Technology (HRT)
Interchangeable Lens
Programmable
Integrated Web Interface
Advanced User Defined Settings
Dedicated IP Lighting
Automatic On/Off

Physical Characteristics

Product Color:

Black

Height:

Width:

Depth:

2.6"

Weight (Approximate):

3.60 lb

Miscellaneous

Additional Information:

Illuminator:

Max Distance 350m (1148 ft)
Angle Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50°
Input 60W PoE++ (4-pair PoE)* or 24V DC
Consumption 49W
Data Input Cat 5 Cable
Number of LEDs 24
Wavelength 850nm (940nm options available)
Temperature Range -50° to +50°C (-58 to 122°F)
Cable Length 2 x 2.5m
Minimum System Requirements PC running Windows 7 with IE8 and network access.

Integrated Command and Control Technology:

Hardware Features:

In-built photocell for automatic on/off operation
Photocell following output
External telemetry input

Quick Access Software Features (provided as standard via integrated web interface):

Individual or group control (Groups up to 16 units)
Power On/Off
Power control: 20-100%
Boost: 120% power for 10 seconds
Deterrent feature with selectable patterns and speeds

Advanced User Defined Software Features: (provided as standard via integrated web interface)

Timer functions
Soft start turn on
3 x deterrent patterns
3 x deterrent speeds
Selectable external telemetry input: volt - free or TTL
Photocell sensitivity trigger level
Assign illuminator to group for collective control
Administrator and user access levels
Password Protection: create user and administrator passwords
Assign name, group name and IP address
Restore factory defaults
Restart/reboot
Software upgrade
Standard and advanced diagnostics
Supported protocols include HTTP, Local and VMS operating modes (including combinations)
Ping command functionality

System Integration (Application Programming Interface):

API for integration into 3rd party platforms
API for integration into network devices via HTTP commands

Certifications & Standards:

IP66

Country of Origin:

United Kingdom

Item Numbers

UNSPSC: 46111703
