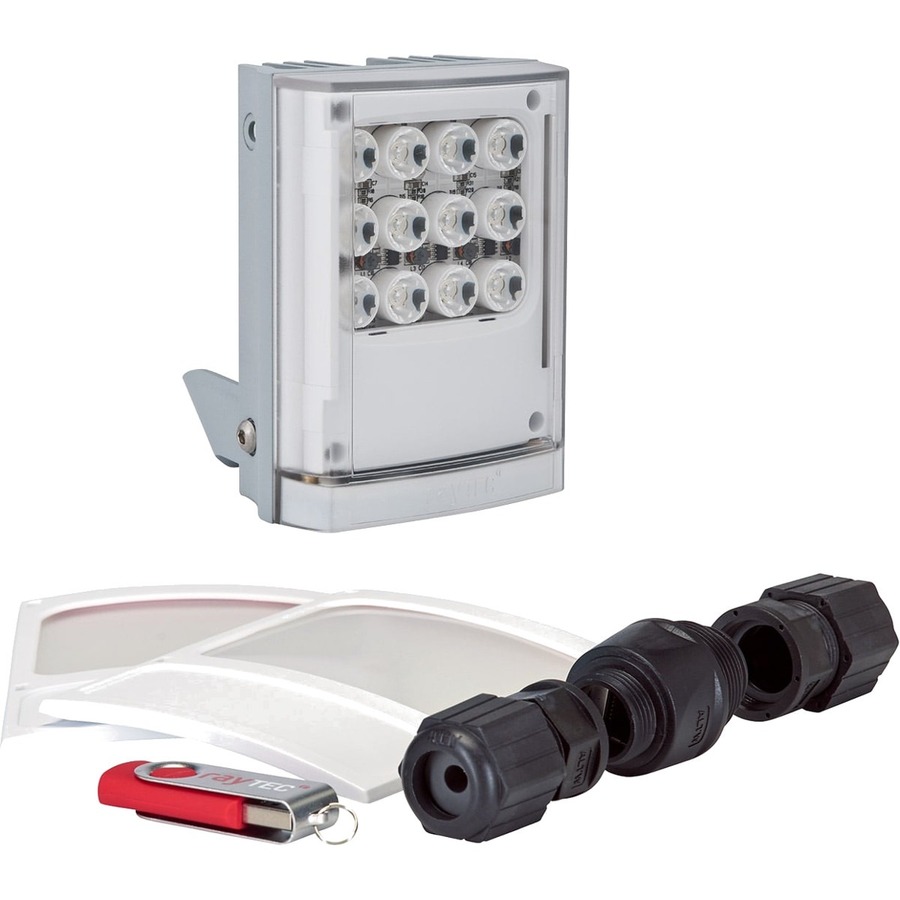

Raytec VAR2-IPPOE-W4-1 Accessory

Raytec  -  Raytec VAR2-IPPoE-w4-1 Medium Range White-Light Network Illuminator - Platinum Elite SMT LED Technology, Interchangeable Lens, Hot-spot Reduction Technology (HRT), Advanced User Defined Settings, Dedicated IP Lighting, PoE, Integrated Web Interface, Programmable, Automatic On/Off - Silver

Need a different version? See all Raytec Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$1,106.94
Raytec VAR2-IPPOE-W4-1 Accessory
Raytec VAR2-IPPOE-W4-1 Accessory
Larger View
Technical Information
Device Supported:
  • Video Surveillance System
  • Network Camera
Features:
  • Platinum Elite SMT LED Technology
  • Interchangeable Lens
  • Hot-spot Reduction Technology (HRT)
  • Advanced User Defined Settings
  • Dedicated IP Lighting
  • PoE
  • Integrated Web Interface
  • Programmable
  • Automatic On/Off
Physical Characteristics
Product Color:
Silver
Height:
5"
Width:
4"
Depth:
2.5"
Weight (Approximate):
2.10 lb
Miscellaneous
Additional Information:
Illuminator:
  • Total Lumens 1863lm per luminaire
  • Max Distance 110m (361ft)
  • Angle Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50°
  • Input PoE+ IEEE 802.3at or 24V DC
  • Consumption 25W
  • Data Input Cat 5 Cable
  • Beam Shape Elliptical with HRT (Hot-spot Reduction Technology
  • Number of LEDs 12
  • Wavelength White-Light
  • Colour Temp 6000K~
  • Colour reproduction Index >70
  • Temperature Range -50° to +50°C (-58 to 122°F)
  • Cable Length 2 x 2.5m
  • Minimum System Requirements PC running Windows 7 with IE8 and network access.
Integrated Command and Control Technology:

Hardware Features:
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • External telemetry input
Quick Access Software Features (provided as standard via integrated web interface):
  • Individual or group control (Groups up to 16 units)
  • Power On/Off
  • Power control: 20-100%
  • Boost: 120% power for 10 seconds
  • Deterrent feature with selectable patterns and speeds
Advanced User Defined Software Features: (provided as standard via integrated web interface)
  • Timer functions
  • Soft start turn on
  • 3 x deterrent patterns
  • 3 x deterrent speeds
  • Selectable external telemetry input: volt - free or TTL
  • Photocell sensitivity trigger level
  • Assign illuminator to group for collective control
  • Administrator and user access levels
  • Password Protection: create user and administrator passwords
  • Assign name, group name and IP address
  • Restore factory defaults
  • Restart/reboot
  • Software upgrade
  • Standard and advanced diagnostics
  • Supported protocols include HTTP, Local and VMS operating modes (including combinations)
  • Ping command functionality
System Integration (Application Programming Interface):
  • API for integration into 3rd party platforms
  • API for integration into network devices via HTTP commands
Certifications & Standards:
IP66
Country of Origin:
United Kingdom
Item Numbers
UNSPSC: 46111703
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Raytec VAR2-IPPOE-W4-1 Accessory is also known as RAY-VAR2IPPOEW41
