rf IDEAS RDR-6081AK9 Access Control Reader

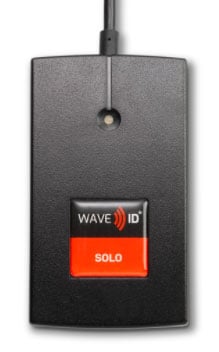

rf IDEAS WAVE ID Solo Keystroke (125 kHz)  -  Access Control Readers, rf IDEAS WAVE ID Solo Keystroke (125 kHz), HID Prox Black 5v USB pwr tap RS-232 Reader
  • With its convenient to use technology as well as the user-friendly operational capability, this Card Reader Access Device provides optimal card reading functionality productivity
  • Get excellent performance without compromising quality, durability for proximity reading distance
  • Designed to be used as a desktop device
Read More
Add to Quote
$259.09
In Stock
rf IDEAS WAVE ID Solo Access Control Reader Model Overview
Customers that want to use their existing card system for uses other than building access can benefit from the rf IDEAS WAVE ID Solo read-only readers. On devices such as printers, healthcare technologies, process controllers, autonomous robots, and more, the WAVE ID Solo readers provide exceptional protection while maximizing security. The rf IDEAS WAVE ID Solo connects with all major operating systems, applications, and embedded controllers and provides plug-and-play capability with proximity and contactless smart cards. Most contactless smart cards are compatible with the 13.56 MHz model, and the 125 kHz proximity model offers error-free identification for approximately 300 million physical access cards in use around the world. Time and attendance, training meetings, and visitor control are all made easier using rf IDEAS WAVE ID Solo readers.
rf IDEAS RDR-6081AK9 Access Control Reader Overview

RF IDeas pcProx 125 kHz proximity card readers are designed for customers seeking to leverage their existing card system for applications beyond physical security. Engineered to work with nearly all proximity technologies, pcProx 125 kHz readers provide error-free identification for over 300 million physical access proximity cards worldwide. Featuring plug-n-play functionality, no required software, and embedded configurable flash memory, the reader is ready to integrate with nearly all operating systems, applications, and embedded controllers.

Technical Information
Identification Method:
Proximity
Operating Range:
3"
Controls/Indicators
Indicators & Controls:
  • Tri-State LED
  • Bbeeper
Interfaces/Ports
Serial:
Yes
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
0.6"
Width:
2"
Depth:
3.4"
Weight (Approximate):
4 oz
Miscellaneous
Additional Information:
  • Transmit frequency: 125 kHz
  • Operating temperature range: -22° to 150°F (-30° to 65°C)
  • Operating humidity range: 5% to 95% relative humidity, non-condensing
  • Storage temperature range: -40° to 185°F (-40° to 85°C)
  • Interface: RS-232 DB9 Connector or USB or Ethernet
  • Ports/Styles: USB, USB Dongle Reader, RS-232, PCMCIA, Ethernet, Keyboard, OEM bare board
Certifications & Standards:
  • FCC
  • CE Mark
  • C-Tic
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 46171600, 46171619
