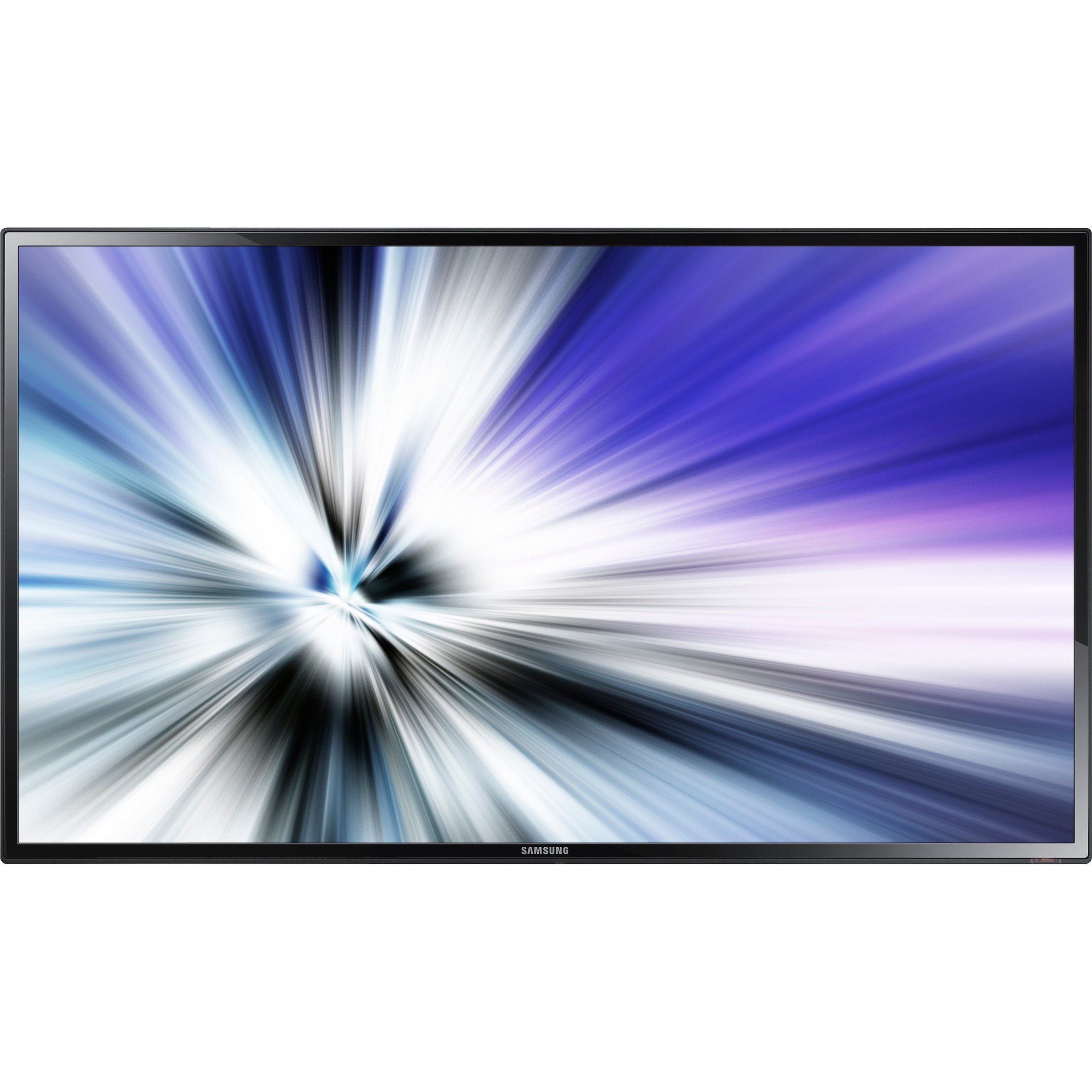

Samsung LH46MECPLGA/ZA Digital Signage Display

The Samsung LH46MECPLGA/ZA Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Samsung - Samsung ME46C - ME-C Series 46" Edge-Lit LED Display - 46" LCD Cortex A9 1 GHz - 1 GB DDR3 SDRAM - 1920 x 1080 - Edge LED - 450 Nit - HDMI - USB - DVI - SerialEthernet

Cortex A9 1 GHz processor executes heavy and power-hungry applications seamlessly with efficient-power
Experience luminescent visual images with LCD display
Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
Enjoy remarkable picture quality at a low cost with Edge LED technology
Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images

Need a different version? See all Samsung Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Samsung LH46MECPLGA/ZA Digital Signage Display

Overview

Samsung Parts Accessory Model Overview

Products and parts from Samsung.

Samsung LH46MECPLGA/ZA Digital Signage Display Overview

Samsung's ME-C Series edge-lit, ultra-slim HD LED commercial displays provide exceptional looking content for businesses. The slim bezel design and 1920 x 1080p full HD resolution with high brightness and contrast on the 46" screen deliver maximum impact messaging. An optional touch overlay offers an interactive experience. And compliance with SMART Signage Platform lowers total cost of ownership.

Detailed Specs

Technical Information

Features:

TV Tuner
Ultra Slim
Media Player
Lamp Error Detection
Temperature Sensor
Plug and Play
Picture by Picture (PbP)
Picture in Picture
Video Wall
Button Lock
Smart Scheduling

Processor & Chipset

Processor Type:

Cortex A9

Processor Speed:

1 GHz

L2 Cache:

512 KB

Memory

Standard Memory:

1 GB

Memory Technology:

DDR3 SDRAM

Display & Graphics

Screen Size:

46"

Display Screen Type:

LCD

Display Resolution:

1920 x 1080

Response Time:

8 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

Edge LED

HDCP Supported:

Yes


Image Formats:

JPEG
PNG

Audio

Audio Formats:

AC3

Sound System:

DTS

Video

Video Formats:

MPEG-1
MPEG-2
H.264/MPEG-4 AVC
VC-1
MPEG

Scan Format:

1080p

Standard Refresh Rate:

60 Hz

Dynamic Contrast Ratio:

5,000:1

Brightness:

450 Nit

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Interfaces/Ports

USB:

Yes

USB Standard:

USB 2.0

DVI:

Yes

VGA:

Yes

HDMI:

Yes

Component Video:

Yes

Composite Video:

Yes

DisplayPort:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Serial:

Yes

Software

Operating System:

Linux

Power Description

Input Voltage:

120 V AC
230 V AC

Power Consumption:

121 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

400 x 400

Height:

20.2 ft

Width:

34.7 ft

Depth:

11.8"

Weight (Approximate):

28.88 lb

Miscellaneous

Package Contents:

ME46C - ME-C Series 46" Edge-Lit LED Display
Quick Setup Guide
Warranty Card
Application CD-ROM
D-Sub Cable
Power Cable
Remote Control
Batteries

Certifications & Standards:

EMC:

FCC (USA.): FCC Part 15, Subpart B, Class A
CE (Europe): EN55022, EN55024
VCCI (Japan): V-3 (CISPR22)
KCC (Korea): KN22, KN24
BSMI (Taiwan): CNS13438 (CISPR22)
C-Tick (Australia): AS / NZS3548 (CISPR22)
CCC (China)

Security:

cUL (USA and Canada.): UL60065
TUV (Germany): EN60065
CB (Europe): IEC60065 / EN60065
EK (Korea): K60065, CCC (China): GB8898
PSB (Singapore): IEC60065
GOST (Russia): IEC60065, EN55022
SIQ (Slovenia): IEC60065, EN55022
PCBC (Poland): IEC60065, EN55022
NOM (Mexico): NOM-001-SCFI-1993
IRAM (Argentina) IRAM
SASO (Saudi Arabia ): IEC60065

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

ENERGY STAR 6.0

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211902
