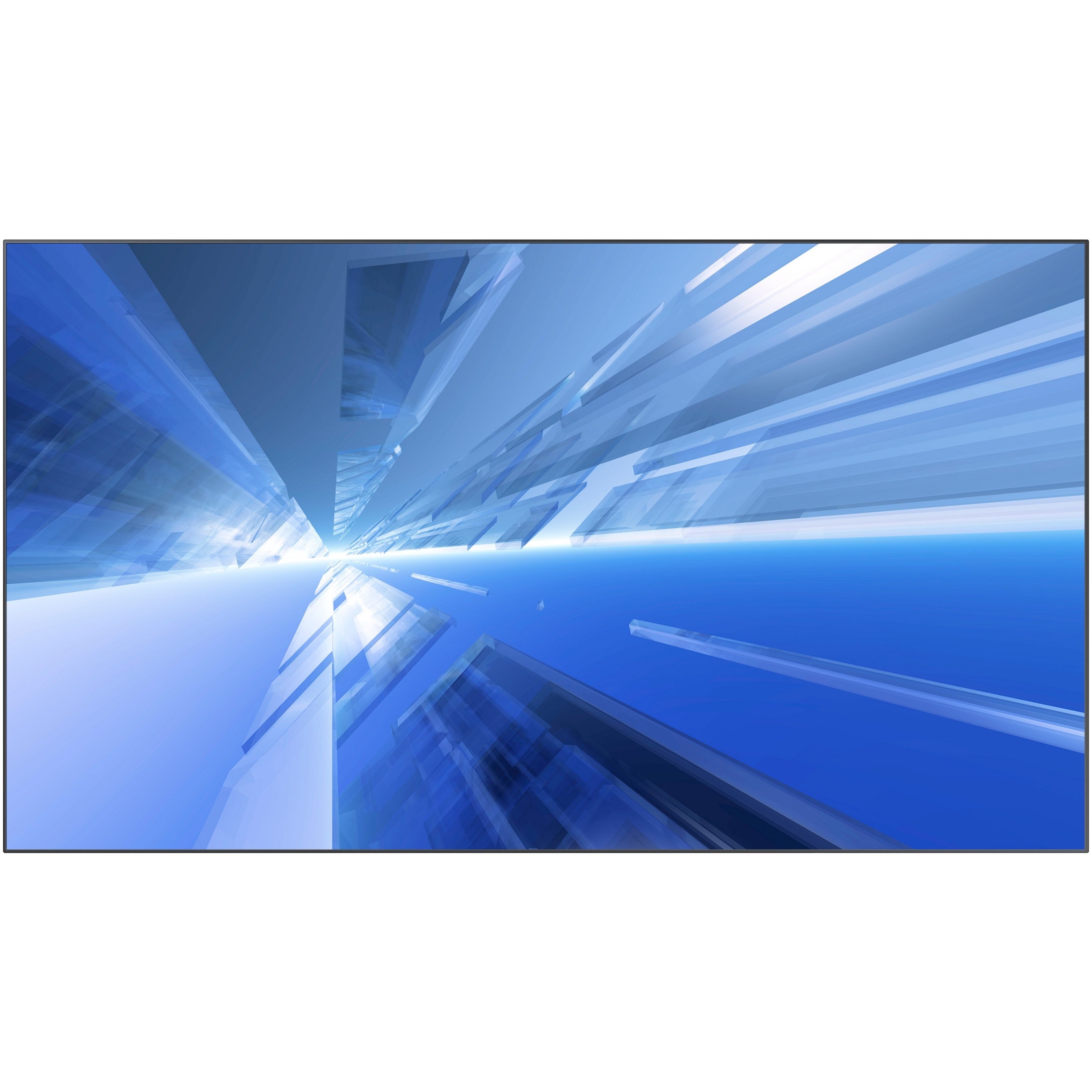

Samsung LH46UDCPLBB/ZA Digital Signage Display

The Samsung LH46UDCPLBB/ZA Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Samsung - Samsung UD46C - UD-C Series 46" Direct-Lit LED Display - 46" LCD - ARM Cortex A9 1 GHz - 1 GB DDR3 SDRAM - 1920 x 1080 - Direct LED - 700 Nit - 1080p - HDMI - USB - DVI - SerialEthernet - Black

Digital Signage Display - Ideal for rack, passageway, booth or display counter
Cortex A9 1 GHz processor executes heavy and power-hungry applications seamlessly with efficient-power
Experience luminescent visual images with LCD display
Features full 1920 x 1080 HD resolution enabling sharp and clear images
Direct LED backlight technology for a consistent picture quality from corner to corner
Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images

Need a different version? See all Samsung Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Samsung LH46UDCPLBB/ZA Digital Signage Display

Overview

Samsung Parts Accessory Model Overview

Products and parts from Samsung.

Samsung LH46UDCPLBB/ZA Digital Signage Display Overview

Advanced Color Calibration

UD-C Series displays are factory tuned for Brightness, Color Temperature and Gamma. They deliver optimal uniformity and impressive images right out of the box.

Advanced Color Management

Fine-tune images through Samsung's new Advanced Color Management solution. A user-friendly interface makes detailed color adjustments simple.

DisplayPort 1.2

This digital loop-out feature lets you easily share content with multiple screens while still achieving ultra high-definition resolution. It's an easy and cost-effective way to connect multiple displays.

Detailed Specs

Technical Information

Features:

Progressive Scan
Ambient Light Sensor
Auto Power & Source Recovery
Lamp Error Detection
Anti-retention
Temperature Sensor
Plug and Play
Picture in Picture
Picture by Picture (PbP)
Video Wall
Pivot Display
Image Rotation
Button Lock
Smart Scheduling
Media Player

Processor & Chipset

Processor Manufacturer:

ARM

Processor Type:

Cortex A9

Processor Speed:

1 GHz

Memory

Standard Memory:

1 GB

Memory Technology:

DDR3 SDRAM

Display & Graphics

Screen Size:

46"

Display Screen Type:

LCD

Display Resolution:

1920 x 1080

Graphics Modes:

Full HD

Response Time:

8 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

Direct LED

HDCP Supported:

Yes


Image Formats:

JPEG
PNG

Audio

Audio Formats:

AC3

Sound System:

DTS

Video

Video Formats:

MPEG-1
MPEG-2
H.264/MPEG-4 AVC
VC-1
MPEG

Scan Format:

1080p

Standard Refresh Rate:

60 Hz

Dynamic Contrast Ratio:

3,500:1

Brightness:

700 Nit

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Interfaces/Ports

USB:

Yes

USB Standard:

USB 2.0

DVI:

Yes

VGA:

Yes

HDMI:

Yes

Component Video:

Yes

Composite Video:

Yes

DisplayPort:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Serial:

Yes

Software

Operating System:

Linux

Power Description

Input Voltage:

120 V AC
230 V AC

Power Consumption:

165 W

Physical Characteristics

Color:

Black

VESA Mount Compatible:

Yes

VESA Mount Standard:

600 x 400

Height:

22.8"

Width:

40.3"

Depth:

3.8"

Weight (Approximate):

39.68 lb

Miscellaneous

Certifications & Standards:

EMC:

FCC (USA): FCC Part 15, subpart B Class B
CE (Europe): EN55022, EN55024
VCCI (Japan): V-3 (CISPR22)
KCC (Korea): KN22, KN24
BSMI (Taiwan): CNS13438 (CISPR22)
C-Tick (Australia) AS / NZS3548 (CISPR22)
CCC (China): GB 9254-2008, GB 17,625, 1-2003

Security:

UL (USA): UL 60950-1
CSA (Canada): CSA C22.2 No. 60950-1
TUV (Germany): EN60950-1
NEMKO (Norway): EN60950-1
KC (Korea): K60950-1
CCC (China): GB 4943-2001
PSB (Singapore): IEC60950-1
GOST (Russia): IEC60950-1, EN55022
SIQ (Slovenia): IEC60950-1, EN55022
PCBC (Poland): IEC60590-1, EN55022
NOM (Mexico): NOM-019-SCFI-1993
IRAM (Argentina): IEC60950-1
SASO (Saudi Arabia): IEC60950-1

Environmentally Friendly:

Yes

Item Numbers

GTIN: 0887276025544

UPC: 887276025544

EAN: 0887276025544

UNSPSC: 43211902
