SATO W00613031 Barcode Label Printer

Name: SATO W00613031 Barcode Label Printer
Brand: SATO
SKU: 3242
Price: 2621.250000 USD
Availability: Discontinued

A newer version of this item is available.
It is replaced by the SATO WWCLPB001 Barcode Label Printer.

SATO CL612e - Sato CL612e Thermal Label Printer - 305 dpi - Serial

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Serial (RS-232)

Print Resolution

305 dpi

Max Print Width

7 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
Delivers high-speed, hassle-free labeling solution for your business needs

Need a different version? See all SATO CL612e Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Larger View

Overview

Full specifications (PDF)

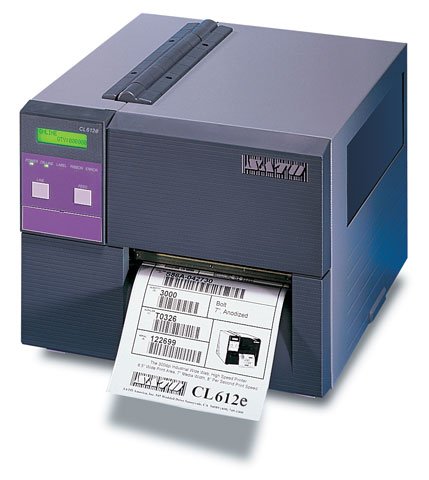

SATO CL612e Barcode Label Printer Model Overview

The CL612e printer deliver performance at an affordable price! The CL612e is an advanced performance, high value printer that is truly a SATO through and through. The CL612e features a 32-bit, high speed RISC processor for maximum performance. It also includes the exclusive SATO printhead control feature, which constantly monitors printhead conditions and automatically adjust print energy for optimum and consistent print quality. The CL612e prints labels up to 6.5" wide at 305 dpi all at speeds of up 8 inches per second.

SATO W00613031 Barcode Label Printer Overview

For advanced technology and high-speed performance, the CL612e printer had no match in the industry. Built in the tradition of SATO's rugged dependability, delivering high-quality images at high speeds.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution:

305 dpi

Maximum Print Width:

6.50"

Barcode Symbology Supported:

UPC-A
UCP-E
EAN-8
EAN-13
Code 39
Code 93
Code 128
Codabar
MSI
Bookland
Industrial 2 of 5
Interleaved 2 of 5
Matrix 25
POSTNET
UCC/EAN 128
PDF-417
Micro PDF
Truncated PDF
Maxi Code
Data Matrix
QR Code

Memory

Standard Memory:

16 MB

Flash Memory:

2 MB

Interfaces/Ports

Serial Port:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Roll Paper
Fanfold
Die-cut Label
Plain Paper
Tag Stock

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

8.60"

Maximum Label Width:

Maximum Label Length:

0.78"

Label Core Size:

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

11.7"

Width:

13.8"

Depth:

16.9"

Miscellaneous

Additional Information:

Graphic Support:

.PCX format
.BMP format
SATO Hex/binary format

Flexibility:

Sequential numbering
360° rotation of bar codes and text
Character expansion horizontally and vertically
Form overlay for high-speed editing of complex formats

Platform Supported:

Certifications & Standards:

FCC Class A
UL
CSA

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0883585338290

UPC: 883585338290

EAN: 0883585338290

UNSPSC: 43212108
