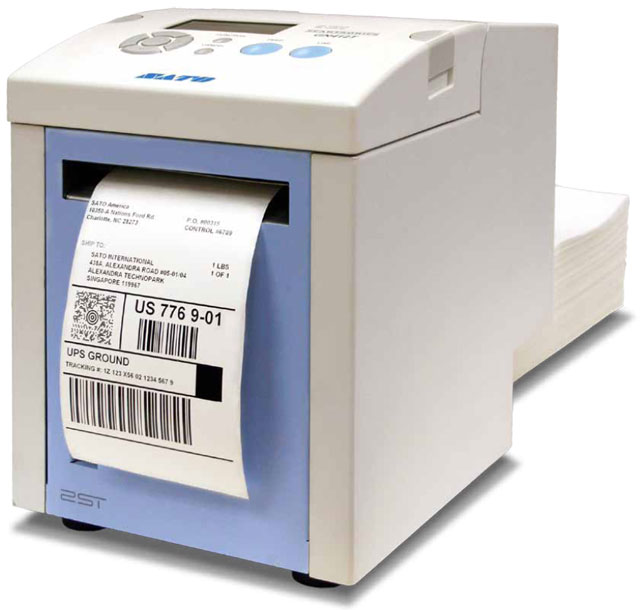

SATO WWGY40101 Barcode Label Printer

SATO GY4 - Specialty Two-Sided Label Printer, SATO GY4, Direct Thermal, 305 dpi, 10 ips, 4.1" Max Print Width, Fanfold, USB/Ethernet/Serial. Includes: Cutter

Printer Type

Desktop

Printing Technology

Direct Thermal

Interface Options

Serial (RS-232), USB, LAN

Print Resolution

305 dpi

Printer Options

Cutter

Max Print Width

4 inch

A smart and inexpensive solution to print temporary documents
Delivers high-speed, hassle-free labeling solution for your business needs
Produce high-quality documents with this monochrome printer to increase your productivity
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port

Need a different version? See all SATO GY412 Barcode Label Printers

Chat Now for Qty Discount

3-year Premium Plus ($154.00)

No, stay at premium support package

Add to Quote

$4,946.25

Overview

Full specifications (PDF)

SATO GY412 Barcode Label Printer Model Overview

A direct thermal printer that simultaneously prints on both sides of a label; the printer has two thermal printheads. The thermal label media is coated on both sides using thermal technology.

Key Features

Improved throughput over single sided printer
Lower total cost of operation
Eliminates the need for separate packing slip and other printing devices enhances pick pack and ship applications
Reduces errors
Positive environmental impact
SZPL® Emulation (Optional - ask your integrator for details)

Advanced “GREEN SOLUTION” technologies are applied to this direct thermal printer that simultaneously prints on specially designed labels using 2 thermal print heads. Combinations to Utilize Two-Sided Combinations:

Shipping + Return Label
Shipping Label + Packslip
Shipping Label + Invoice
Shipping Label + Content Label/Packslip
Shipping Label + Customer Communication or Marketing

Efficient

Environmentally Friendly
Improved Throughput Over Single Sided Printer
Savings in Consumables and Operating Costs
Ability to Eliminate Pre-Printed Information
Lower Total Cost of Operation

Effective

Provides Streamlined B2C and B2B Customer Communication Processes
Print On Demand Surveys, Coupons, Pack Slips, Warranties & Return Policies
Eliminates the Need for Separate Packing Slip and Other Printing Devices
Enhances Pick Pack and Ship Applications, Reducing Errors

Sustainable

Positive Environmental Impact
Reduces Land Fill Waste and Associated Expenses
Two Sided Printing Eliminates the Need for Additional Printers

Applications:

Case/Carton Shipping & Logistics
Consumer Transaction Receipts (lay-away)
Event Registration and Name Badge Labeling
Online Order Fulfillment Centers
Pick Pack Ship Systems
Product & Service Information
Product Cooking / Preparation Instructions
Product Ingredient
Product Nutritional Information
Product and Service Offers
Rental Car Ticketing
Return Policy / Warranty Information
Satisfaction Surveys
Seasonal Games
Special Offers & Promotions

SATO WWGY40101 Barcode Label Printer Overview

GY412 - SATO's new specialty series of printers

Advanced "GREEN SOLUTION" technologies are applied to this direct thermal printer that simultaneously prints on specially designed labels using 2 thermal print heads.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution:

305 dpi

Maximum Print Width:

4.09"

Barcode Symbology Supported:

UPC-A
UPC-E
UCC/EAN 128
Interleaved 2 of 5
Code 39
Code 128
EAN-8
EAN-13
Code 93
RSS-14
POSTNET
NW-7
Matrix 2 of 5
MSI
Bookland
Data Matrix
PDF-417
Macro PDF
Maxi Code
Micro PDF-417
Composite Symbology
QR Code

Application/Usage:

Desktop

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

16 MB

Memory Card Slot:

Yes

Memory Card Supported:

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Cutter

Cutter:

Yes

Media Types & Handling

Media Type:

Die-cut Label
Gap
Fanfold

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

13 mil

Maximum Label Width:

5.16"

Maximum Label Length:

11.80"

Fonts & Emulation

Language Emulation:

SBPL

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

11.1"

Width:

8.4"

Depth:

11.9"

Weight (Approximate):

30 lb

Miscellaneous

Platform Supported:

Country of Origin:

Malaysia

Item Numbers

UNSPSC: 45101512
