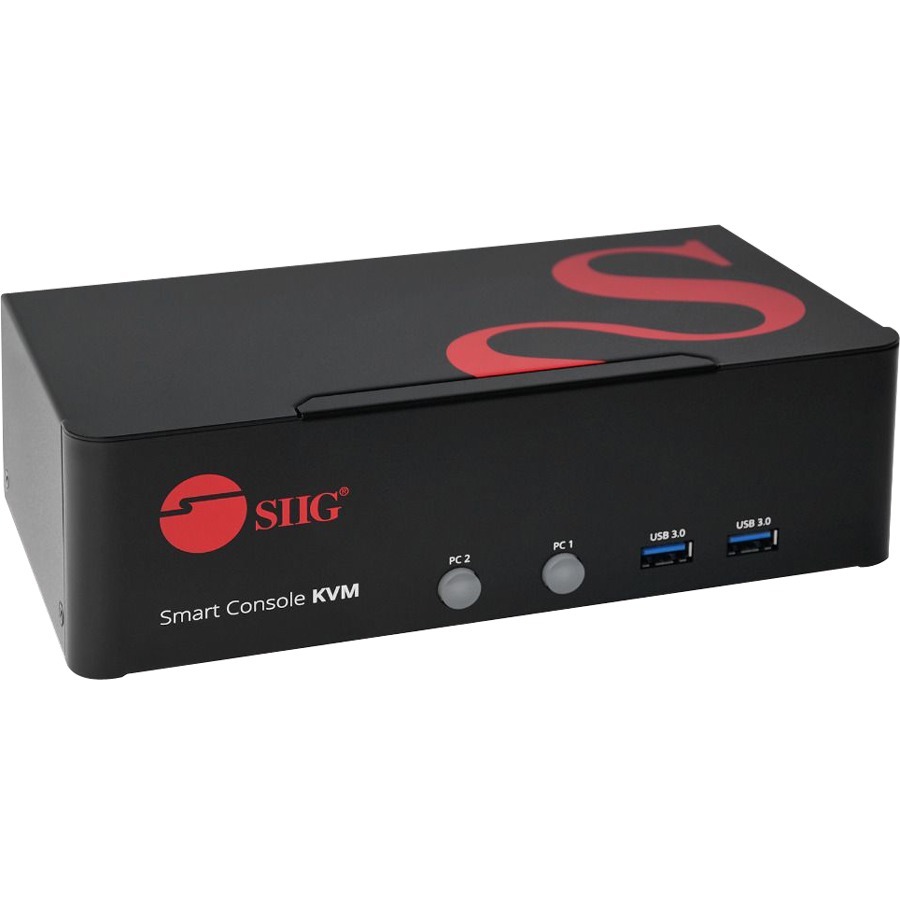

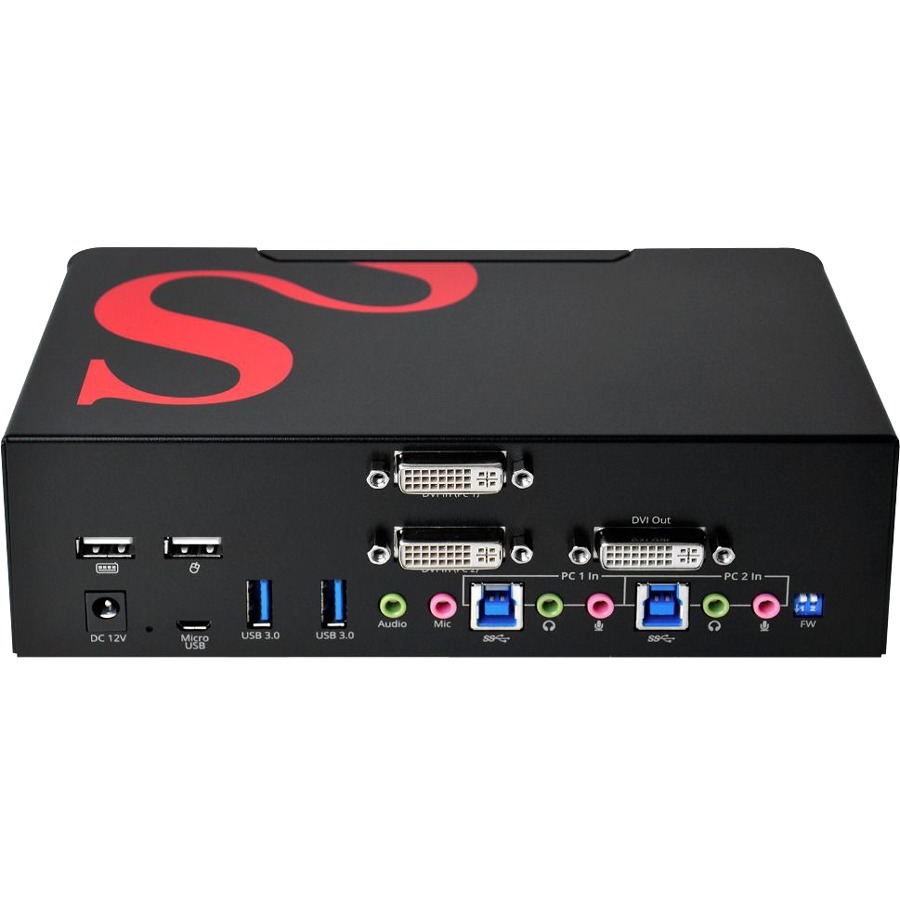

SIIG CE-DV0111-S1 Network Switch

SIIG - SIIG 2-Port DVI Dual-Link Smart Console Switch with USB 3.0 Multi-Media, Dual Link DVI USB KVM Switch with USB 3.0 Hub & Audio, 2 Port Dual Link DVI KVM Switch with Audio/ Hotkey / Manual Switching, 3840 x 2160 30Hz, 4K 30Hz, USB-A 5Gbps, Metal housing, ESD protection, OS independent works with Dell Lenovo HP, 3 year warranty, KVM Cable included, TAA Compliant

Quickly switches between sources without physical access
Switch between 2 computers and 1 local users
Up to 3840 x 2400 video resolution
Unhindered connections with USB-compatible devices are ensured by the built-in USB port.

Need a different version? See all SIIG Parts Products

Chat Now for Qty Discount

Add to Quote

$236.51

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

SIIG CE-DV0111-S1 Network Switch Overview

Allows you to control two computers using one keyboard and mouse, DVI-D Dual Link, USB 3.0 ports, microphone input, and stereo audio output

Control two computers with DVI-D Dual Link video system via one set of keyboard and mouse
Compatible with DVI-D Dual Link resolutions 2560x1600 @60Hz / 3840x2400@33Hz
Features Auto-EDID detection for easy display detection
Easy system selection via front panel selection button or user programmable keyboard hot-key commands
Comes with 2 USB 1.1 ports for keyboard and mouse connection, and 4 USB 3.0 ports. Connect multiple USB peripherals such as flash drives, printers and more simultaneously
Includes 3.5mm jack for microphone input and stereo speakers/headphones
Auto-scan feature for quick browsing and system monitoring
Firmware upgrade feature via Micro USB port for future compatibility
Plug-n-play, no driver installation

Compatibility Notes:

Not DDM fast switching compliant

Detailed Specs

Technical Information

Number of Computers Supported:

Number of Local Users Supported:

Video

Maximum Video Resolution:

3840 x 2400

Interfaces/Ports

USB:

Yes

DVI:

Yes

Number of USB Ports:

Number of DVI Ports:

Power Description

Input Voltage:

120 V AC
230 V AC

Input Voltage Range:

100V AC to 240V AC

Physical Characteristics

Height:

2.4"

Width:

4.4"

Depth:

Weight (Approximate):

1.83 lb

Miscellaneous

Package Contents:

2-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports
Power Adapter
2 x DVI-D Dual-Link Cable
2 x USB 3.0 AM/BM + MIC + Stereo Cable
User Manual

Additional Information:

System Requirements:

Desktop, laptop, notebook with an available DVI-D Dual-Link and USB 3.0 Type-A port, 3.5mm stereo audio output (optional), and 3.5mm microphone input (optional)
DVI-D display and DVI-D cable
Windows® or Mac® OS

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0662774042923

UPC: 662774042923

EAN: 0662774042923

UNSPSC: 43211601
