SIIG CE-H23311-S1 Network Switch

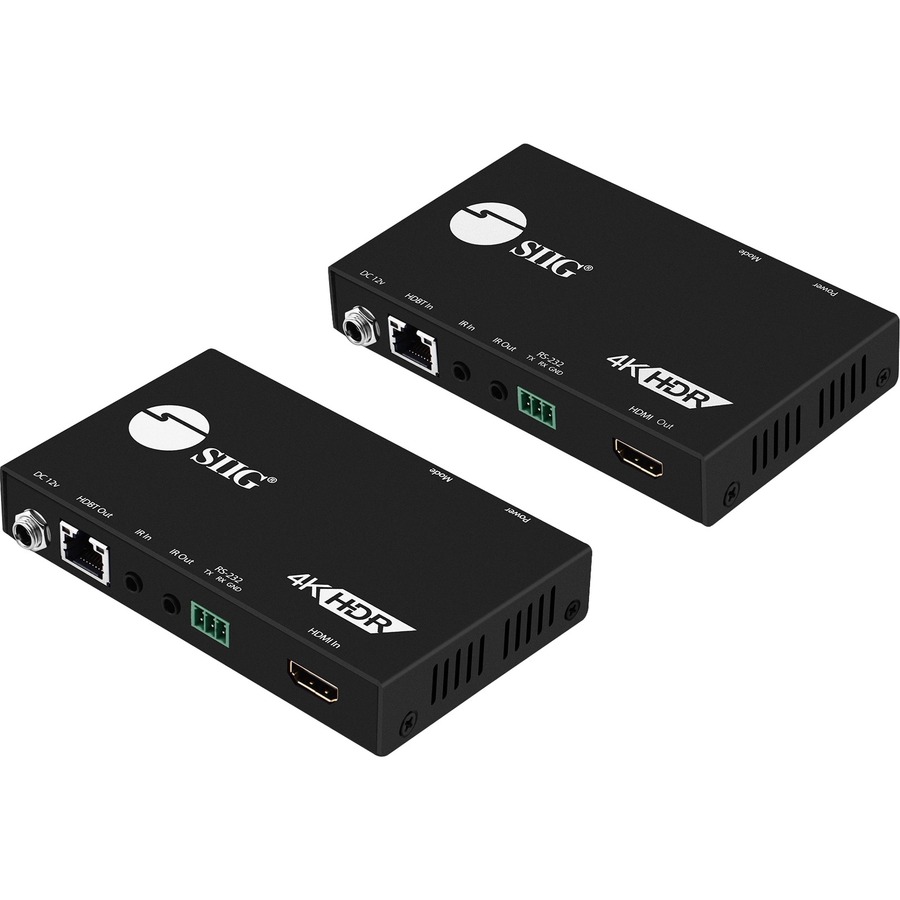

SIIG  -  SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR, 100m, Bi-directional IR Sensors, TAA Compliant
  • Compliant with HDMI 2.0 and HDCP 2.2
  • Supports EDID bypass, CEC, Deep Color 36bit
  • Supports 3840x2160@60Hz 4:4:4 8bit
  • Supports 3840x2160@60Hz HDR10 4:2:0 10bit
  • Video bandwidth up to 18Gbps (600MHz per channel)
  • Video latency: <20µs
  • Auto skew equalization
  • Audio support: DTS-HD Master Audio and Dolby True HD
  • Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
  • Full Duplex RS-232 control up to 115,200 bps through connector
Read More

Need a different version? See all SIIG Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$331.20
In Stock
SIIG CE-H23311-S1 Network Switch
SIIG CE-H23311-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H23311-S1 Network Switch Overview

Extends HDMI audio and video signals, RS232 control, IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

  • Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
  • Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
  • Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
  • Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
  • High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
  • Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
328.08 ft
Video
Graphics Modes:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Transmitter Height:
0.80"
Transmitter Width:
2.80"
Transmitter Depth:
4.70"
Form Factor:
Wall Mountable
Transmitter Weight (Approximate):
9.28 oz
Miscellaneous
Package Contents:
  • 1 x Transmitter (TX)
  • 1 x Receiver (RX)
  • Power Adapter
  • IR Blaster Extension Cable &amp; IR Receiver Extension Cable
  • 4 x Mounting Ears &amp; Screw kit (8+4)
  • User Reference Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0662774041155, 0818215001831
UPC: 662774041155, 818215001831
EAN: 0662774041155, 0818215001831
UNSPSC: 45111815
