SIIG CE-H23F11-S1 Network Switch

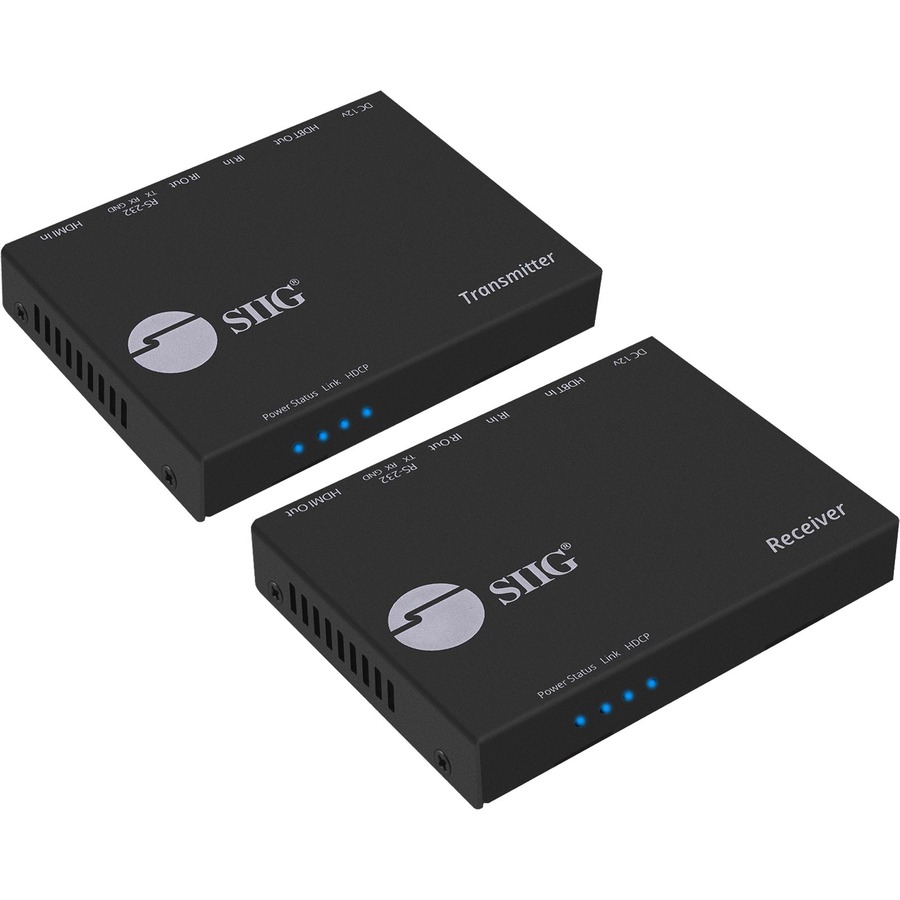

SIIG  -  SIIG 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC, 100m, Extends HDMI 1.4, Distance video 4K30Hz up to 230ft/70m, 1080p60Hz up to 330ft/100m, HDCP 2.2- HDBaseT transmission protocol technology, Supports EDID pass-through / CEC / Bi-directional IR, ESD protection, 7.1 ch audio, Power over Cable, Using only a power adapter, RS-232 control, Metal housing, Wall mountable, TAA compliant, 3 years warranty& Video Signal, TAA Compliant

Need a different version? See all SIIG Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$402.85
SIIG CE-H23F11-S1 Network Switch
SIIG CE-H23F11-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H23F11-S1 Network Switch Overview

Extends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

  • Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840x2160) through a single premium quality CAT5e/6 cable
    Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
  • Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
  • Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit
  • Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side
  • High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
  • Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

More from the Manufacturer

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
328.08 ft
Video
Graphics Modes:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Physical Characteristics
Transmitter Height:
0.83"
Transmitter Width:
2.87"
Transmitter Depth:
4.06"
Form Factor:
Wall Mountable
Transmitter Weight (Approximate):
8 oz
Miscellaneous
Package Contents:
  • 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m
  • Power Adapter
  • IR Blaster Extension Cable & IR Receiver Extension Cable
  • 4 x Mounting Ears
  • 8 x Screw kit
  • 2 x Terminal Block kit
  • User Reference Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0662774041407, 0818213985393, 0818215944626, 0818263604138
UPC: 662774041407, 818213985393, 818215944626, 818263604138
EAN: 0662774041407, 0818213985393, 0818215944626, 0818263604138
UNSPSC: 45111815
